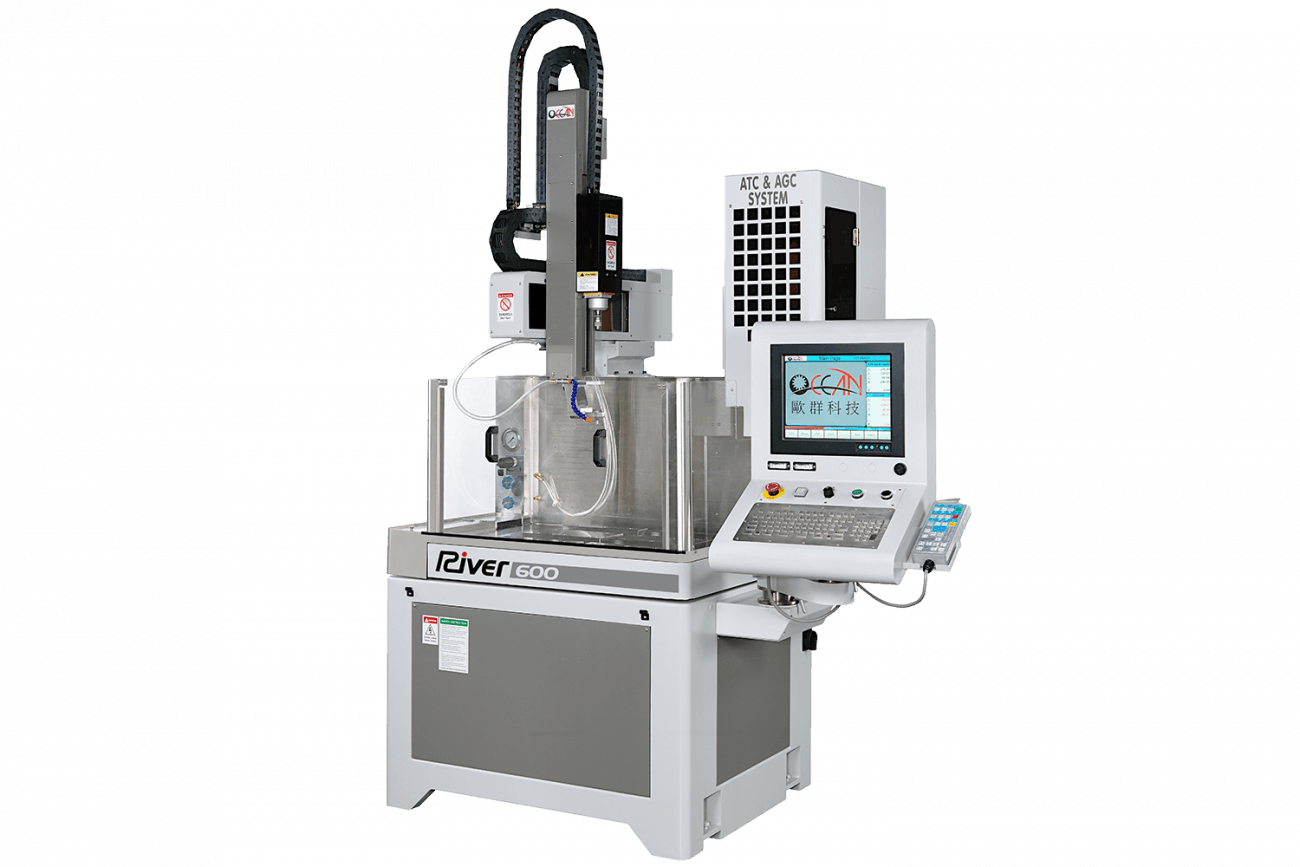

River 600
- 3-Axis Computer Controlled with 4 or 5-Axis Configurations Available
- New HP-1 Generator Provides Higher Speeds and Lower Wear
- 100 Liter Water Dielectric Tank (std.)
- 1 Touch Release Button for Quick Change of Drill Chuck
- Power Backslide (W-Axis)
- Pendant Box for Easy Manual Operation
- High Speed 64 Amp Generator
- E-Learning Software
Request Information
Or call 1-877-668-4262
Product Details
Features & Benefits
- 3-Axis Computer Controlled with 4 or 5-Axis Configurations Available
- New HP-1 Generator Provides Higher Speeds and Lower Wear
- 100 Liter Water Dielectric Tank (std.)
- 1 Touch Release Button for Quick Change of Drill Chuck
- Power Backslide (W-Axis)
- Pendant Box for Easy Manual Operation
- High Speed 64 Amp Generator
- E-Learning Software
Technical Data
- Operation
- CNC Controlled
- X-Axis Travel
- 23.6 (600) in (mm)
- Y-Axis Travel
- 15.8 (400) in (mm)
- Z-Axis Travel
- 15.8 (400) in (mm)
- W-Axis Travel
- 17.7 (450) in (mm)
- Table Dimensions
- 23.6 x 15.8 (600 x 400) in (mm)
- Max. Workpiece Height
- 15.8 (400) in (mm)
- Max. Workpiece Weight
- 1765 (800) lbs (kg)
- Max. Current
- 64 amp.
- Power Capacity
- 3.8 KVA
- Electrode Diameter
- 0.004 - 0.236 (0.1 - 6.0) in (mm)
- Electrode Material
- Brass/Copper
- Machine Weight
- 2000 (1100) lbs (kg)
- Machine Dimensions D x W x H
- 40 x 65 x 77 (1030 x 1630 x 1960) in (mm)
