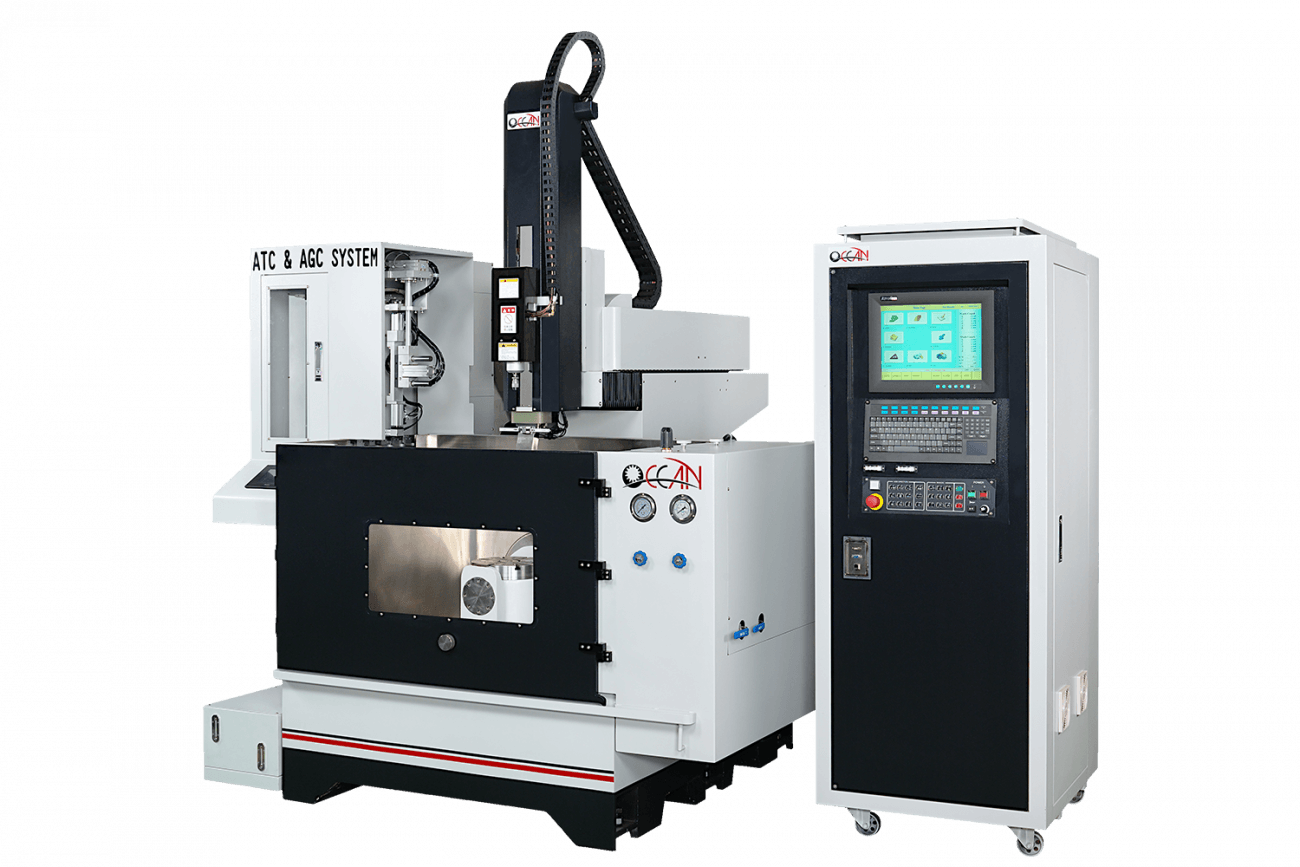

River 700
For customers who require fine finish surface, the RIVER 700 is the first choice. The submerged water tank allows quality and efficient sparking performance even on irregular shaped work pieces. In addition, the travel column structure features constant load on all 3 linear axes, the integrated design is perfectly suitable for mass production of aerospace components, especially the turbine blades in the turbo engine.
Request Information
Or call 1-877-668-4262
Product Details
Features & Benefits
- Built in A/B Axes
- Submerged Work Tank
- ATC & AGC Available
- Uniquely Designed for the Aerospace industry
- Travel Column Design
- Tilt Axis ±110°
- IP68 Compliant
- E-Learning Software
Technical Data
- Operation
- CNC Controlled
- X-Axis Travel
- 27.6 (700) in (mm)
- Y-Axis Travel
- 19.7 (500) in (mm)
- Z-Axis Travel
- 19.7 (500) in (mm)
- W-Axis Travel
- 19.7 (500) in (mm)
- Table Dimensions
- 9.9 x 9.9 (250 x 250) in (mm)
- Max. Workpiece Height
- 13.4 (340) in (mm)
- Max. Workpiece Weight
- 88.2 (40) lbs (kg)
- Max. Current
- 64 amp.
- Power Capacity
- 10 KVA
- Electrode Diameter
- 0.004 - 0.236 (0.1 - 6.0) in (mm)
- Electrode Material
- Brass/Copper
- Machine Weight
- 7716 (3500) lbs (kg)
- Machine Dimensions D x W x H
- 80.7 x 86.6 x 78.7 (2050 x 2200 x 2000) in (mm)
