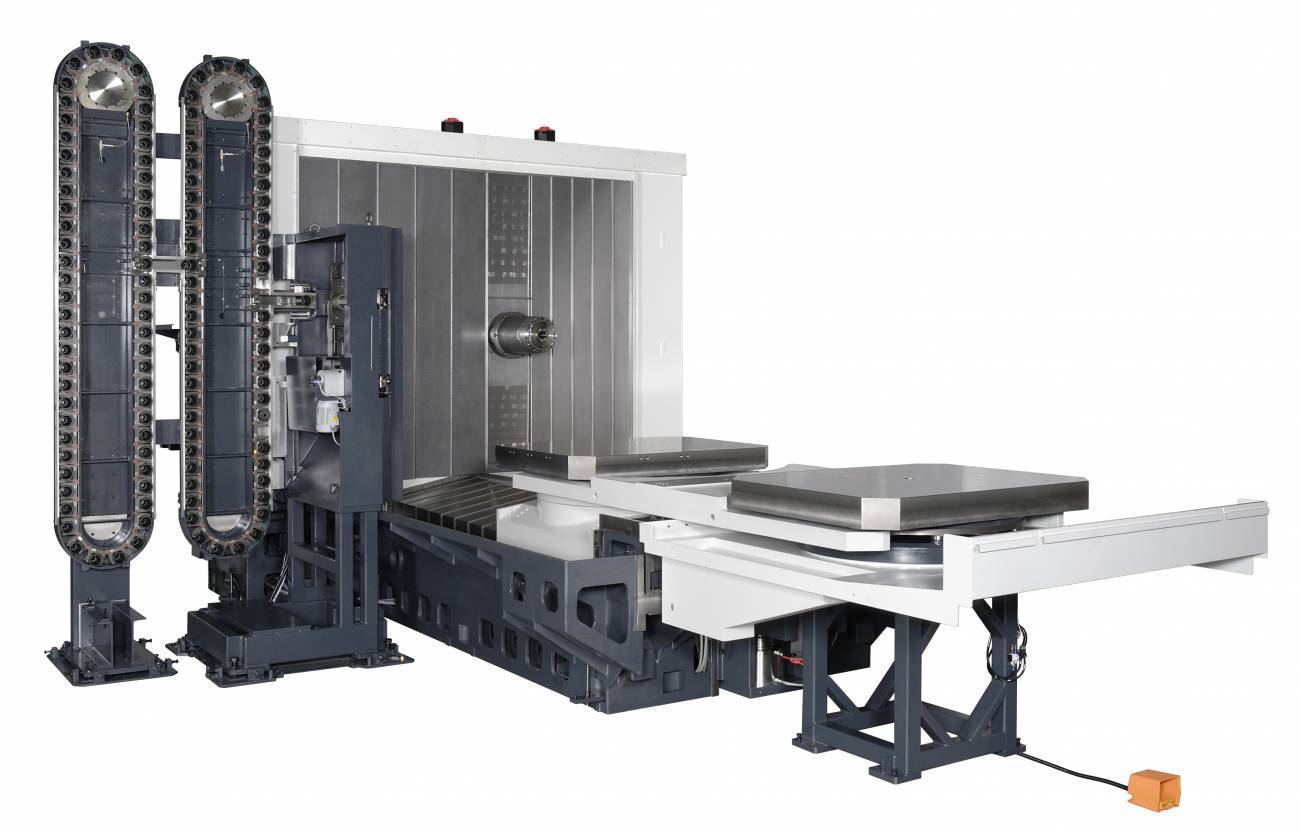

New concepts in high-speed machining offer drastic improvements in speed, rigidity and durability over competing machines. Our HM series offers the fastest and most powerful machines in their class, while providing easy access, maintenance and operation. Heavy duty cutting performance is delivered by incorporating a rigid frame of think box-shaped structure to foundation the large linear roller guides designed for very heavy loads. High-speed rotation APC and ATC by synchronization cam (OKK patent) delivers smooth performance and production efficiency.

Product Details

Features & Benefits

  • Direct-turn APC
  • Heavy load capacity linear roller guides
  • Core chilled pre-tensioned and double-anchored ball screws
  • High load capacity feed motors
  • Space saving design for economical use of floor space

Technical Data


X-Axis Travel
94.5" (2400mm)
Y-Axis Travel
65.0" (1650mm)
Z-Axis Travel
68.9" (1750mm)
Table Top to Spindle Nose
3.9" – 68.8" (100mm - 1750mm)


Table Size
62.99" x 49.2" (1600mm x 1250mm)
Table Load Capacity
11,013 lbs (5000kg)
Max. Workpiece Size
ø 98.4" x 72.8" (ø2500mm x 1850 mm) diameter x height
Table Change Time: Cut to Cut
54.0 sec

Feed Rate

Rapid Traverse Rate (X/Y/Z)
1653 in/min (42 m/min)
Cutting Feed (X/Y/Z)
787 in/min (20 m/min)

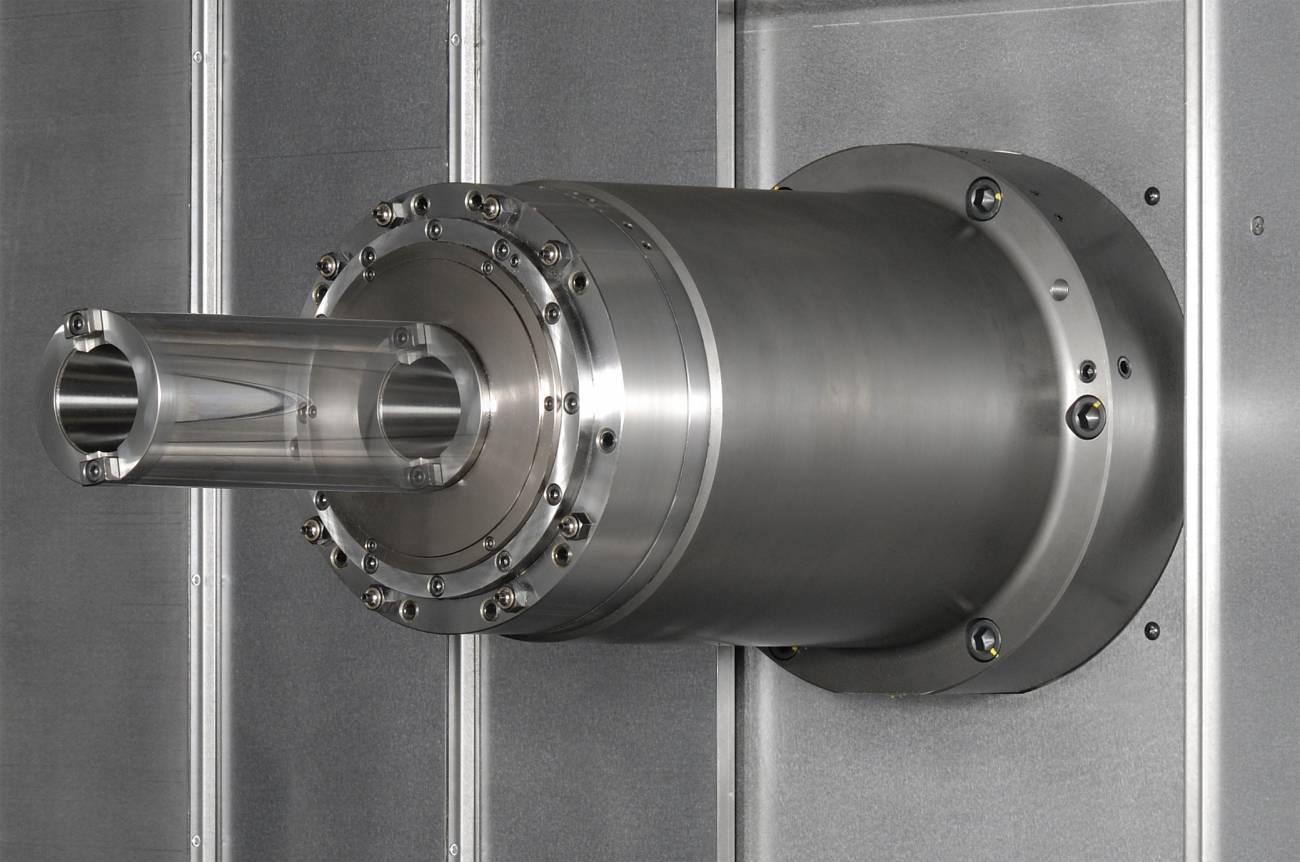

Spindle Power
60/50 HP Three Geared Head Torque:1,616ft-lbs
Spindle Speed
6,000 rpm
Spindle Taper


Standard Number of Tools
116 (OP: 176/236)
Maximum Tool Weight
66 lbs (30 kg)
Maximum Tool Length
23.6" (600 mm)
Maximum Tool Diameter
ø 4.5" (115 mm) / ø 11.81" (300 mm) without tool in adjacent pots
Tool Changing Time: Tool-to-Tool
3.8 sec (Speed is changeable for heavy-weight tools)


Machine Weight
110,132 lbs (50,000 kg)
Machine Control
