OKK
VG5000
*Availability of machines is based on region. Contact your local Methods office to learn more.
The VG5000 is designed for machining hard to cut materials such as stainless steel and titanium alloy. Complete roughing to finishing operations in a single chucking. Responds to all users’ needs and achieves highly efficient and accurate machining through intensive machining even when machining aircraft parts, die components, and so on.
Request Information
Or call 1-877-668-4262
Product Details
Features & Benefits

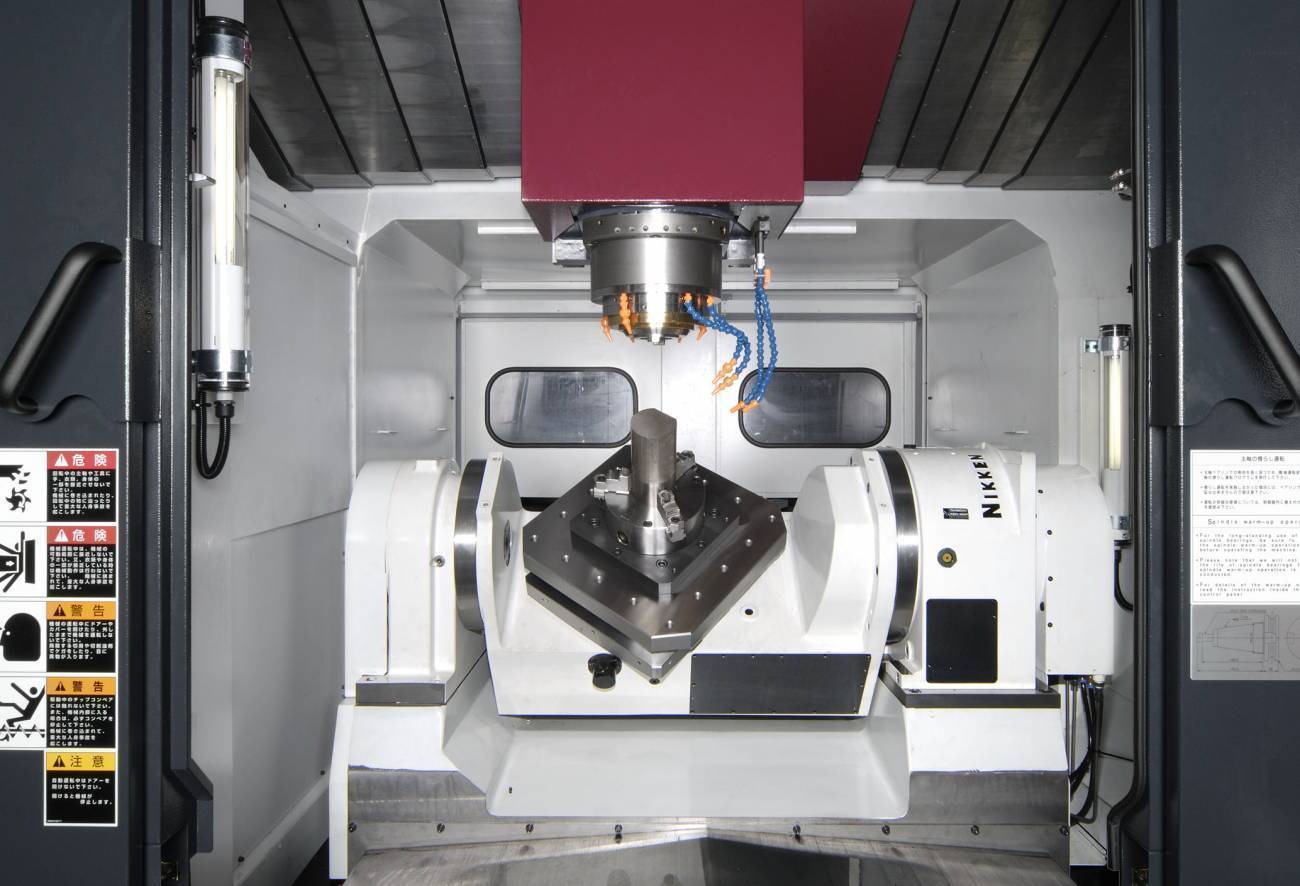

- Tilt and rotary structure built in the table
- Direct-turn APC
- Improved accessibility
- Increased main body rigidity
- Core chilled pre-tensioned and double-anchored ball screws
- Space saving design for economical use of floor space
- Coil-type chip conveyor
Technical Data
Travel
- X-Axis Travel
- 29.9"" (760mm)
- Y-Axis Travel
- 35.4"" (900mm)
- Z-Axis Travel
- 24.0" (610mm)
- A-Axis Travel
- -120° to +30°
- C-Axis Travel
- 360°
- Table Top to Spindle Nose
- 5.5" - 29.5" (140mm - 750mm)
Table
- Table Work Surface Area
- ø 19.7" (500mm)
- Table Load Capacity
- 1323 lbs (600 kg)
Feed Rate
- Rapid Traverse Rate X/Y/Z
- 945 in/min (24 m/min)
- Cutting Feed X/Y/Z
- 945 in/min (24 m/min)
Spindle
- Spindle Power
- 60/35 HP
- Spindle Speed
- 12,000 rpm
- Spindle Taper
- CAT50
Tools
- Standard Number of Tools
- 60 (OP: 116)
- Maximum Tool Weight
- 44 lbs (20kg)
- Maximum Tool Length
- 15.8" (400mm)
- Maximum Tool Diameter
- ø 4.5" (115mm) / ø 9.1" (230mm) without tool in adjacent pots
- Tool Changing Time- Tool to Tool
- 4.5 sec (Speed is changable for heavy-weight tools)
General
- Machine Weight
- 55,100 lbs (25,000 kg)
- Machine Control
- FANUC F31i-B5
