OKK

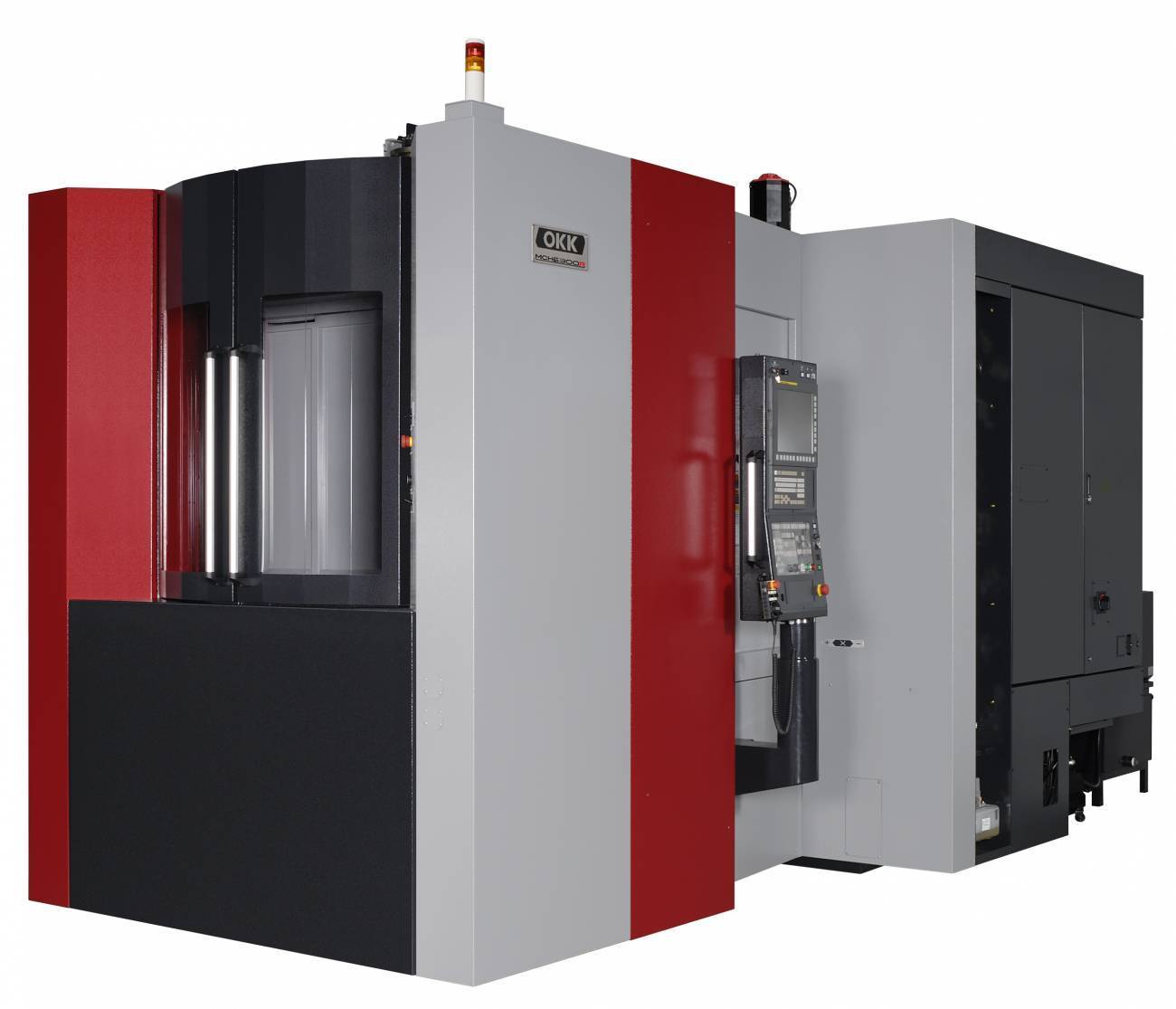

MCH6300R
*Availability of machines is based on region. Contact your local Methods office to learn more.
As with all OKKs we paid special attention to the rigidity of the cast body, built solid and features our massive Box Sliding Ways and large-diameter ball screws for the feed system, allowing the MCH-R Series to easily cut titanium and other exotic materials. All OKK horizontals feature Core chilled pre-tensioned and double-anchored ball screws in order to maintain the high accuracy needed throughout long hours of machining.
Designed For Ultra Heavy-Duty Cutting – With its wide range of rated output, the spindle meets a variety of cutting requirements as well as provides ultra heavy-duty cutting. The whole machine is also engineered into a boxed-shaped, thick-wall design.
Or call 1-877-668-4262
Product Details
Features & Benefits
- Heavy load capacity Box Sliding Ways
- High rigidity column
- Core chilled pre-tensioned and double-anchored ball screws
- High load capacity feed motors
- Space saving design for economical use of floor space
- Dual coil-type chip conveyors
Technical Data
Travel
- X-Axis Travel
- 41.3" (1050mm)
- Y-Axis Travel
- 35.4" (900mm)
- Z-Axis Travel
- 39.4" (1000mm)
- Table Top to Spindle Nose
- 3.2" – 38.6" (80mm - 980mm)
Table
- Table Size
- ø 24.8" (630mm)
- Table Load Capacity
- 3307 lbs (1500kg)
Feed Rate
- Rapid Traverse Rate X/Y/Z
- 1181 in/min (30 m/min)
- Cutting Feed (X/Y/Z)
- 1181 in/min (30 m/min)
Spindle
- Spindle Power
- 30/25 HP Three Geared Head Torque: 922ft-lbs
- Spindle Speed
- 6,000 rpm
- Spindle Taper
- CAT50
Tools
- Standard Number of Tools
- 60 (OP: 116/176/236)
- Maximum Tool Weight
- 66 lbs (30 kg)
- Maximum Tool Length
- 23.6" (600 mm)
- Maximum Tool Diameter
- ø 4.5" (115 mm) / ø 11.8" (300 mm) without tool in adjacent pots
- Tool Changing Time: Cut to Cut
- 6.0 sec (Speed is changeable for heavy-weight tools)
General
- Machine Weight
- 55,000 lbs (25,000 kg)
- Machine Control
- F31i-B5
