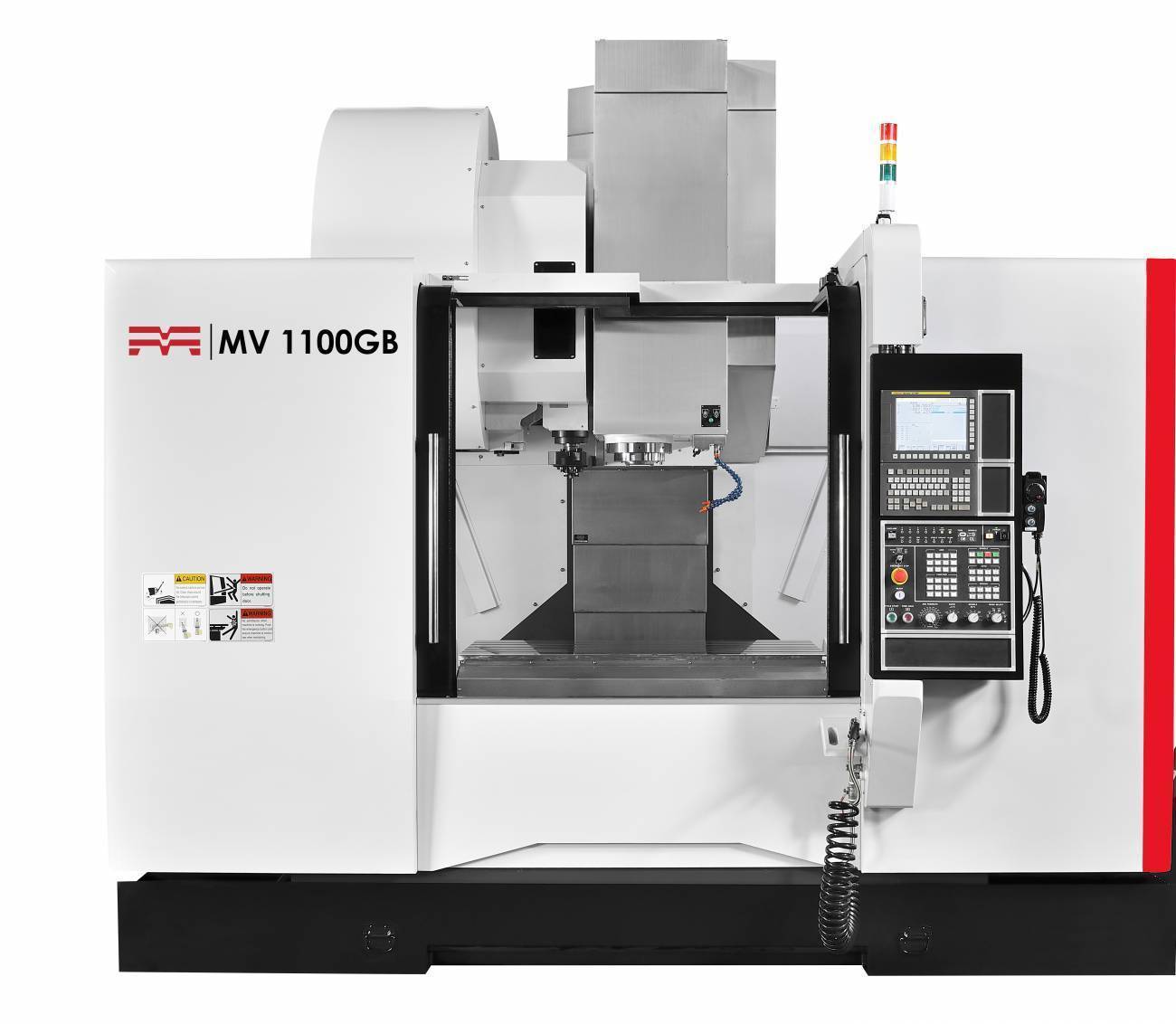

MV 1100GB

Introducing the All-New Methods MV 1100GB 3-Axis Heavy Duty Vertical Machining Center engineered & built to strict Methods specifications and quality standards. This new product line is packed with standard features and benefits that will exceed the expectations of our customers looking for quality, reliability, accuracy and longevity at a competitive price.

Product Details

Features & Benefits

  • Reliable FANUC 0i-MF Control with 10.4” LCD Screen
  • Includes Manual Guide I, AICC II, 2ms BPT, and 200 Block Look Ahead
  • 8,000 RPM Big Plus CAT50 Taper Gear Head Spindle with Air-Oil Lubrication, and Ceramic Bearings,
  • Powerful 359ft-lbs of torque (30 min)
  • Prepped for 1000psi coolant thru spindle
  • Rigid Box-Way Construction in the X, Y, and Z Axes
  • Features 1181 IPM Rapid Rate in the X & Y-Axis and 945 IPM Rapid Rate in the Z-Axis
  • 30 Tool ATC
  • 21,000lbs machine weight
  • Thermal Compensation
  • Spindle Chiller

Technical Data

Travel

X axis Travel
43.3" (1100 mm)
Y axis Travel
24" (610 mm)
Z axis Travel
23.6" (600 mm)

Table

Table Dimensions
51.2" x 23.6" (1300 x 600 mm)
Maximum Load
2205 lbs (1000 kg)
Spindle Nose to Table Surface
4.9” ~ 28.5” (125 mm ~ 725 mm)

Spindle

Spindle Speed
8,000 rpm
Spindle Taper
Big Plus/CAT50
Spindle Power
25 HP
Spindle Torque
359 ft/lb (487 Nm)
Spindle Lube
Oil / Air

Feedrate

X-Axis Rapid Traverse
1181 in/min (30 m/min)
Y-Axis Rapid Traverse
1181 in/min (30 m/min)
Z-Axis Rapid Traverse
945 in/min (24 m/min)

ATC

Maximum Number of Tools
30
Tool-to-Tool Change Time
2.9 sec
Max Diameter
4.7” (120 mm)
Max Weight
33 lbs (15 kg)
Max Length
12” (305 mm)

Dimensions/ Weight/ Capacities

Weight
21,000 lbs (9500 kg)
Coolant Tank Capacity
109.9 gal (416 L)
Control
FANUC 0i-MF
