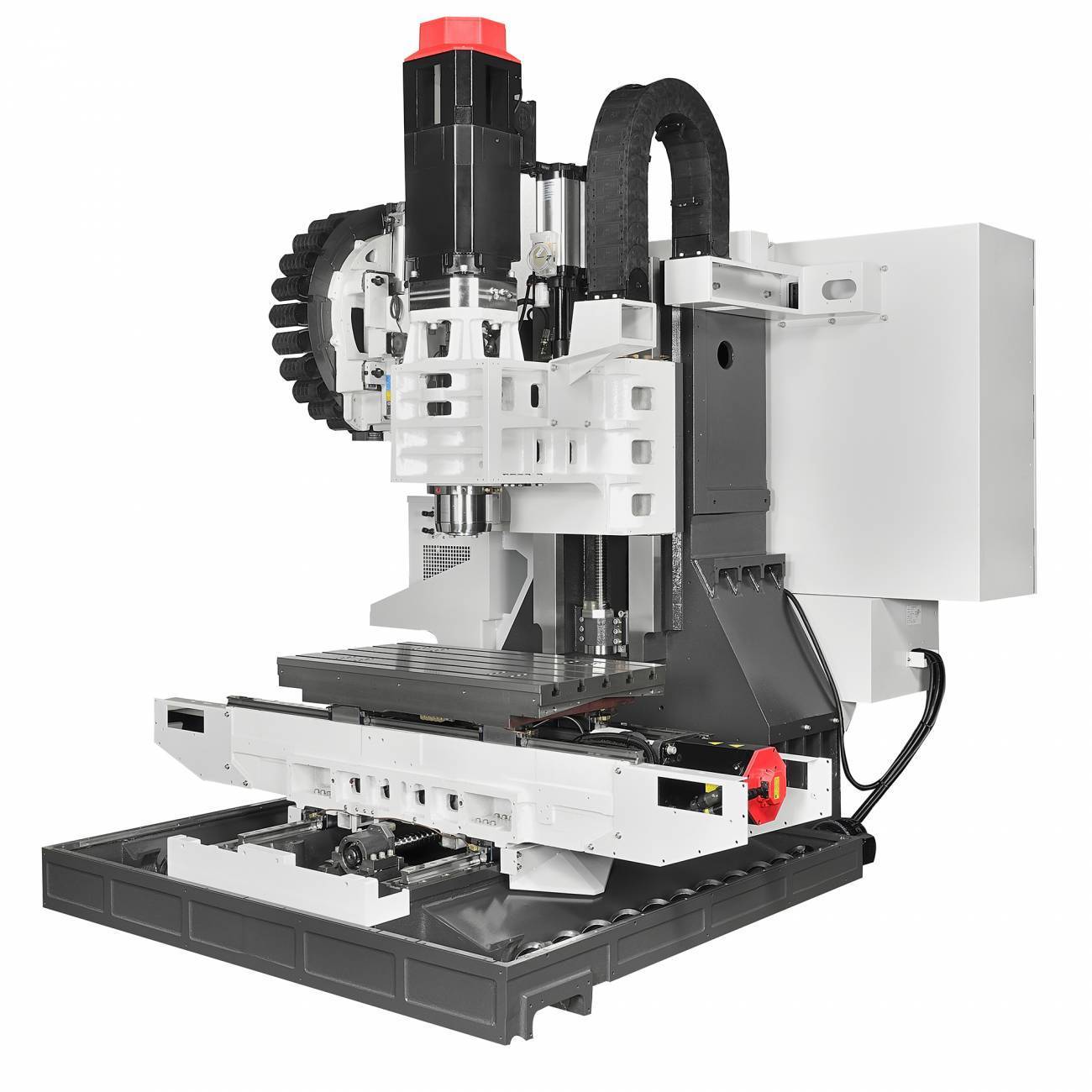

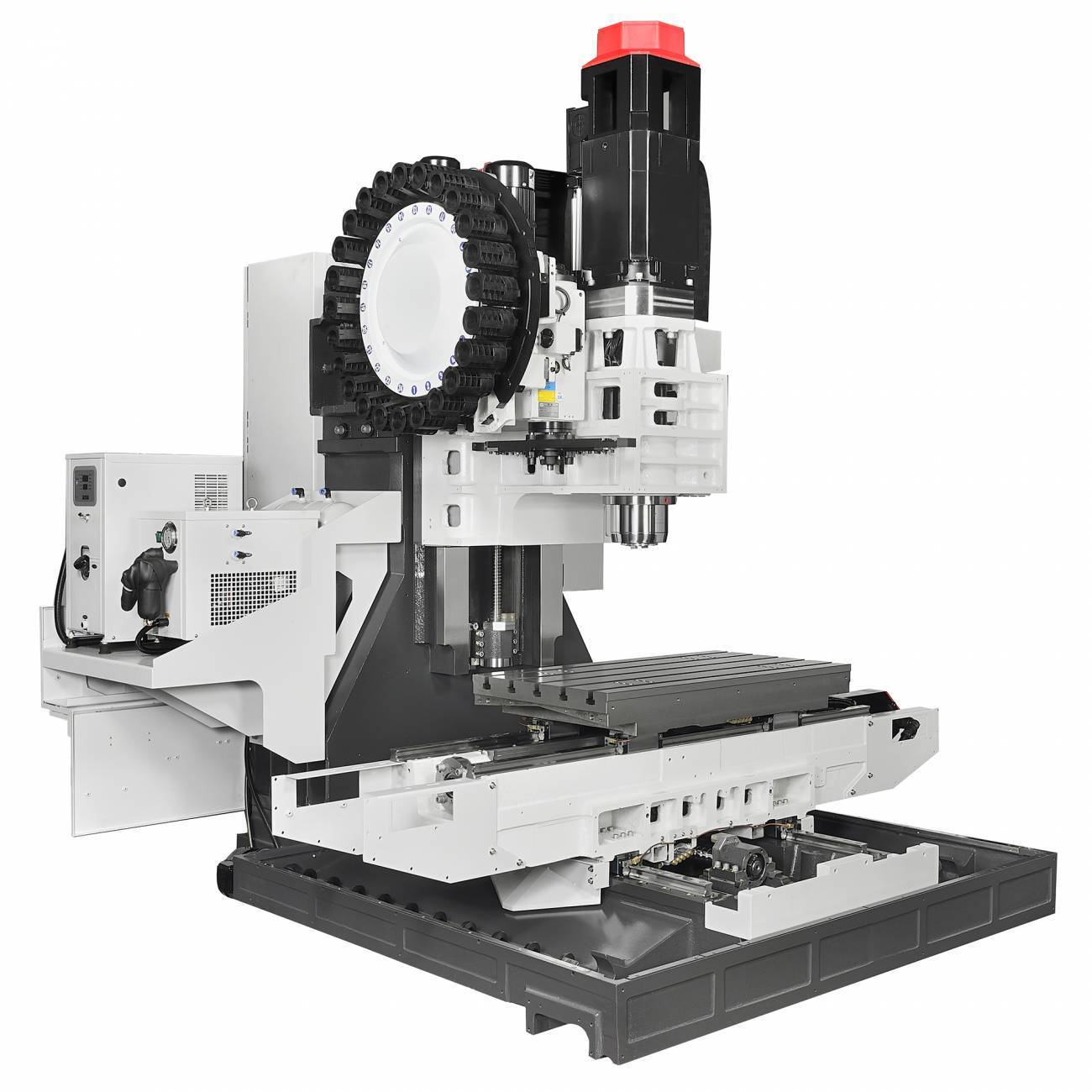

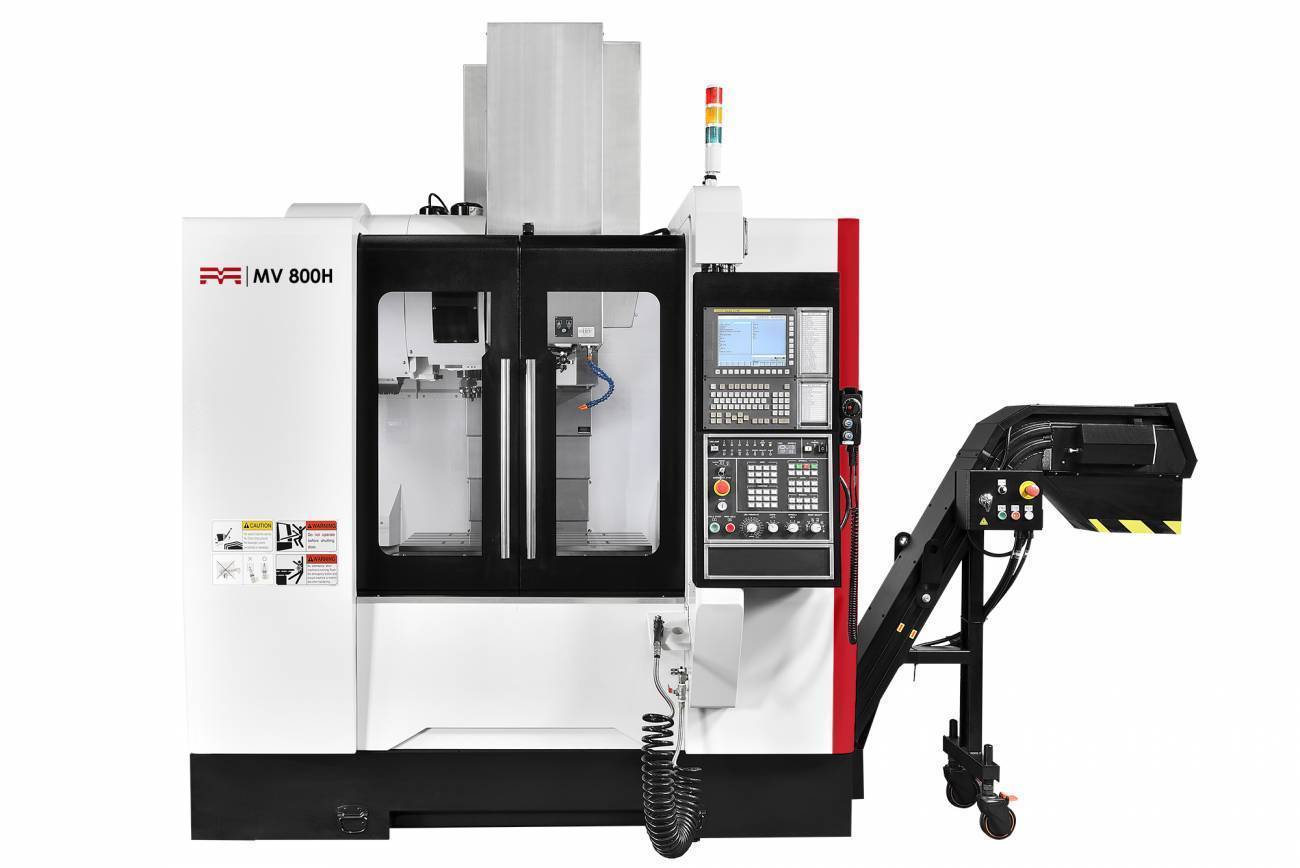

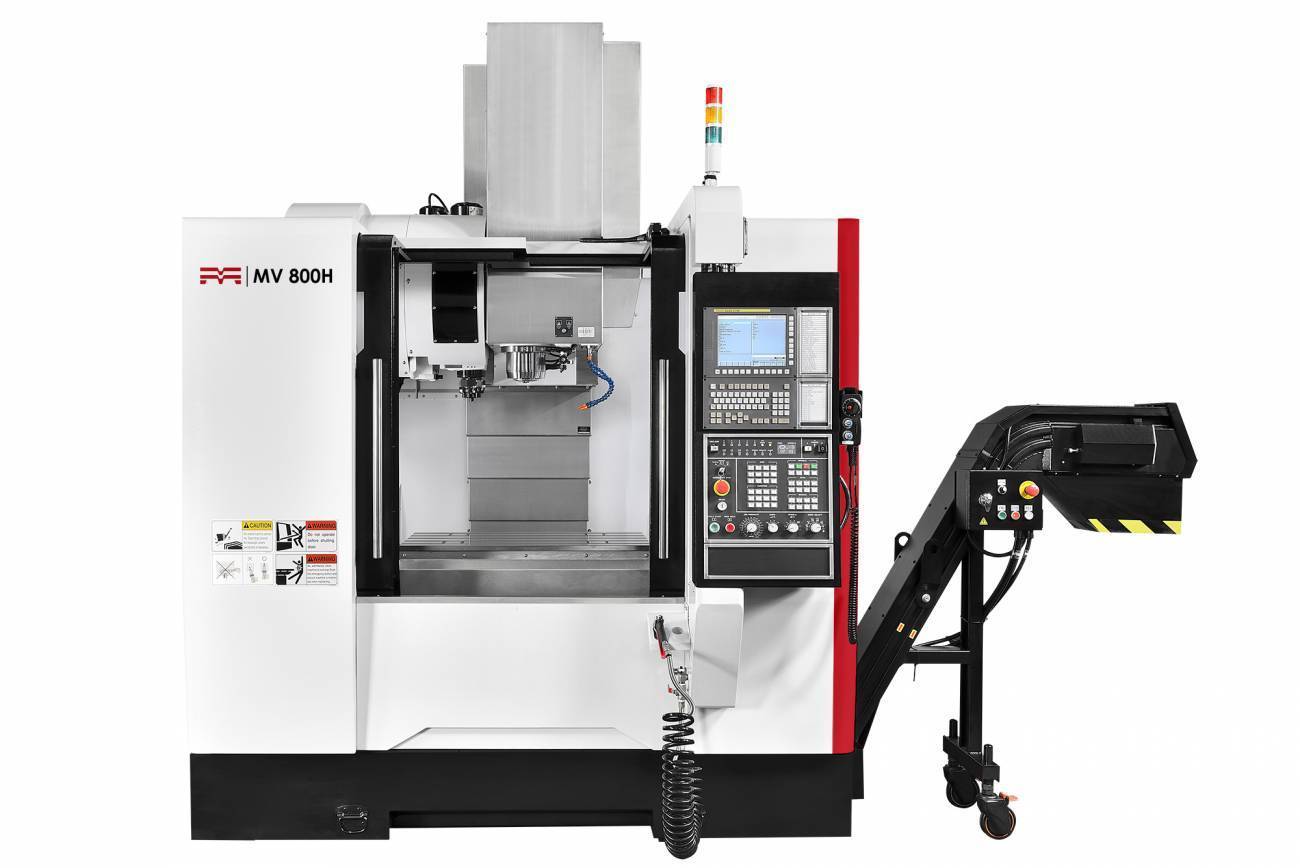

MV 800H

Introducing the All-New Methods MV 800H 3-Axis Vertical Machining Center engineered & built to strict Methods specifications and quality standards. This new product line is packed with standard features and benefits that will exceed the expectations of our customers looking for quality, reliability, accuracy and longevity at a competitive price.

Request Information

Or call 1-877-668-4262

Download Brochure

Product Details

Features & Benefits

  • Reliable FANUC 0i-MF Control with 10.4” LCD Screen
  • Includes Manual Guide I, AICC II, 2ms BPT, and 200 Block Look Ahead
  • 15,000 RPM Big Plus, 40 Taper Spindle with Air-Oil Lubrication, Spindle Chiller
  • Powerful 30 HP (15 min.) Direct Drive Hollow Shaft Spindle Motor w/1000 psi CTS Prep
  • Rigid Box-Way Construction in the Z-Axis
  • Robust Roller Guideways in the X and Y-Axis Feature 2362 IPM Rapid Rate
  • 24 Tool ATC
  • Thermal Compensation

Technical Data


X axis Travel
31.5" (800 mm)
Y axis Travel
20.5" (520 mm)
Z axis Travel
20.7" (525 mm)


Table Dimensions
37.4" x 20.5" (950 x 520 mm)
Maximum Load
1102 lbs (500 kg)
Spindle Nose to Table Surface
3.94” ~ 23.8” (100 ~ 605 mm)


Spindle Speed
15,000 rpm
Spindle Taper
Big Plus/CAT40
Spindle Power
30 HP
Spindle Torque
111ft/lb (150 Nm)
Spindle Lube
Oil / Air


X-Axis Rapid Traverse
2362 in/min (60 m/min)
Y-Axis Rapid Traverse
2362 in/min (60 m/min)
Z-Axis Rapid Traverse
1181 in/min (30 m/min)


Maximum Number of Tools
Tool-to-Tool Change Time
1.5 sec
Max Diameter
3.1” (80 mm)
Max Weight
15.4 lbs (7 kg)
Max Length
11.8" (300 mm)

Dimensions/ Weight/ Capacities

15,101 lbs (6850 kg)
Coolant Tank Capacity
94 gal (355 l)
