Fanuc

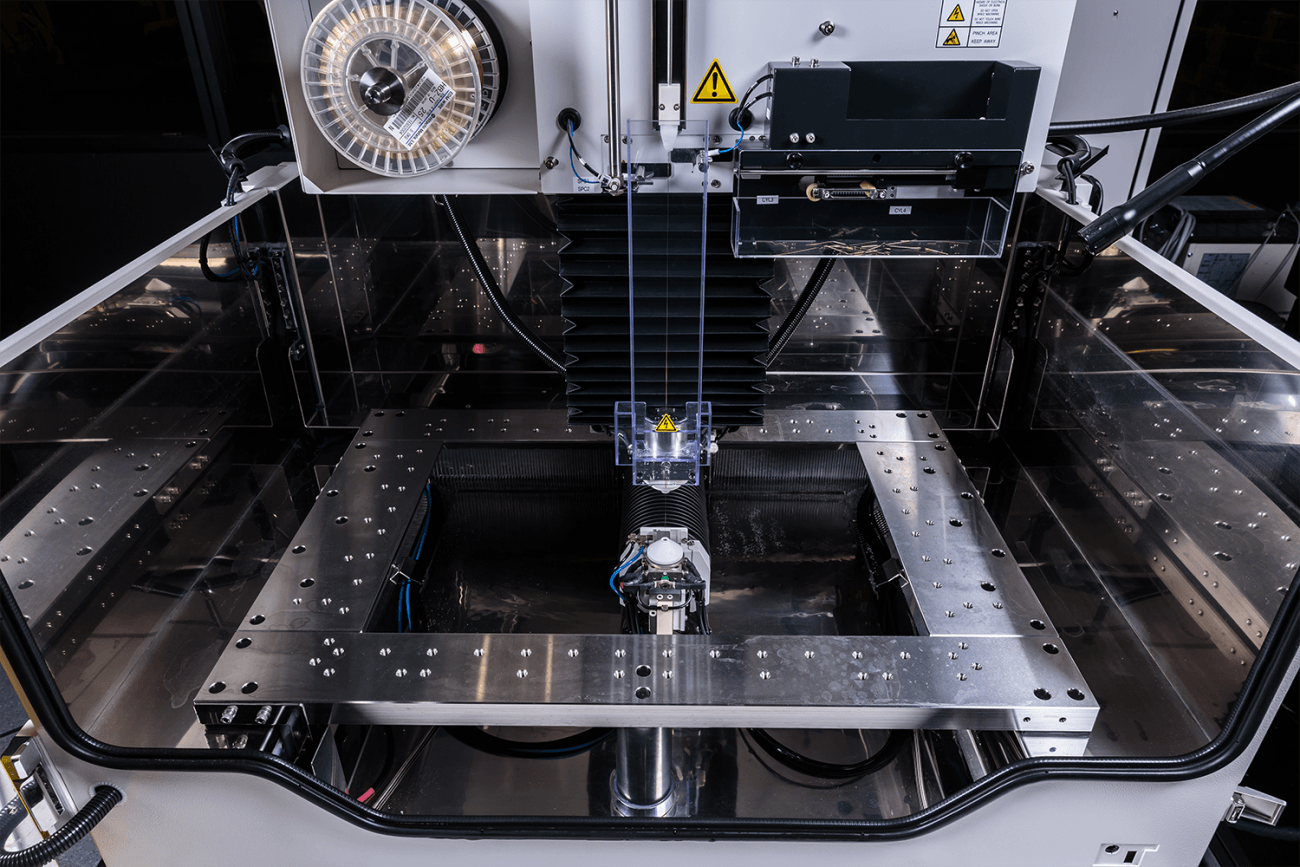

RoboCut C600iB-12
The RoboCut C600iB-12 Wire EDM features a new FANUC 31i-WB control with new iHMI User Interface, AWF3 and a new economy mode for energy and wire usage savings. The CiB-Series machines burn with virtually no re-cast and the AWF3 has been enhanced to thread thicknesses of up to 12 inches.
The FANUC RoboCut’s automatic wire tension meter and servo motor adjustment ensures that you get accurate, straight parts. Above all, the RoboCut CiB-Series EDMs built 100% in Japan, offer exceptional reliability for which FANUC is known worldwide.
Product Details
Features & Benefits
- Discharge Control Ai2
- Anti-recast Power Supply
- 3D Coordinate System Rotation
- Thermal Monitoring and Compensation
- “Core Stitch” Slug Retention
- Fully Integrated A/B axis for “Turn & Burn” Capability
- Auto Wire Feeding AWF3 Measurement Function
- FANUC 31i-WB Controller with New iHMI User Interface
- Wire Size: .004” to .012”
- Inverter Controlled Chiller
- CUT-LINKi Offline Cutting Monitor (STD)
- Remote PC Capability Wire
- Power Savings Mode
- Positioning Accuracy: ± .0001”
- Rotary Glass Encoder (.000002”)
- 2 Year Parts / 1 Year Labor Standard Warranty
Technical Data
Weight
- Machine Weight
- 6700 (3040) lbs (kg)
Robot Specifications
- Maximum Workpiece Size
- 41.3x32.3x11.8 (1050x820x300) in (mm) W/O Auto Door
- Maximum Workpiece Weight
- 3550 (1610) lbs (kg)
- U/V Travels
- ±3.937 (100) in (mm)
- Z-Axis Travel
- 12.2 (310) in (mm)
- Maximum Cutting Speed (Brass)
- 31 (788)
- Auto Wire Feed (AWF 2)
- Standard -
- Wire Diameter
- ø 0.004 - 0.012 (0.21-0.31) in (mm)
- Maximum Wire Spool Weight
- 35 (16) lbs (kg)
- Positioning Accuracy
- ±.0001 in (mm)
Dielectric Tank
- Tank Capacity
- 301 (1140) gal (L)
- Paper Filter (Cartridge Type)
- 2 quantity
- Inverter Chiller
- Standard -
Power Supply
- Digital Power Supply
- Standard -

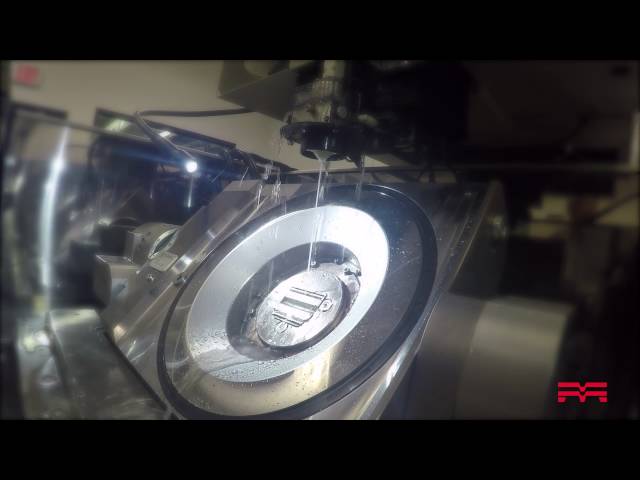

Videos
