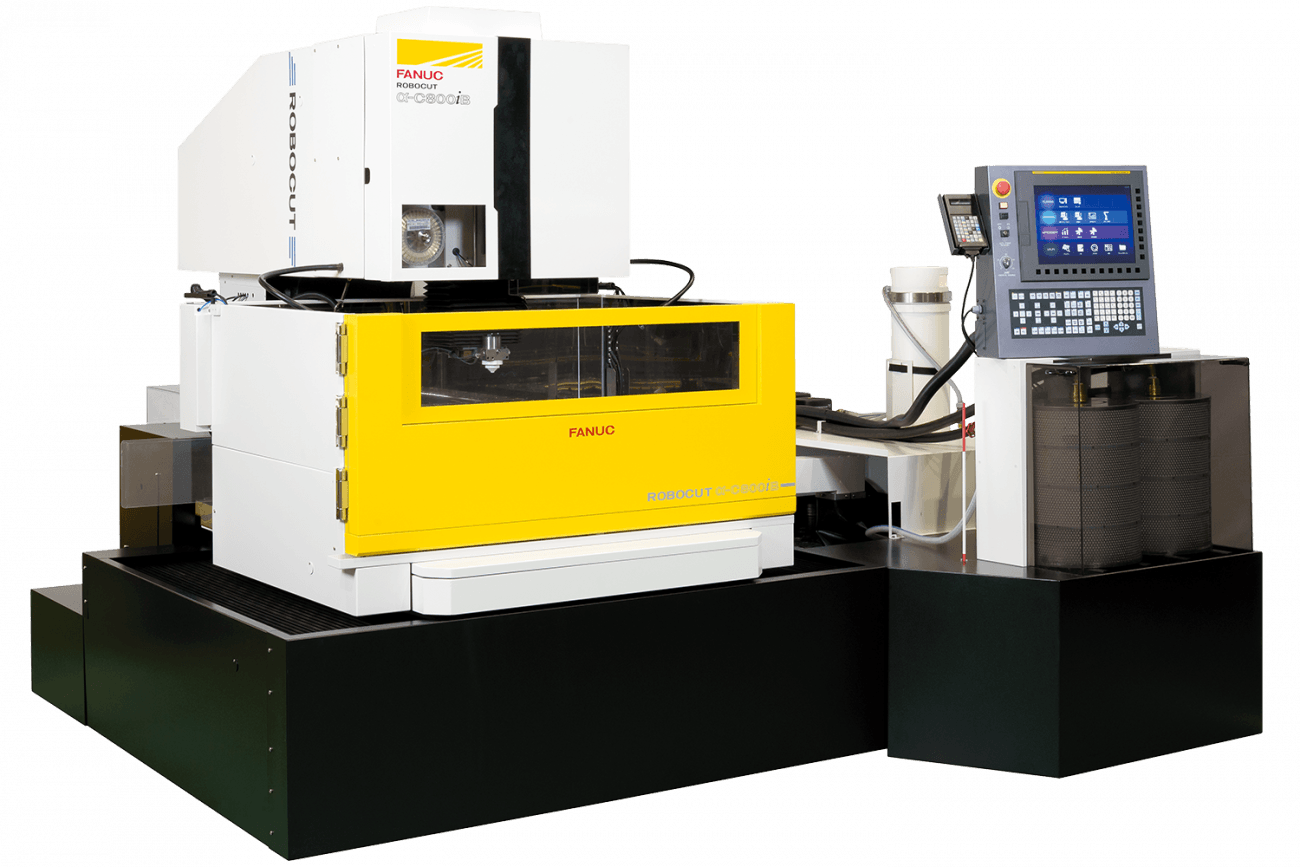

RoboCut C800iB-20

The RoboCut C800iB Wire EDM features a new FANUC 31i-WB control with new iHMI User Interface, AWF3 and a new economy mode for energy and wire usage savings. The CiB-Series machines burn with virtually no re-cast and the AWF3 has been enhanced to thread thicknesses of up to 20 inches.

The FANUC RoboCut’s automatic wire tension meter and servo motor adjustment ensures that you get accurate, straight parts. Above all, the RoboCut CiB-Series EDMs built 100% in Japan, offer exceptional reliability for which FANUC is known worldwide.

Request Information

Or call 1-877-668-4262

Download Brochure

Product Details

Features & Benefits

  • Discharge Control Ai2
  • Anti-recast Power Supply
  • Automatic Door
  • 3D Coordinate System Rotation
  • Thermal Monitoring and Compensation
  • “Core Stitch” Slug Retention
  • Fully Integrated A/B axis for “Turn & Burn” Capability
  • Auto Wire Feeding AWF3 Measurement Function
  • FANUC 31i-WB Controller with New iHMI User Interface
  • Wire Size: .002” to .012”
  • Inverter Controlled Chiller
  • CUT-LINKi Offline Cutting Monitor (STD)
  • Remote PC Capability Wire
  • Power Savings Mode
  • Positioning Accuracy: ± .0001”
  • Rotary Glass Encoder (.000002”)
  • 2 Year Parts/1 Year Labor Standard Warranty

Technical Data


Machine Weight
9500 (4310) lbs (kg)

Robocut Specifications

Maximum Workpiece Size
49.2x38.3x20.2 (1250x975x510) in (mm)
Maximum Workpiece Weight
6613 (3000) lbs (kg)
U/V Travels
±3.937 (100) in (mm)
Z-Axis Travel
20.2 (510) in (mm)
Maximum Cutting Speed (Brass)
31 (788)
Auto Wire Feed (AWF3)
Standard -
Wire Diameter
ø 0.002 - 0.012 (0.21-0.31) in (mm)
Maximum Wire Spool Weight
35 (16) lbs (kg)
Positioning Accuracy
±.0001 in (mm)

Dielectric Tank

Tank Capacity
265 (970) gal (L)
Paper Filter (Cartridge Type)
2 quantity
Inverter Chiller
Standard -

Power Supply

Digital Power Supply
Standard -
