OKK
VP2200

*Availability of machines is based on region. Contact your local Methods office to learn more.

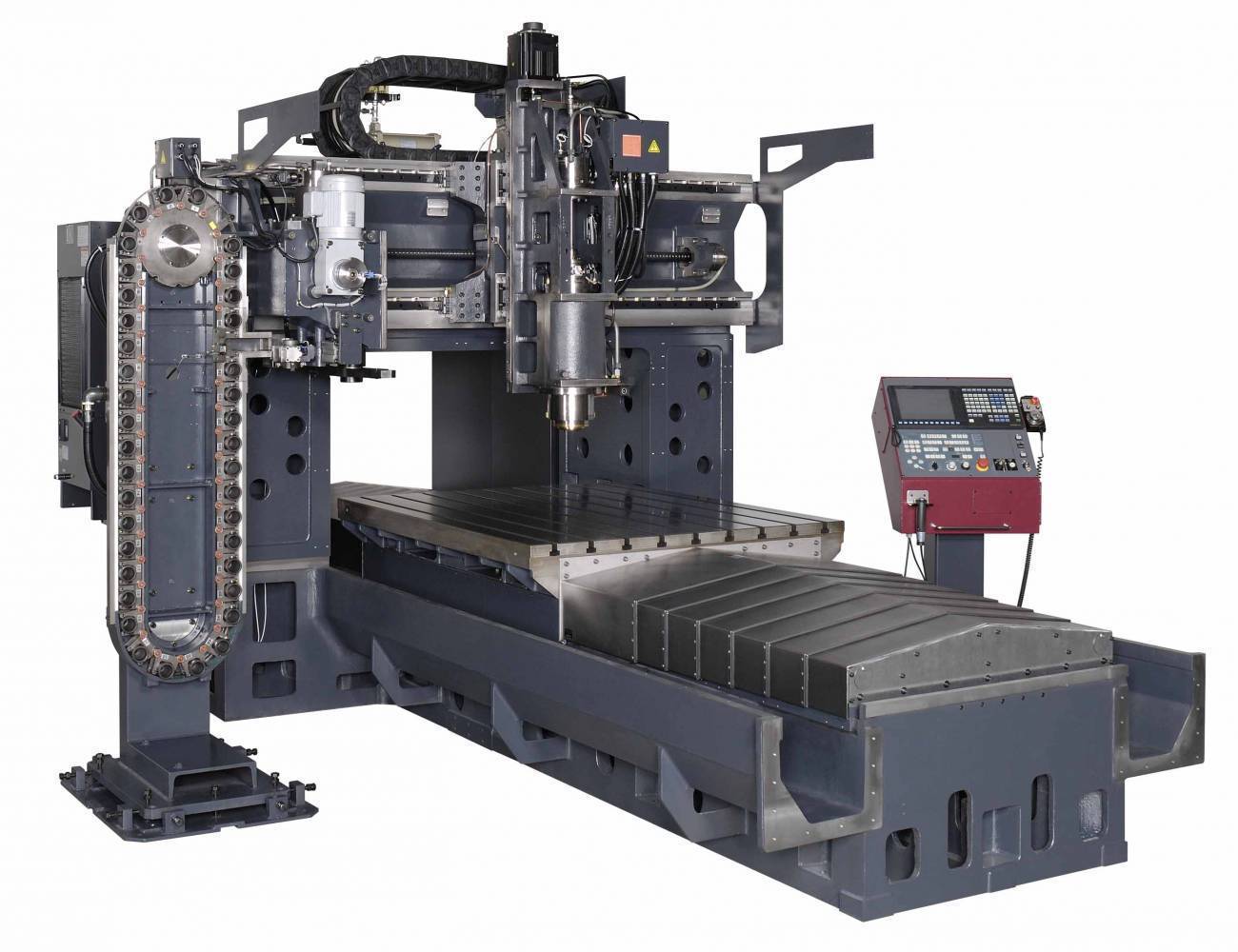

OKK offers a wide variety of advanced, high-speed, high-accuracy machining centers to meet all your unique needs. New technology and rigid structures offer enhanced machining accuracy and improved productivity. The VP Series Bridge style design maximizes rigidity, speed and accuracy while still achieving exceptional chip evacuation, operator accessibility with minimal floor space.

VP2200

Product Details

Features & Benefits

  • Highly rigid linear roller guide
  • Double-anchoring type ball screws
  • Coolant through spindle preparation
  • Coil-type chip conveyor
  • Excellent Chip Disposal, accessibility with compact-sized machine
  • Space saving design for economical use of floor space

Technical Data

Travel

X-Axis Travel
120.1" (3050mm)
Y-Axis Travel
86.6" (2200mm)
Z-Axis Travel
18.1" (460mm)
Table Top to Spindle Nose
3.9" - 22.1" (100mm - 560mm)

Table

Table Work Surface Area
118.1" x 86.6" (3000mm x 2200mm)
Table Load Capacity
6600 lbs (3000 kg)

Feed Rate

Rapid Traverse Rate X/Y
630 in/min (16 m/min)
Rapid Traverse Rate Z
1417 in/min (36 m/min)
Cutting Feed (X/Y/Z)
630 in/min (16 m/min)

Spindle

Spindle Power
50/25 HP
Spindle Speed
12,000 rpm
Spindle Taper
CAT40

Tools

Standard Number of Tools
40 (OP: 60/80/120)
Maximum Tool Weight
15.4 lbs (7 kg)
Maximum Tool Length
11.8" (300 mm)
Maximum Tool Diameter
ø 3.2" (82 mm) / ø 4.9" (125 mm) without adjacent tool
Tool Changing Time- Tool to Tool
1.2 sec

General

Machine Weight
70,500 lbs (32,000 kg)
Machine Control
FANUC F31i-B
