VP500 2APC

*Availability of machines is based on region. Contact your local Methods office to learn more.

OKK offers a wide variety of advanced, high-speed, high-accuracy machining centers to meet all your unique needs. New technology and rigid structures offer enhanced machining accuracy and improved productivity. The VP Series Bridge style design maximizes rigidity, speed and accuracy while still achieving exceptional chip evacuation, operator accessibility with minimal floor space.

Product Details

Features & Benefits

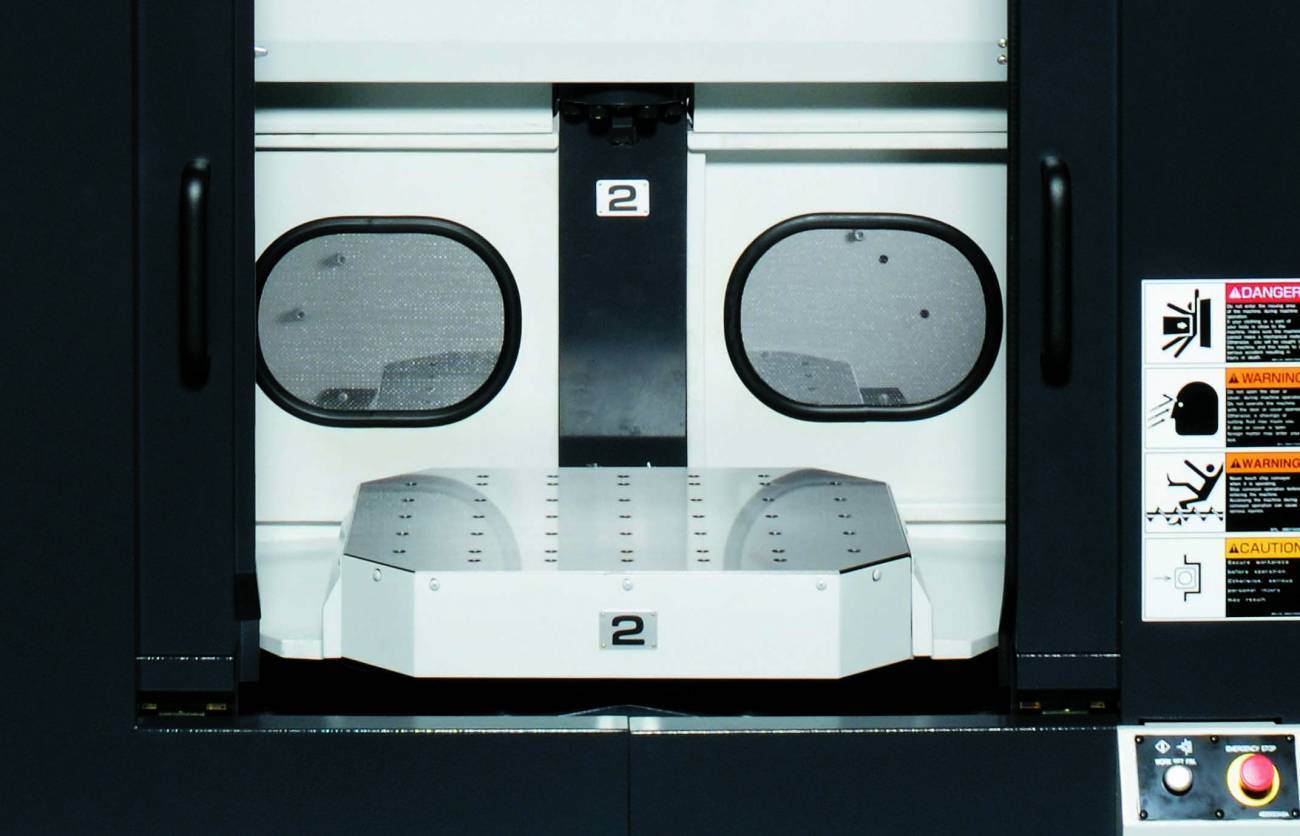

  • Direct turn 2 APC standard
  • Four port rotary union each pallet
  • Coolant through spindle preparation
  • Highly rigid linear roller guide
  • Double-anchoring type ball screws
  • Coil-type chip conveyor
  • Excellent Chip Disposal, accessibility with compact-sized machine
  • Space saving design for economical use of floor space

Technical Data


X-Axis Travel
23.6" (600mm)
Y-Axis Travel
20.1" (510mm)
Z-Axis Travel
18.1" (460mm)
Table Top to Spindle Nose
5.9" - 24.0" (150mm - 610mm)


Pallet Surface Area
23.6" x 19.7" (600mm x 500mm)
Pallet Load Capacity
881 lbs (400 kg)

Feed Rate

Rapid Traverse Rate X/Y
1890 in/min (48 m/min)
Rapid Traverse Rate Z
1417 in/min (36 m/min)
Cutting Feed (X/Y/Z)
1417 in/min (36 m/min)


Spindle Power
50/25 HP
Spindle Speed
12,000 rpm
Spindle Taper


Standard Number of Tools
20 (OP: 30, 40, 60, 80, 120)
Maximum Tool Weight
15.4 lbs (7 kg)
Maximum Tool Length
11.8" (300 mm)
Maximum Tool Diameter
ø 3.2" (82 mm) / ø 4.9" (125 mm) without adjacent tool
Tool Changing Time- Tool to Tool
1.2 sec


Machine Weight
22,046 lbs (10,000 kg)
Machine Control
