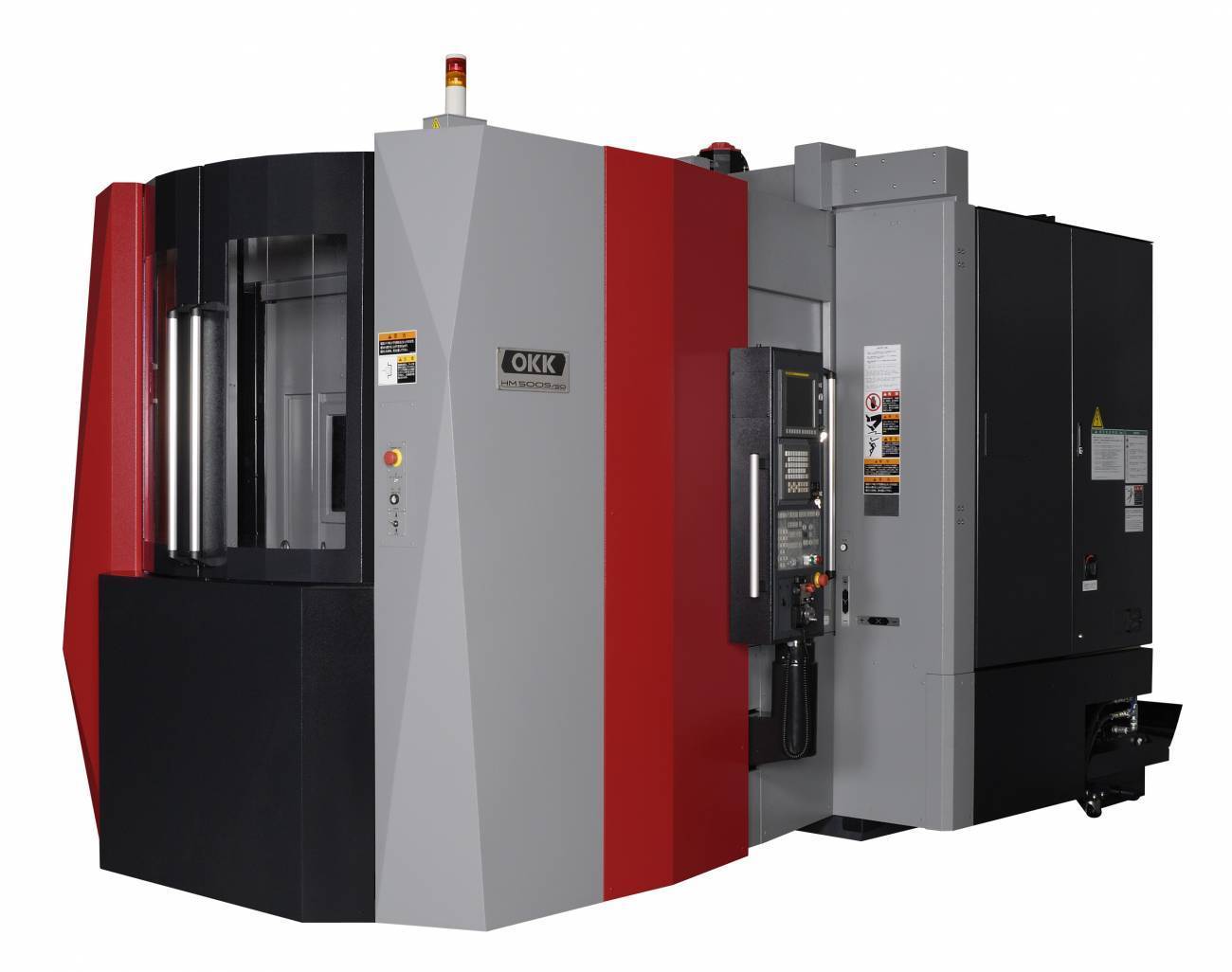

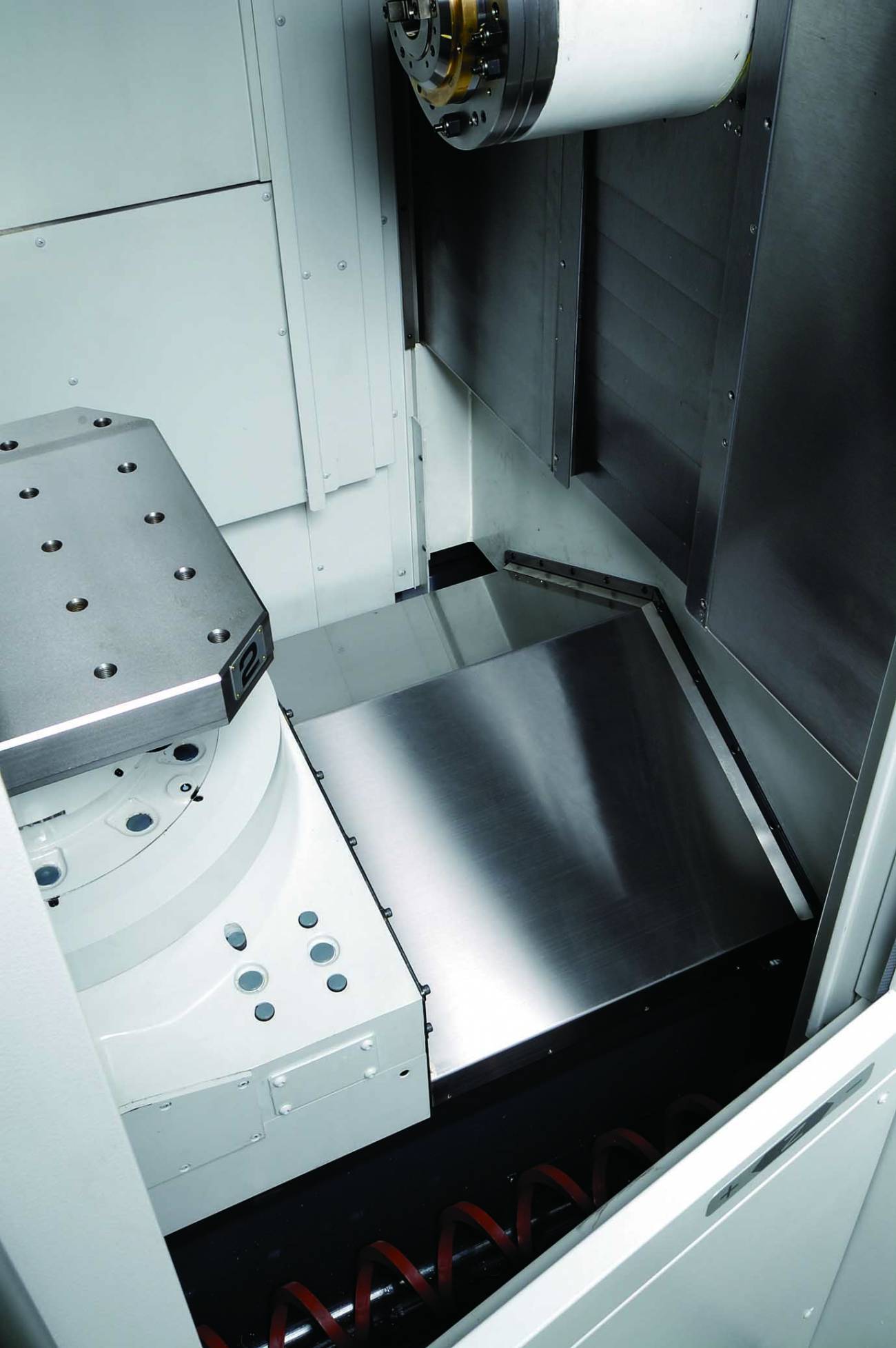

HM500S/50
*Availability of machines is based on region. Contact your local Methods office to learn more.
New concepts in high-speed machining offer drastic improvements in speed, rigidity and durability over competing machines. Our HM series offers the fastest and most powerful machines in their class, while providing easy access, maintenance and operation. Heavy duty cutting performance is delivered by incorporating a rigid frame of think box-shaped structure to foundation the large linear roller guides designed for very heavy loads. High-speed rotation APC and ATC by synchronization cam (OKK patent) delivers smooth performance and production efficiency.
Request Information
Or call 1-877-668-4262
Product Details
Features & Benefits
- Direct-turn APC
- Heavy load capacity linear roller guides
- Core chilled pre-tensioned and double-anchored ball screws
- High load capacity feed motors
- Space saving design for economical use of floor space
Technical Data
Travel
- X-Axis Travel
- 24.8" (630mm)
- Y-Axis Travel
- 24.4" (620mm)
- Z-Axis Travel
- 28.0" (710mm)
- Table Top to Spindle Nose
- 2.0" - 26.4" (50mm - 670mm)
Table
- Table Size
- ø 19.7" (500mm)
- Table Load Capacity
- 992 lbs (450 kg)
- Max. Workpiece Size
- ø 27.6" (700mm)
- Table Change Time: Cut to Cut
- 9.5 sec
Feed Rate
- Rapid Traverse Rate (X/Y/Z)
- 2,126 in/min (54 m/min)
- Cutting Feed (X/Y/Z)
- 1574 in/min (40 m/min)
Spindle
- Spindle Power
- 40/34 HP
- Spindle Speed
- 12,000 rpm
- Spindle Taper
- CAT50
Tools
- Standard Number of Tools
- 60 (116/176) std (opt)
- Maximum Tool Weight
- 55 lbs (25 kg)
- Maximum Tool Length
- 15.75" (400 mm)
- Maximum Tool Diameter
- ø 4.5" (115 mm) / ø 9.84" (250 mm) without tool in adjacent pots
- Tool Changing Time: Tool-to-Tool
- 4.2 sec (Speed is changeable for heavy-weight tools)
General
- Machine Weight
- 28,000 lbs (12,700 kg)
- Machine Control
- FANUC F31i-B5
