OKK

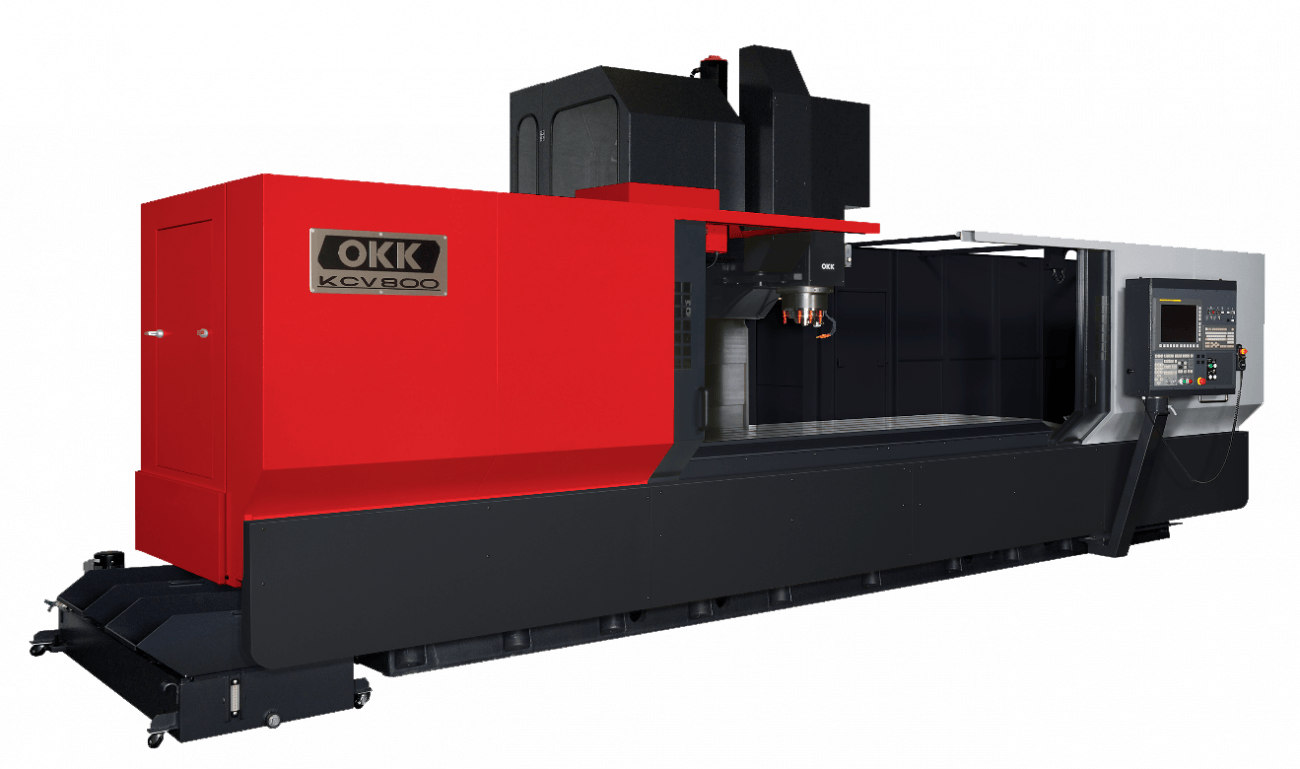

KCV800-30L
*Availability of machines is based on region. Contact your local Methods office to learn more.
The flexible design of the KCV Series meets your changing needs from short-term projects to intricate, extended manufacturing. Extreme stability and speed provide both high accuracy and productivity, without sacrificing easy accessibility, operation and productivity. From Aircraft parts to Large LCD components, its flexible design meets the users needs.
Request Information
Or call 1-877-668-4262
Product Details
Features & Benefits
- Space saving design for economical use of floor space
- Highly rigid machine structure produces highly accurate processing
- Thorough measures to control thermal displacement
- Operator friendly traversing column
- Highly rigid high-speed feed systems
- Double anchored support system
- Coil-type chip conveyor
Technical Data
Travel
- X-Axis Travel
- 120.1" (3050mm)
- Y-Axis Travel
- 32.3" + 1.8" (820mm + 45mm)
- Z-Axis Travel
- 28.4" (720mm)
- Table Top to Spindle Nose
- 7.9" - 36.2" (200mm - 920mm)
Table
- Table Work Surface Area
- 129.9" x 33.3" (3300mm x 820mm)
- Table Load Capacity
- 6600 lbs (3000 kg)
Feed Rate
- Rapid Traverse Rate (X/Y/Z)
- 629 in/min (16 m/min)
- Cutting Feed (X/Y/Z)
- 393 in/min (10 m/min)
Spindle
- Spindle Power
- 40/33 HP
- Spindle Speed
- 12,000 rpm (OP: 6,000rpm geared)
- Spindle Taper
- CAT50
Tools
- Standard Number of Tools
- 30 (OP: 40)
- Maximum Tool Weight
- 44 lbs (20 kg)
- Maximum Tool Length
- 13.8" (350 mm)
- Maximum Tool Diameter
- ø 3.9" (100 mm) / ø 7.9" (200 mm) without adjacent tool
- Tool Changing Time- Tool to Tool
- 2.5 sec (Speed is changeable for heavy-weight tools)
General
- Machine Weight
- 46,200 lbs (21,000 kg)
- Machine Control
- FANUC F31i-B
