Nakamura-Tome

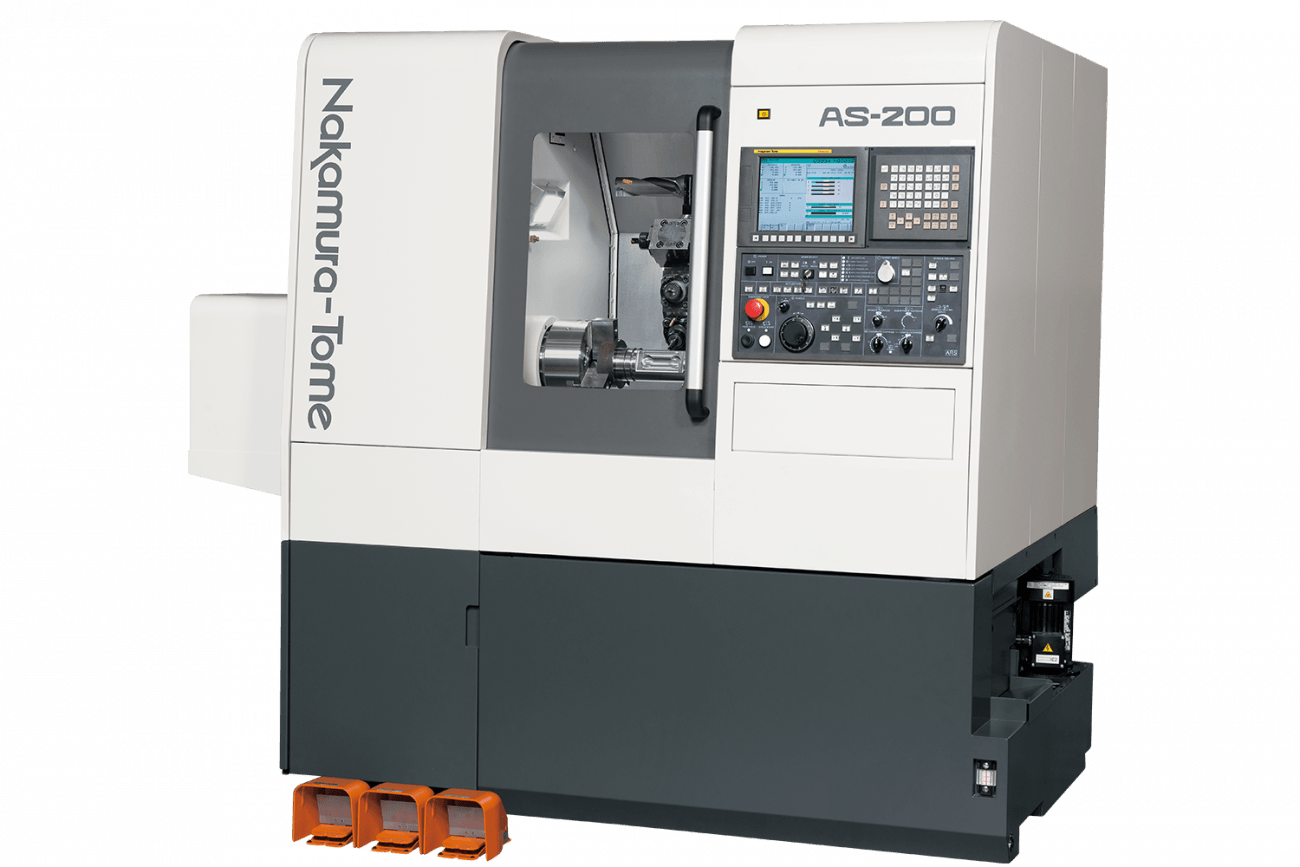

AS-200
AS-200 featured powerful milling drive, high speed high accuracy C-Axis and 3.22 in stroke Y-axis ensures production of finished parts, and the elimination of secondary operations, such as deburring, milling, drilling and re-positioning of fixtures.
Product Details
Features & Benefits
- Space Saving Combined Machine Tool with Y-axis & Milling Function
- Stroke: 3.22 in
- With Milling Function: 7.5/5 HP, Spindle Speed: 6000 rpm
- Strong Spindle Motor: 20/15 HP
- High Speed Index – X-axis: 24 m/min, Z-axis: 36 m/min, C-axis: 600 min-1

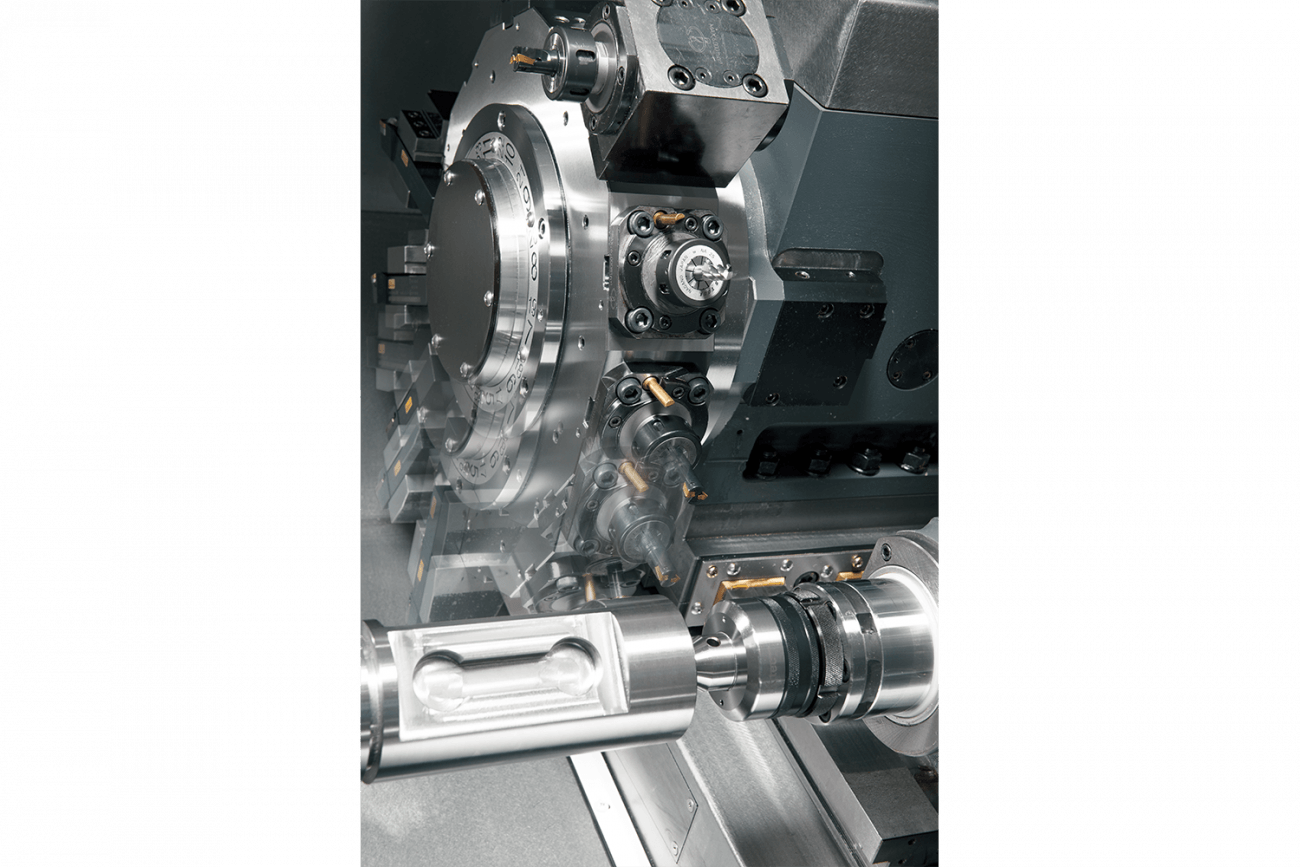

- Turret: Max Dodecagonal Drum Turret (Max. 24 Station)
- Number of Milling Tools (dodecagonal drum turret): 12
Technical Data
- Capacity
- 12/24-station turret in (mm)
- Swing Over Bed
- 15.8 (400) in (mm)
- Max Workpiece Swing Diameter
- 12.6 (320) in (mm)
- Max Turning Diameter
- 13.4 (340) in (mm)
- Max Turning Length
- 11.8 (300) in (mm)
- Bar Capacity
- 2.6 (65) in (mm)
- Chuck size
- 8 (203) in (mm)
Axis Travel
- Slide travel (X)
- 9 (227.5) in (mm)
- Slide travel (Z)
- 12.6 (320) in (mm)
- Slide travel (Y)
- ±1.6 (41) in (mm)
- Rapid feed (X)
- 945 (24) in/min (m/min)
- Rapid feed (Z)
- 1418 (36) in/min (m/min)
- Rapid feed (Y)
- 236 (6) in/min (m/min)
Spindle
- Spindle Speed
- 0-4500 rpm
- Spindle Speed Range
- Stepless
- Spindle Nose
- A2-6
- Hole Through Draw Tube
- 2.6 (66) in (mm)
C-Axis
- Least Input Increment
- 1E-3 degree
Turret
- Number of Tool Stations
- 12
- Number of Indexing Positions
- 24
Milling Tools
- Spindle Speed
- 6000 rpm
- Number of Milling-Tool Stations
- 12
Rotating Tool
- Rotary System
- Individual Rotation
- Spindle Speed
- 6000 rpm
- Spindle Speed Range
- Stepless
- Number of Rotation Tool Station
- 12
Drive motor power
- Main Spindle
- 20 HP
- Driven Tool Spindle
- 7.5 HP
Tailstock (op.)
- Quill Diameter
- 2.8 (70) in (mm)
- Quill Taper
- MT-4
- Quill Stroke
- 3.2 (80) in (mm)
- Travel
- 7.9 (200) in (mm)
General
- Machine Weight
- 7055 (3200) lbs (kg)
