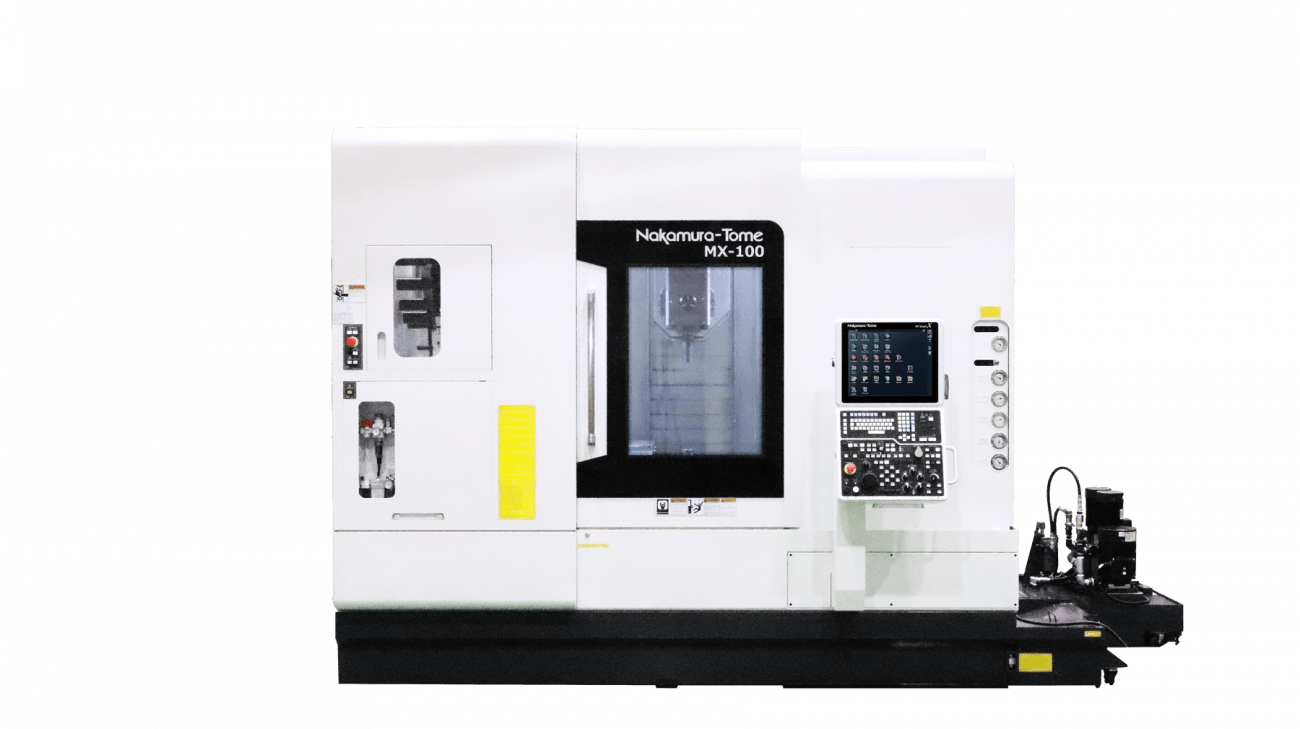

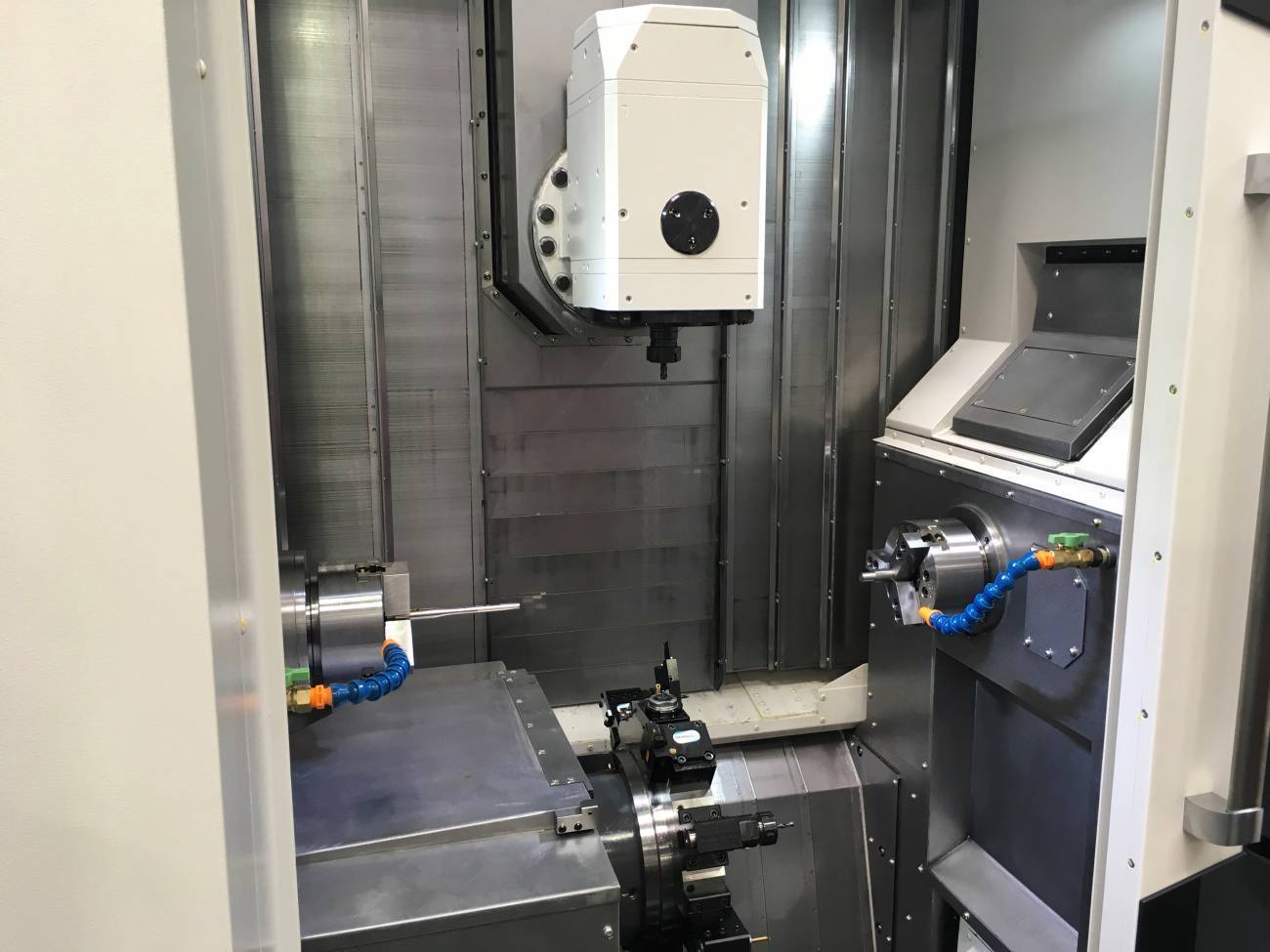

Nakamura-Tome MX-100
The MX-100 is a state-of-the-art, compact high-precision Multitasking Machine, with the capabilities of a Machining Center and a Turning Center, featuring advanced software, smart features and up to 96 tools, to ensure highproductivity machining of a wide range of parts, and to smartly meet the needs of various manufacturing sectors.
Request Information
Or call 1-877-668-4262
Product Details
Features & Benefits
- Milling・Y-axis standard
- ATC tool spindle standard
- ATC tool spindle motor 11/7.5kW
- Spindle speed12,000min-1 (op. 20,000min-1)
- ATC storage capacity 36 tools (op. 48, 72 tools)
- X-axis travel up to 50 mm below spindle center.
- Y axis travel ± 105 mm with respect to the spindle center
- Floor space 4,350mm x 2,795mm
- Lower turret milling motor power 7.1/2.2 kW with Max. speed 6,000 min-1
- Eco-friendly: Grease lubrication of slide axes
- Advanced software and Smart features
Technical Data
Capacity
- Max Turning Diameter (Tool Spindle / Lower Turret)
- 12" (305mm) / 8.7" (220mm)
- Distance Between Spindle Noses
- 39.4" (1,000mm) / 9.1" (230mm)
- Max Turning Length
- 34.3" (870mm)
Bar Capacity
- Bar Capacity
- ø 2" (51mm) / ø 2.6" (65mm)（op. only for L)
- Chuck size
- 6" (165mm) / 8" (210mm)
Axis Travel
- Slide Travel (X1)
- 23" (585mm)
- Slide Travel (X2)
- 5.1" (130.5mm)
- Slide Travel (Z1)
- 30.7"+12.6" (780mm+320 at ATC)
- Slide Travel (Z2)
- 28.1" (713mm)
- Slide travel (Y1)
- ± 4.1" (105mm)
- Slide Travel (B2)
- 30.3" (770mm)
Feed Function
- Rapid Feed (X1/X2)
- 315 in/min (8 m/min)
- Rapid Feed (Z1/Z2)
- 315 in/min (8 m/min)
- Rapid feed (Y)
- 315 in/min (8 m/min)
- Rapid Feed (B2 Axis)
- 315 in/min (8 m/min)
Left and Right Spindle
- Spindle Speed
- 6,000 rpm
- Spindle Speed Range
- Stepless
- Spindle Nose
- A2-5
- Hole Through Draw Tube
- 2.5:" (63mm)
Turret
- Number of Tool Stations
- 12
- Number of Indexing Positions
- 24
Tool Spindle
- Tool Spindle Speed
- 20,000 rpm
- Tool Shank Type
- Capto C4
- Number of Tool Stock
- 36 (op. 48, 72)
- Max Tool Diameter/without Adjacent Tool
- 2.2" (55mm) / 3.1" (80mm)
- Max Tool Length/ Max Tool Weight
- 7.1" (180mm)
- ATC Time (tool to tool)
- 1.3 sec
Drive motor power
- Main Spindle
- 15 HP
- Right Spindle
- 15 HP
- Driven Tool Spindle
- 15 HP
General
- Machine Weight
- 37,500 lbs (17,000kg)
