Nakamura-Tome
SC-200L

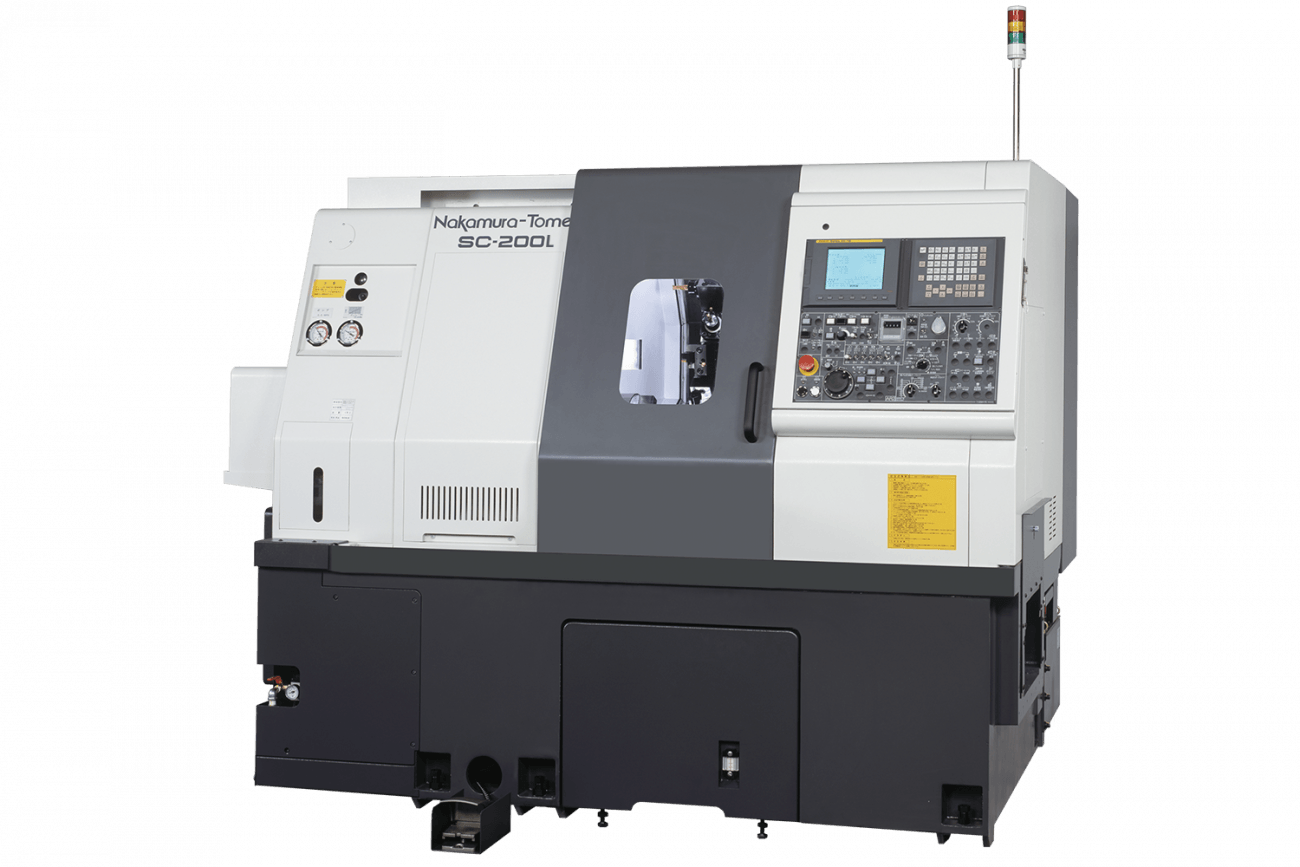

Developed for companies that demand both compact turning centers with high turning and milling capabilities, the SC-200L delivers these solutions with a 15 HP main spindle which provides great accuracy and rigidity, as well as retaining box ways. Each machine is hand built in Japan, not mass-produced, giving it unmatched capabilities.

Product Details

Features & Benefits

  • Massive Box-way Slides on all Axes
  • 15/10 HP Spindle Motor
  • Spindle Speed 4500 min-1,Driven-tool speed 6000min-1
  • Faster Rapid Traverse 24 m/min for the X-axis, and 36 m/min for the Z-axis
  • Bar Capacity 65 mm Standard
  • All FANUC, CNC Control and Servo Drives.
  • Dodecagonal 12 Station Turret

Technical Data

Capacity
! in (mm)
Max Turning Diameter
16 (410) in (mm)
Distance Between Spindles
31.5 (800) in (mm)
Max Turning Length
21 (530) in (mm)
Bar Capacity
2.6 (65) in (mm)
Chuck size
8 (215) in (mm)

Axis Travel

Slide travel (Z)
22.9 (580) in (mm)
Slide travel (Y)
±1.6 (41)(op.) in (mm)
Rapid feed (X)
945 (24) in/min (m/min)
Rapid feed (Z)
1418 (36) in/min (m/min)
Rapid feed (B)
945 (24)(op.) in/min (m/min)
Rapid feed (Y)
236 (6)(op.) in/min (m/min)

Spindle

Spindle Speed
4500 rpm
Spindle Speed Range
Stepless
Spindle Nose
A2-6
Hole Through Draw Tube
2.6 (66) in (mm)

Sub Spindle (op.)

Spindle Speed
6000 rpm
Spindle Speed Range
Stepless
Spindle Nose
A2-5
Hole Through Draw Tube
1.7 (43) in (mm)

C-Axis

Least Input Increment
1E-3 degree

Turret

Number of Tool Stations
24
Number of Indexing Positions
24

Milling Tools

Spindle Speed
6000 rpm
Number of Milling-Tool Stations
12

Rotating Tool

Rotary System
Individual Rotation
Spindle Speed
6000 rpm
Spindle Speed Range
Stepless
Number of Rotation Tool Station
12

Drive motor power

Main Spindle
15 HP
Sub Spindle (op.)
7.5 HP
Driven Tool Spindle
7.5 HP

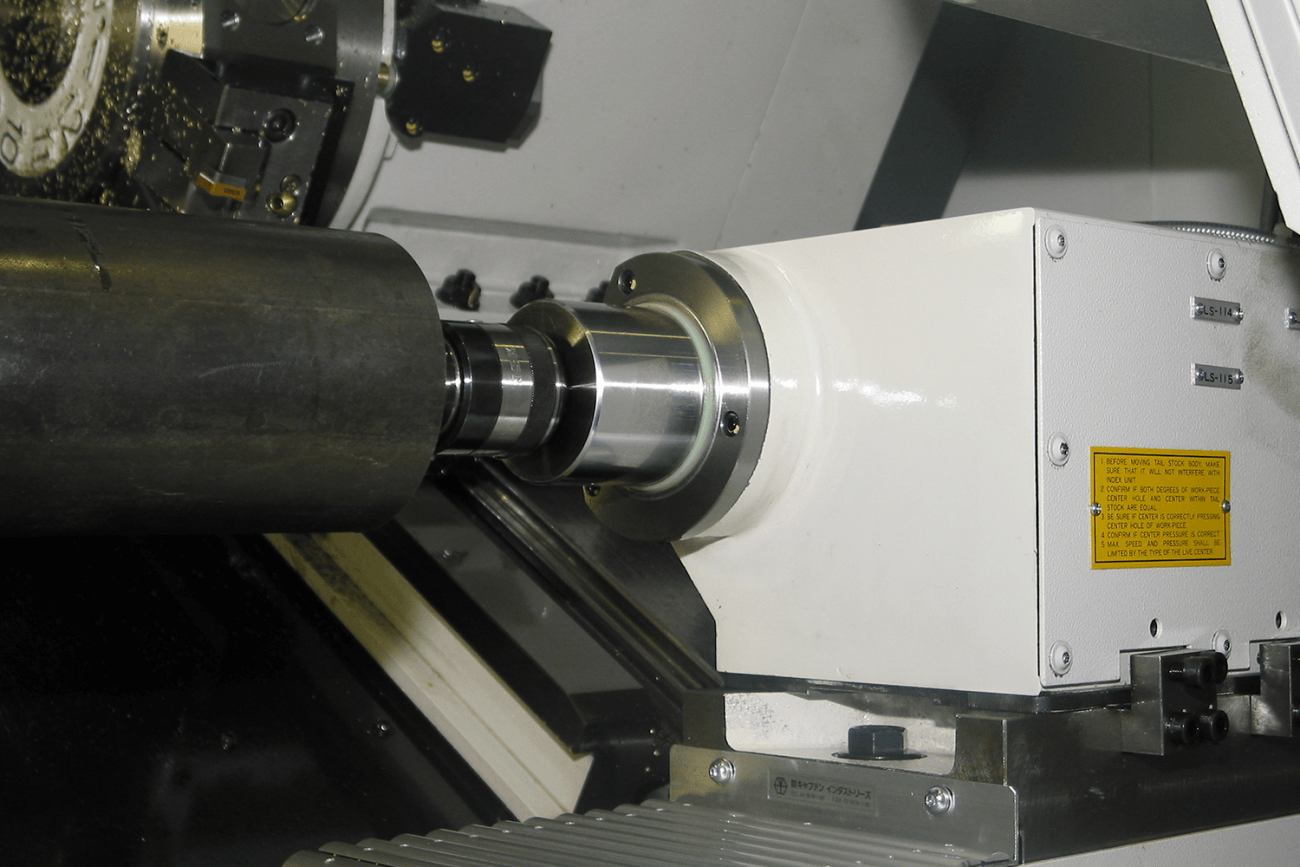

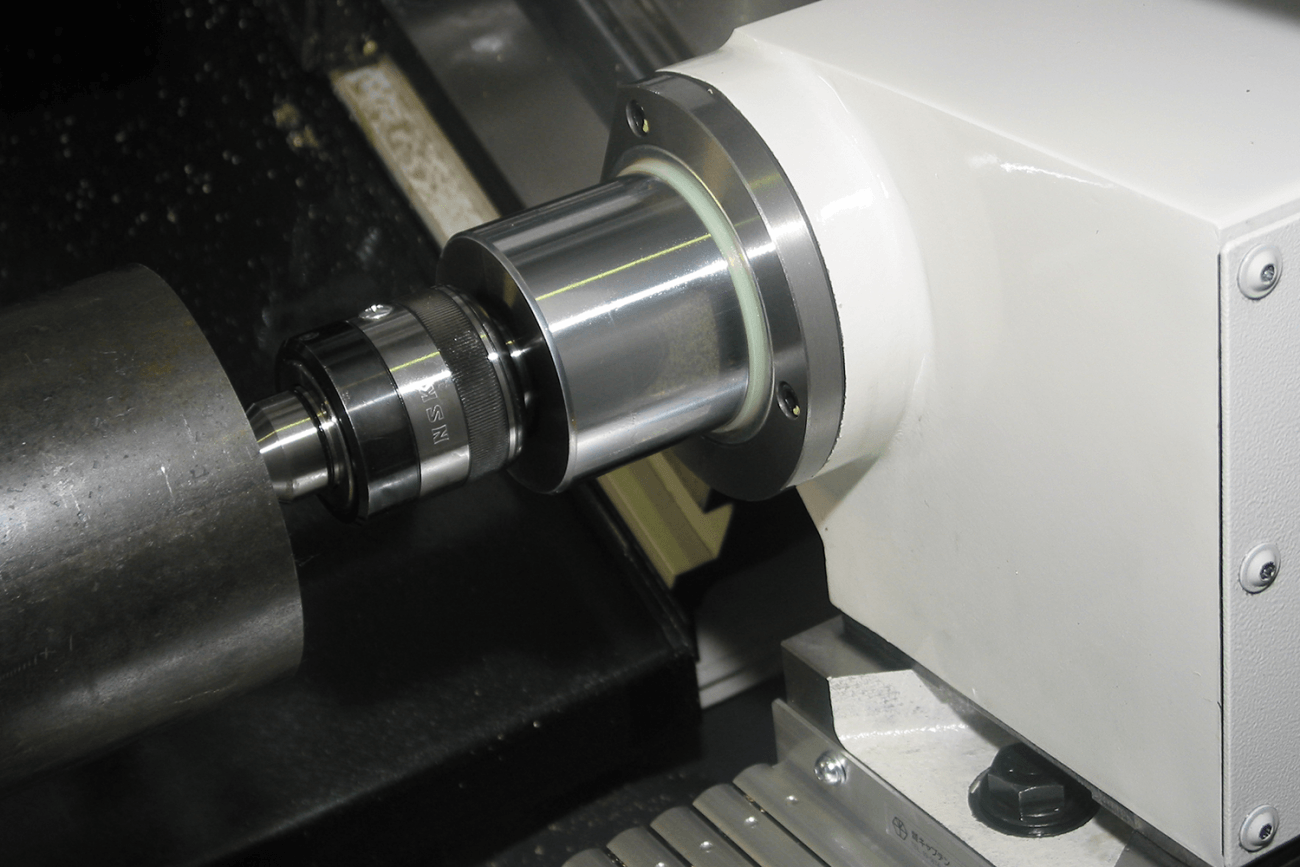

Tailstock (op.)

Quill Diameter
3.2 (80) in (mm)
Quill Taper
MT-3 built-in center
Quill Stroke
3.2 (80) in (mm)

General

Machine Weight
11023 (5000) lbs (kg)
