Nakamura-Tome
WT-300
This high rigidity multitasking machine is equipped with high-output motors featuring the ultimate in machining performance, in both turning and milling. In addition to the low center of gravity and wide-bed design to provide more stability, the machine is equipped with box-type slides and guide-ways, which are high-frequency hardened and ground to precision. The slides are traditionally hand scraped by highly skilled technicians, adopting a long established tradition called “KISAGE”, which has been continued since the hydraulic lathe era.
Combining the latest in technology and the highest in capabilities, the WT300 is the ultimate turret-type multi-tasking machine.
Or call 1-877-668-4262
Product Details
Features & Benefits
- 25/20 HP Left and Right Spindle
- Driven-Tool Motor Power 7.5/5 HP, for Heavy Cutting with Small Tools

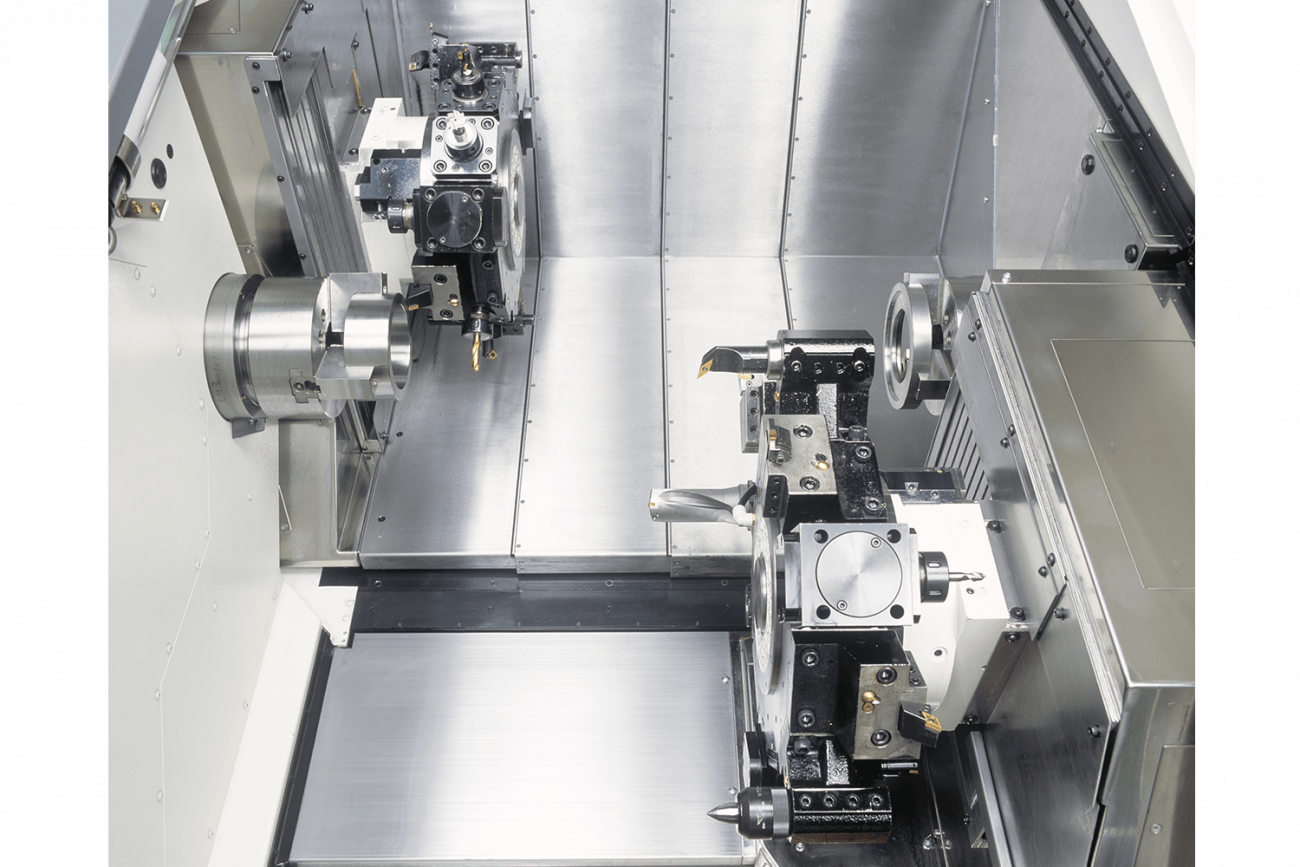

- Upper / Lower Turret Construction, 4-axis Machining as well as Various other Machining Combinations Possible on either Spindle
- Upper / Lower Turrets and Opposing Two-spindle Construction, Cycle Time Balancing and Reduction is Possible
- up to 24 Tools per Turret, 48 Tools can be Permanently Available
- Milling Turrets with Y-axis for Upper Turret
Technical Data
- Capacity
- ø3.2 in ( 80) / ø4 (102) (op.) in (mm)
- Max Turning Diameter
- 10.6 (270) in (mm)
- Distance Between Spindles
- max 43.3 (1100) / min 9.8 (250) in (mm)
- Max Turning Length
- 30.7 (780) in (mm)
- Bar Capacity
- 4 (102) (op.) in (mm)
- Bar Capacity L-Spindle
- 3.2 in (80 ) in (mm)
- Bar Capacity R-Spindle
- 2.6 (65) in (mm)
- Chuck size
- 10 in in (mm)
Axis Travel
- Slide travel (Y)
- ±2.4 (60) in (mm)
- Slide Travel (B)
- 33.5 (850) in (mm)
- Slide Travel (X1/X2)
- 7.4 (188) / 7.7 (195) in (mm)
- Slide Travel (Z1/Z2)
- 30.7 (780) / 30.7 (780) in (mm)
- Rapid Feed (X1/X2)
- 630 (16) / 630 (16) in/min (m/min)
- Rapid Feed (Z1/Z2)
- 1063 (27) / 1063 (27) in/min (m/min)
Left Spindle
- Spindle Speed
- 3500 / 2500 rpm
- Spindle Nose
- A2-8
- Hole Through Draw Tube
- 3.2 (81) / 4 (103) in (mm)
- Right Spindle
- 2.5 in (80 )
- Spindle Speed
- 4500 rpm
- Spindle Speed Range
- Stepless
- Spindle Nose
- A2-6
- Hole Through Draw Tube
- 2.5 (66) in (mm)
C-Axis
- Least Input Increment
- 1E-3 degree
Turret
- Number of Tool Stations
- 24
- Number of Indexing Positions
- 24
Rotating Tool
- Rotary System
- Individual Rotation
- Spindle Speed
- 6000 rpm
- Spindle Speed Range
- Stepless
- Number of Rotation Tool Station
- 12x2
Drive motor power
- Main Spindle
- 25 HP
- Right Spindle
- 25
- Driven Tool Spindle
- 7.5 HP
General
- Machine Weight
- 30865 (14000) lbs (kg)
