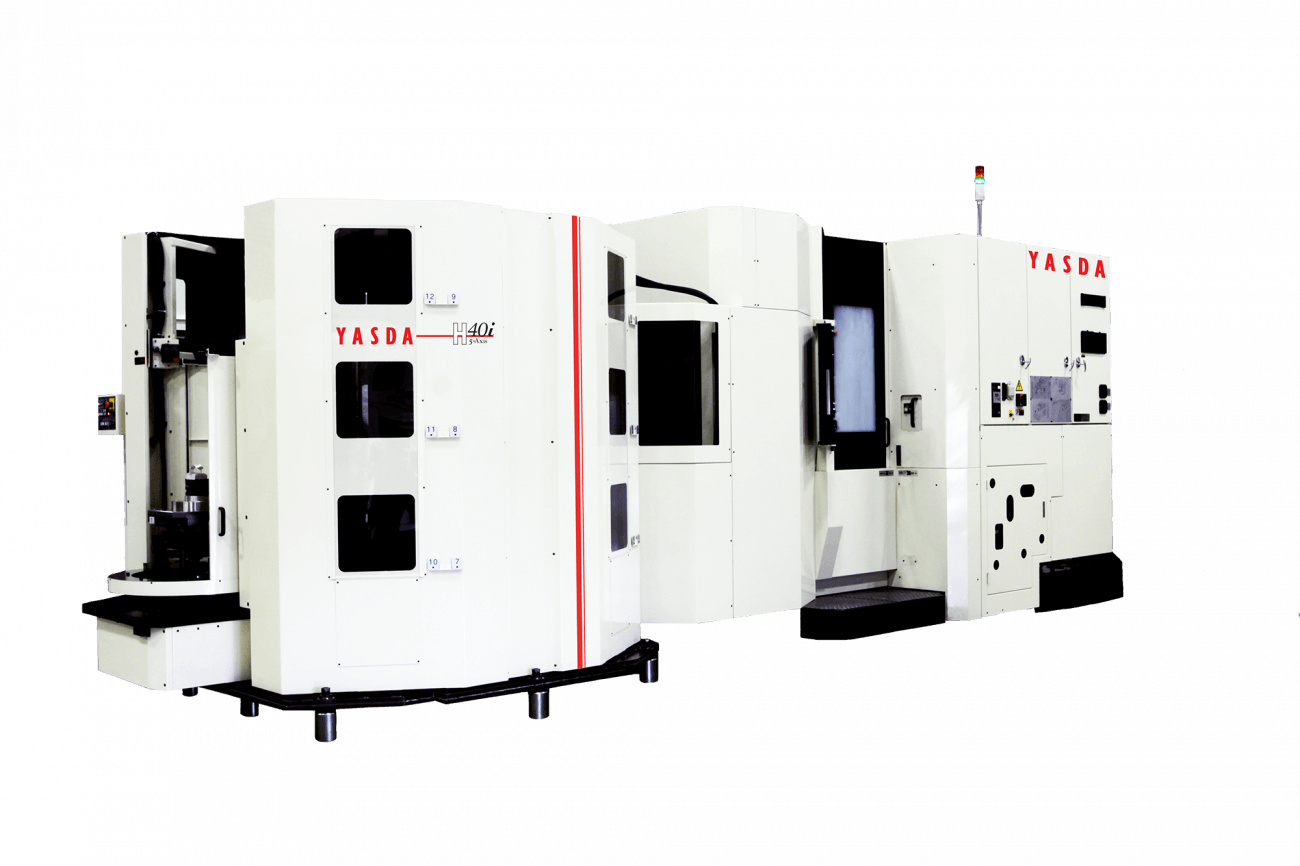

Yasda
H-40i

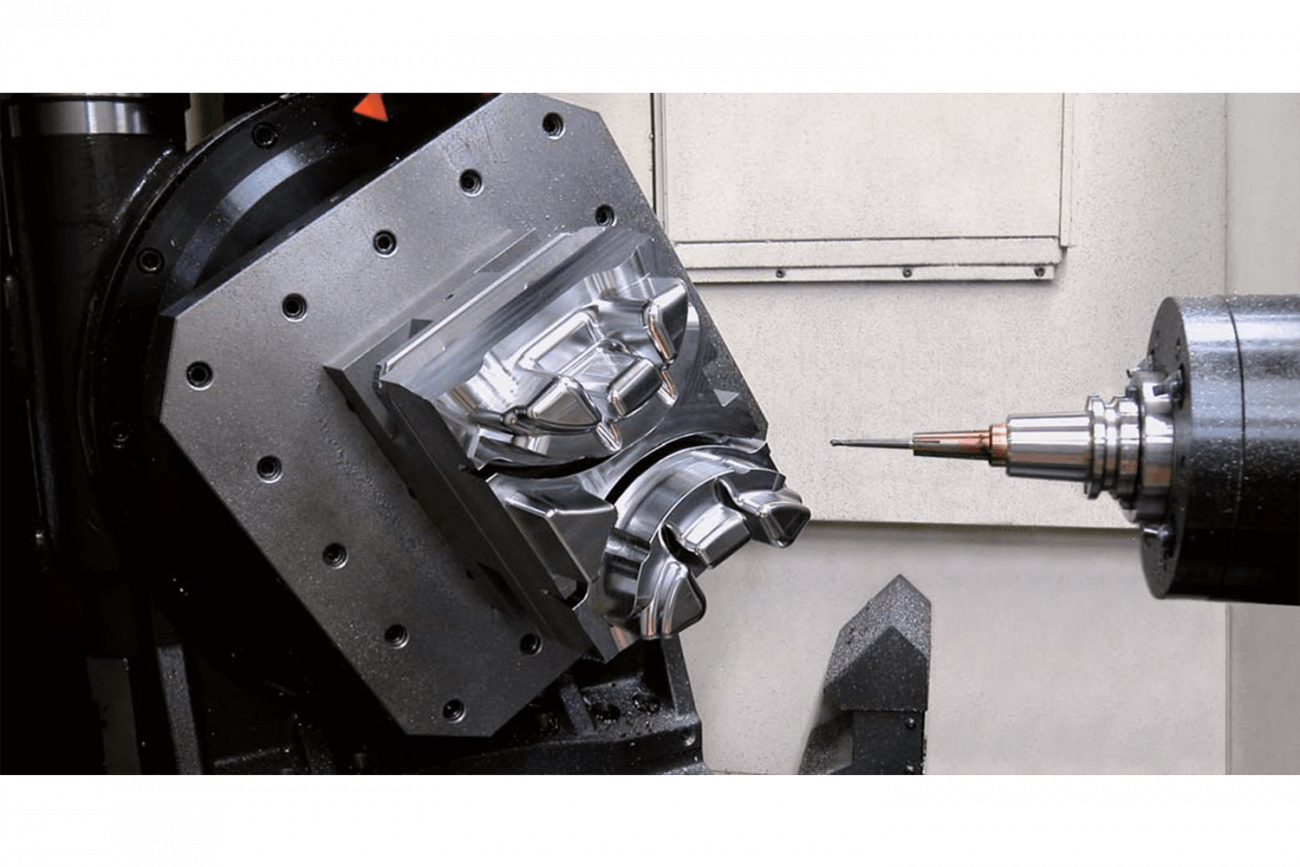

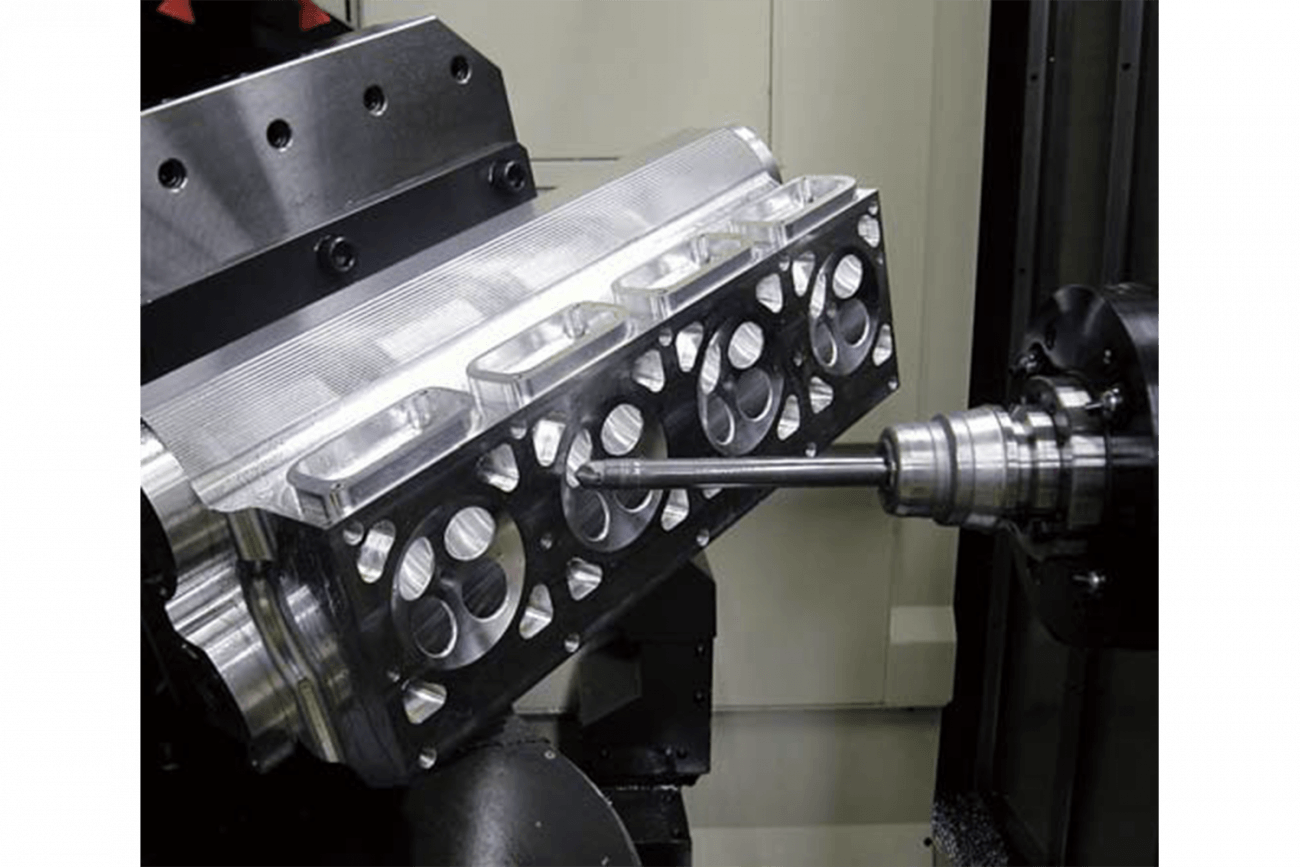

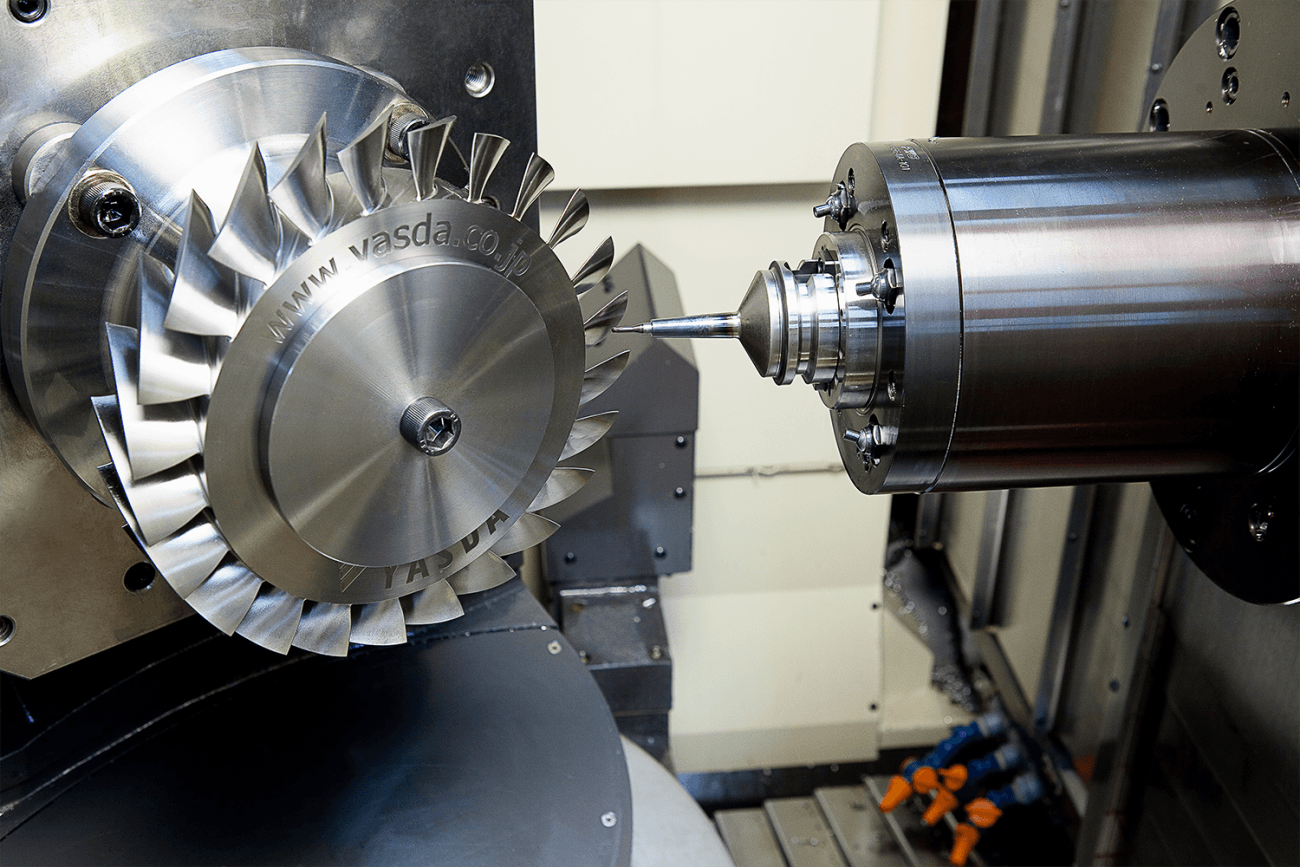

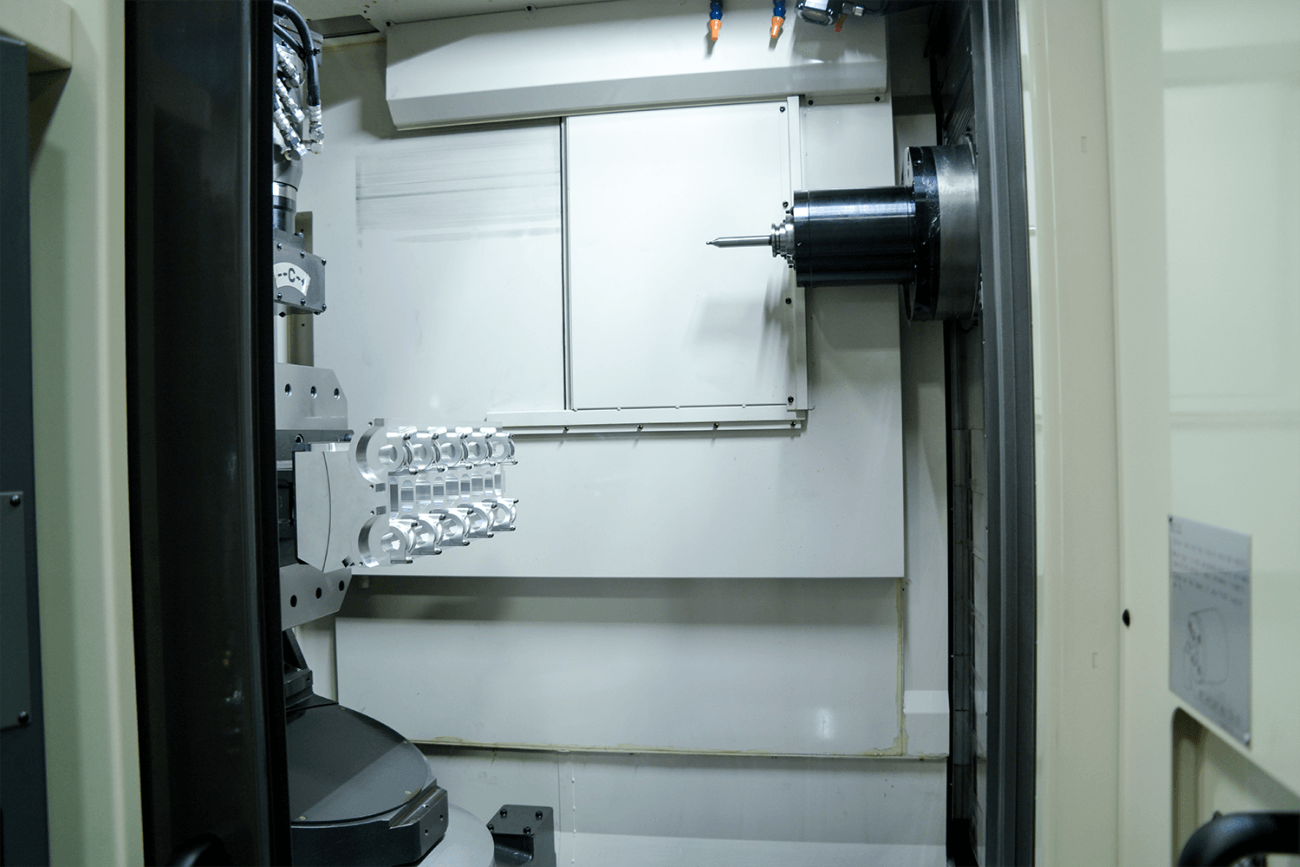

YASDA’s H40i is improving versatile performances in its 5-faces indexing application and complex simultaneous 5-axis applications, due to its high rigidity and high accuracy. This outstanding performance results not only in less setting up, but also in total profitability due to many factors saving machining cost. H40i has option of 12PLS up to maximum 24PLS. Reliable multiple pallets management option satisfy versatile purpose of usage and long hours automation.
Product Details
Features & Benefits
- 5 Axis High Precision Horizontal Machining Center

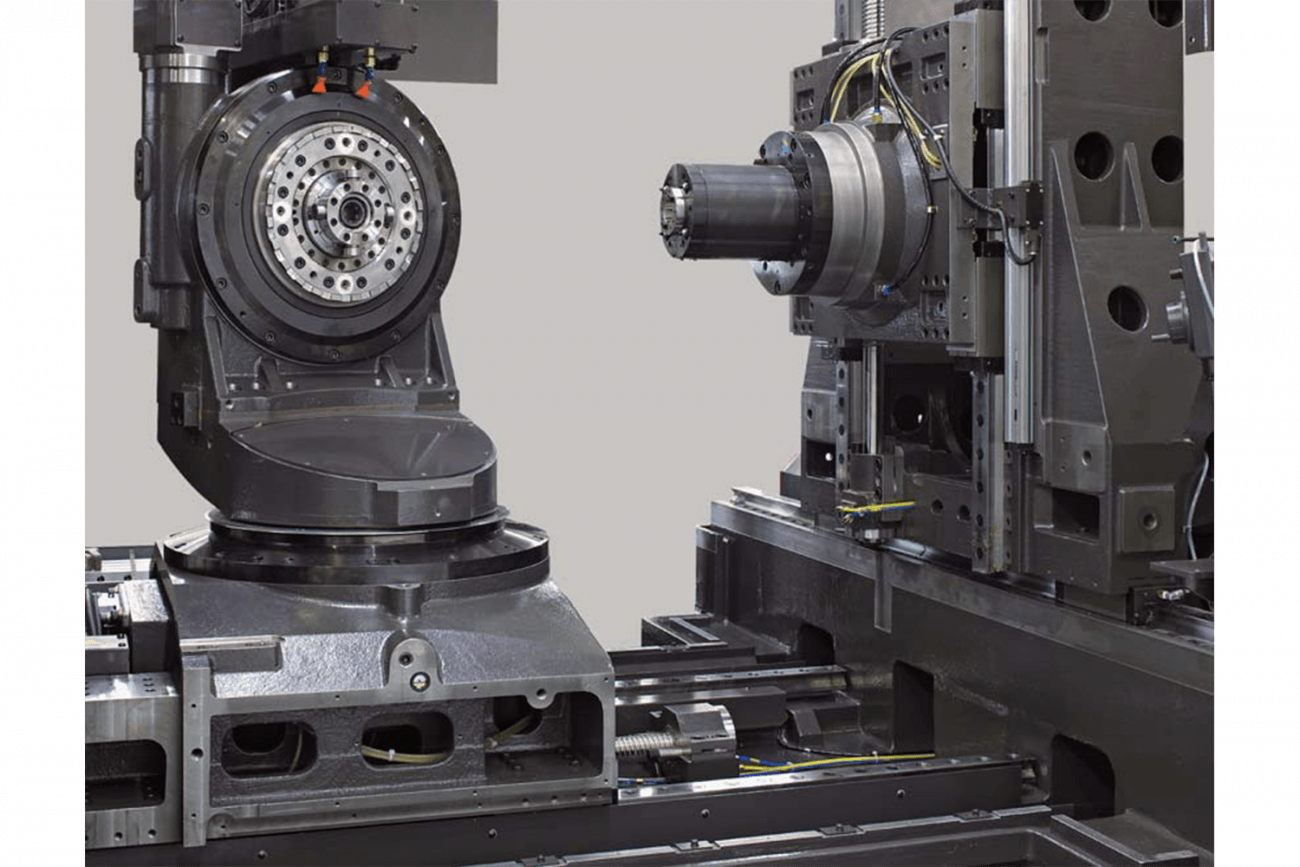

- High Speed Direct Drive Rotary Axis
- Self-contained Multi Pallet Stacking System
- 20000 rpm Spindle Speed
- Space Saving Footprint
- Rigid Machine Structure for Machining Various Material Types
- Scale Feedback for Precise Positioning
- Probing Systems
Technical Data
Travel
- X-Axis Travel
- 34.5 (875) in (mm)
- Y-Axis Travel
- 29.2 (740) in (mm)
- Z-Axis Travel
- 27 (685) in (mm)
- B-Axis (tilt table)
- +45 to -185 degrees
- C-Axis (rotary table)
- 360º (0.0001º)
- Distance from Table Surface to Spindle
- 29.2 (740) in (mm)
- Distance from Table Center to Spindle Nose Face
- 27 (685) in (mm)
Feedrate
- X, Y, and Z Axes Rapid Traverse
- 50,000 mm/min ( 1,968 ipm)
- B-Axis (tilt) Rapid Traverse
- 75 rpm with DD motors
- C Axis (rotary) Rapid Traverse
- 100 rpm with DD motors
- X, Y, and Z Axes Feed Rate
- Max. 20,000 mm/min ( 787 ipm) with HAS
- B and C Axes Feedrate
- Max. B: 40 / C: 40 rpm with HAS
Table
- Table Working Surface
- 15.8x15.8 (400x400) in (mm)
- Table Loading Capacity
- 440 (200) lbs (kg)
- Max Diameter of Workpiece
- ø 19.7 (500) in (mm)
- Min. Table Indexing Angle
- -185 to 45 degree
Spindle
- Spindle Type
- Direct Drive -
- Spindle Speed Range
- 200-20000 rpm (opt)
- Spindle Taper
- 7/24 taper No. 40 (Big Plus)
Tooling
- Number of Tools
- 240 std (opt)
- Maximum Tool Weight
- 15.43 (7) lbs (kg)
- Maximum Tool Length
- 12 (300) in (mm)
- Maximum Tool Diameter
- ø 2.75 (70) in (mm)
General
- Machine Weight
- 24250 (11000) lbs (kg)
- Machine Control
- FANUC 31i-B5- 10.4" Color LCD -
