Yasda
YBM 8T-TT

The YASDA YBM 7Ti and 8T-TT precision centers are highly acclaimed by users all over the world for its high precision turn boring performance.

Image of a YBM-8T-TT machine

Product Details

Features & Benefits

  • High Speed and High Precision Positioning with Hybrid Box Guide Ways
  • Thermal Distortion Stabilizing Systems: YASDA’s countermeasures reduce thermal influence and maintain high rigidity and high precision, for continuous high-speed machining
  • High Performance Spindle with Pre-load Self-adjusting System: YASDA’s unsurpassed spindle technology realizes high precision and high quality machining through the entire speed range

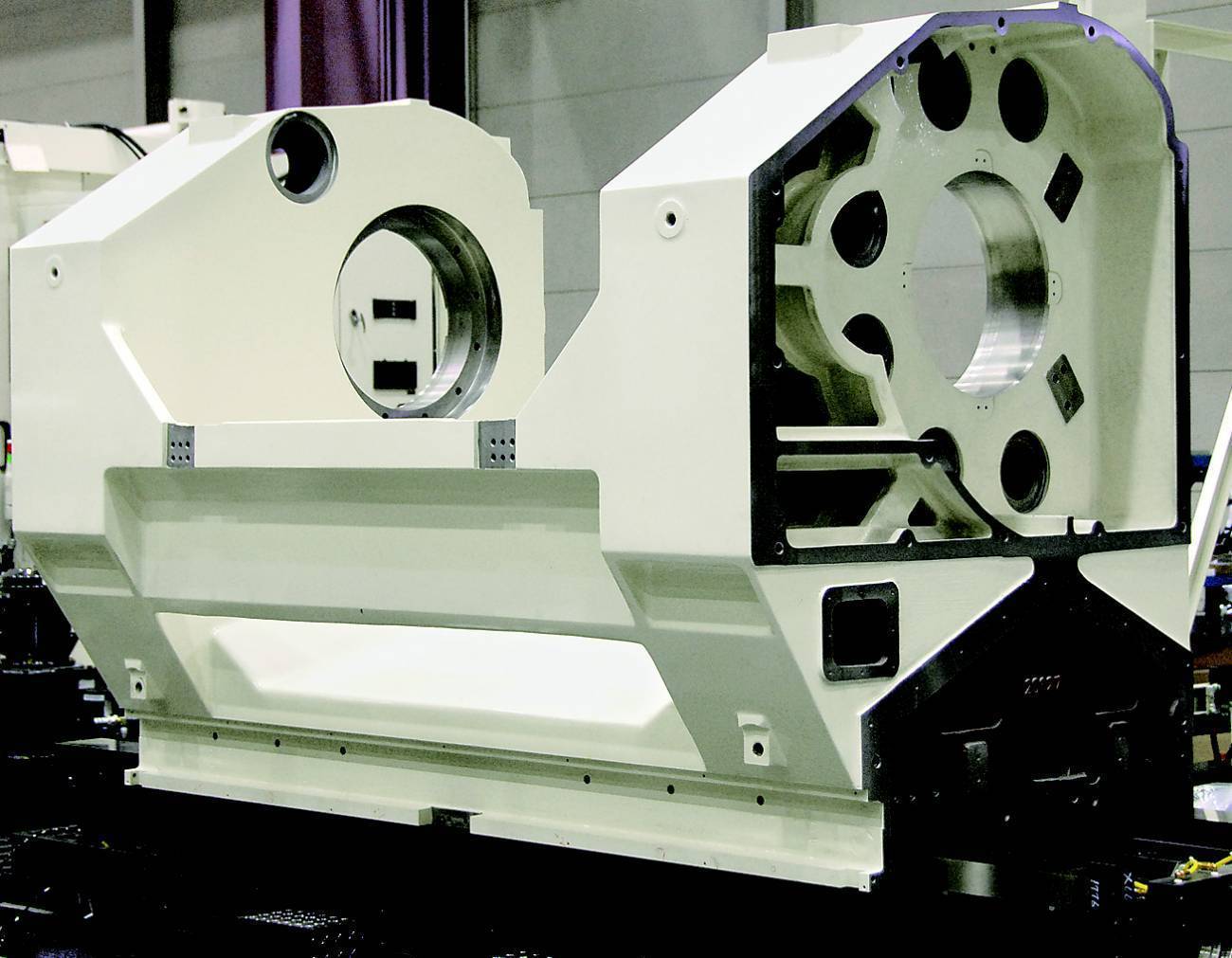

  • Highly Rigid Construction
  • Direct Drive Spindle with Preload Self-adjusting System
  • Centrally Positioned Spindle Head for Higher Positioning Accuracy
  • Table Indexing and Pallet
  • Pallet Chucking Mechanism for Unsurpassed Repeatability and Rigidity
  • Automatic Tool Changer for Heavy Tools
  • Tool Holder Cleaning Device with Brush and Blower

Technical Data

Travel

X-Axis Travel
51.2 (1300) in (mm)
Y-Axis Travel
39.4 (1000) in (mm)
Z-Axis Travel
43.3 (1100) in (mm)
Distance from Table Surface to Spindle
0-39.4 (0-1000) in (mm)
Distance from Table Center to Spindle Nose Face
7.8-51.2 (200-1300) in (mm)

Feed Rate

Rapid Traverse
1890 (48) in/min (m/min)
Feed Rate
0.04-197 (1-5000) in/min (mm/min)

Table

Table Working Surface
31.5x31.5 (800x800) in (mm)
Table Loading Capacity
6614 (3000) lbs (kg)
Max Diameter of Workpiece
ø 51.2 (1300) in (mm)
Min. Table Indexing Angle
1E-4 degree

Spindle

Spindle Type
SA50-10000-22 -
Spindle Speed Range
50-10000 rpm (opt)
Spindle Taper
7/24 taper No. 50 (BT50) -

Tooling

Number of Tools
60 (90, 120,180,240,300) std (opt)
Maximum Tool Weight
44 (20) lbs (kg)
Maximum Tool Length
17.4 (440) in (mm)
Maximum Tool Diameter
ø14.2 (360) in (mm)

General

Machine Weight
52911 (24000) lbs (kg)
Machine Control
FANUC 31i-B5-10.4" Color LCD -
