Yasda
YBM 1224V

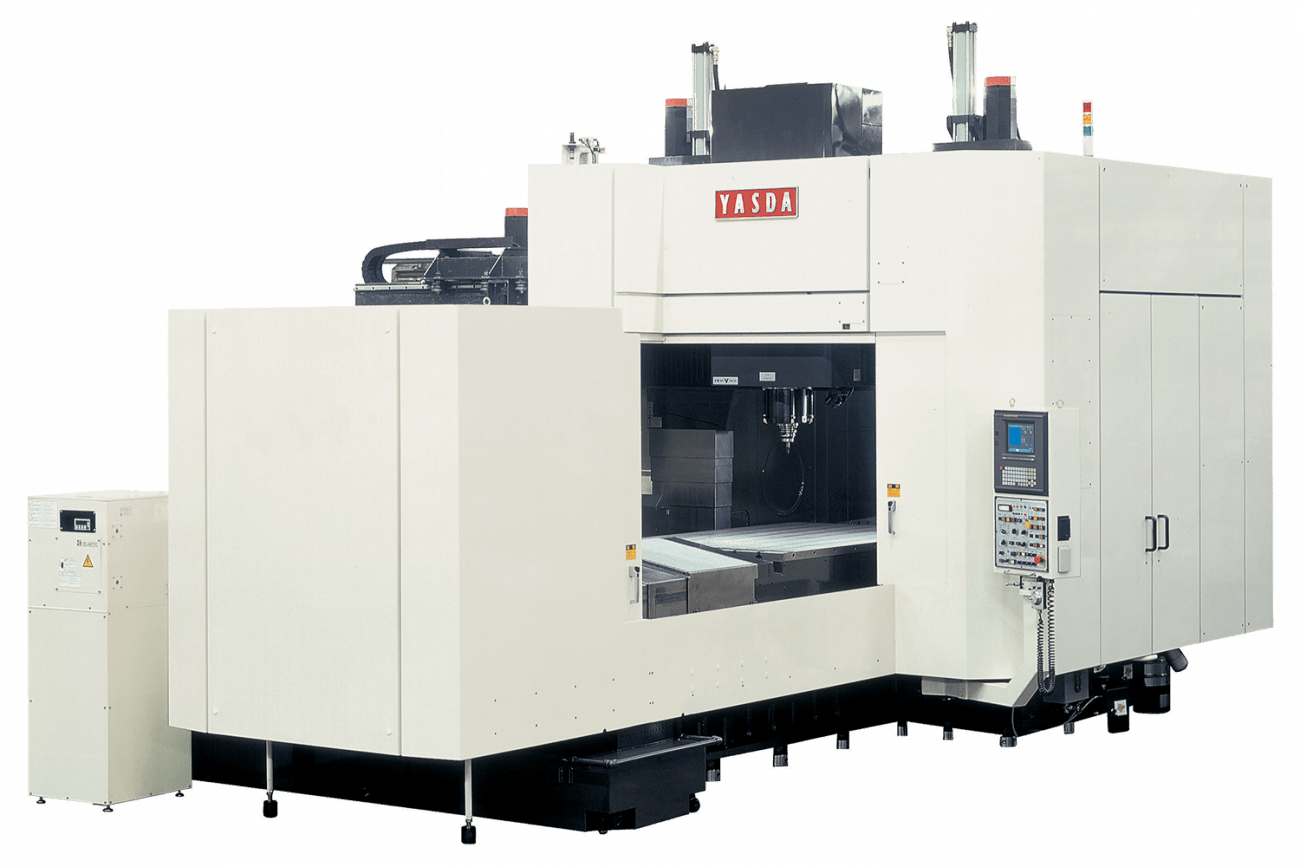

The YASDA CNC Jig Borer YBM – 1224V is a highly rigid, bridge-type machining center, developed for high precision machining, high speed machining of medium to large-sized parts, and high accuracy contour-milling for die and mold applications.
Request Information
Or call 1-877-668-4262
Product Details
Features & Benefits
- Z-axis Movement with Cross Rail
- Exclusive Hybrid Slideway
- Solid Bridge Construction
- Direct Drive System
- High Precision Rotation
- Thermal Distortion Stabilizing System
- Improved Heavy Cutting Capability
- Complex 3-dimensional Contouring and Various Machining can be Performed Precisely and Powerfully
Technical Data
Travel
- X-Axis Travel
- 70.9 (1800) in (mm)
- Y-Axis Travel
- 47.2 (1200) in (mm)
- Z-Axis Travel
- 23.6 (600) in (mm)
- Distance from Table Surface to Spindle
- 7.9-31.5 (200-800) in (mm)
Feed Rate
- Feed Rate
- 0.04-394 (1-10000) in/min (mm/min)
Table
- Table Working Surface
- 70.9x47.2 (1800x1200) in (mm)
- Table Loading Capacity
- 8819 (4000) lbs (kg)
Spindle
- Spindle Type
- SA50-10000-22 -
- Spindle Speed Range
- 50-10000 rpm (opt)
- Spindle Taper
- N.T.No.50 -
Tooling
- Number of Tools
- 32 std (opt)
- Maximum Tool Weight
- 44 (20) lbs (kg)
- Maximum Tool Length
- 13.8 (350) in (mm)
- Maximum Tool Diameter
- ø 3.9 (100) in (mm)
General
- Machine Weight
- 63934 (29000) lbs (kg)
- Machine Control
- Fanuc 15-M -
