Yasda

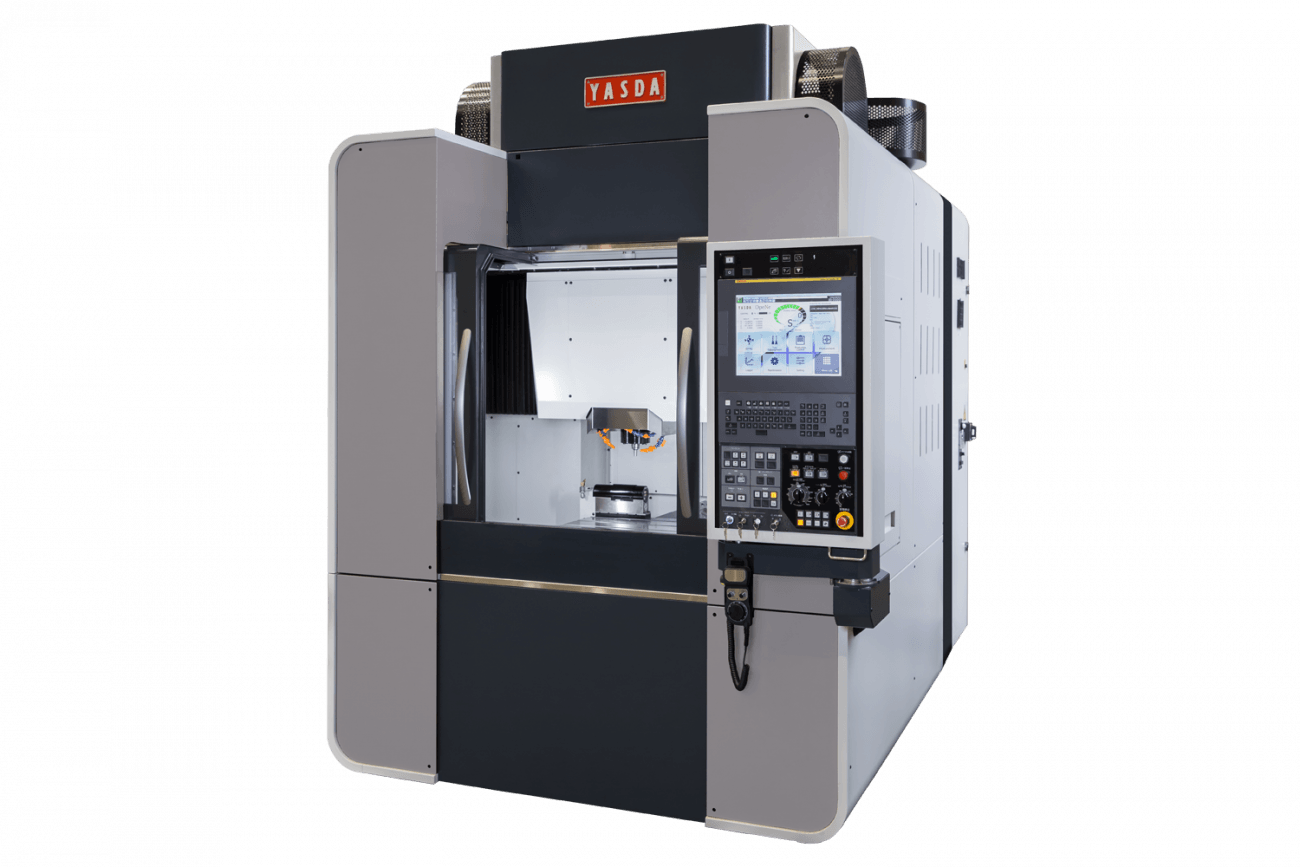

YMC650

YASDA Micro Center YMC650 is a state-of-the-art high-end machine, which fits the rapidly increasing demands for ultra-precision and high surface quality milling. All controlled axes (X, Y, and Z) driven by highspeed linear motors, highly rigid symmetric frame design and a unique thermal distortion stabilizing system which sustains machining accuracy in long cycle time operation, will assure unsurpassed high accuracy and excellent motion performance in various applications. YMC650 provides the best solution for future demands for ultra-precision and high surface quality machining.

Product Details

Features & Benefits

• X/Y/Z axis controlled by high-speed linear motors
• Symmetrical H-shaped column
• Spindle head symmetrical longitudinally and horizontally
• Raised bed sides for increased rigidity
• Low centroid X/Y table
• Ultra precision linear guides
• High precision positioning
• Large capacity HSK-E32 spindle taper
• Superior part surface finishes
• Positioning accuracy +/- 1μm
• Thermal distortion stabilizing system for sustaining high-precision machining
• High-speed positioning
• Large cutting tool capacity

Technical Data

Travel

X-Axis
23.6 (600) in (mm)
Y-Axis
19.7 (500) in (mm)
Z-Axis
11.1 (280) in (mm)

Feed Rate

Rapid Traverse
788 (20) in/min (m/min)
Feedrate
472 (12000) in/min (mm/min)

Table

Table Working Surface
27.6x19.7 (700x500) in (mm)
Table Loading Capacity
441 (200) lbs (kg)

Spindle

Spindle Type
Self adjusting pre-load
Spindle Speed Range
200-40000 rpm
Spindle Taper
HSK-E32

Tooling

Number of Tools
32 (90)
Maximum Tool Weight
1.1 lbs (500g)
Maximum Tool Length
4.7 (120) in (mm)
Maximum Tool Diameter
ø 1.9 (50) in (mm)

General

Machine Weight
19842 (9000) lbs (kg)
Machine Control
FANUC 31i-B5 iHMI
