Yasda
PX-30i

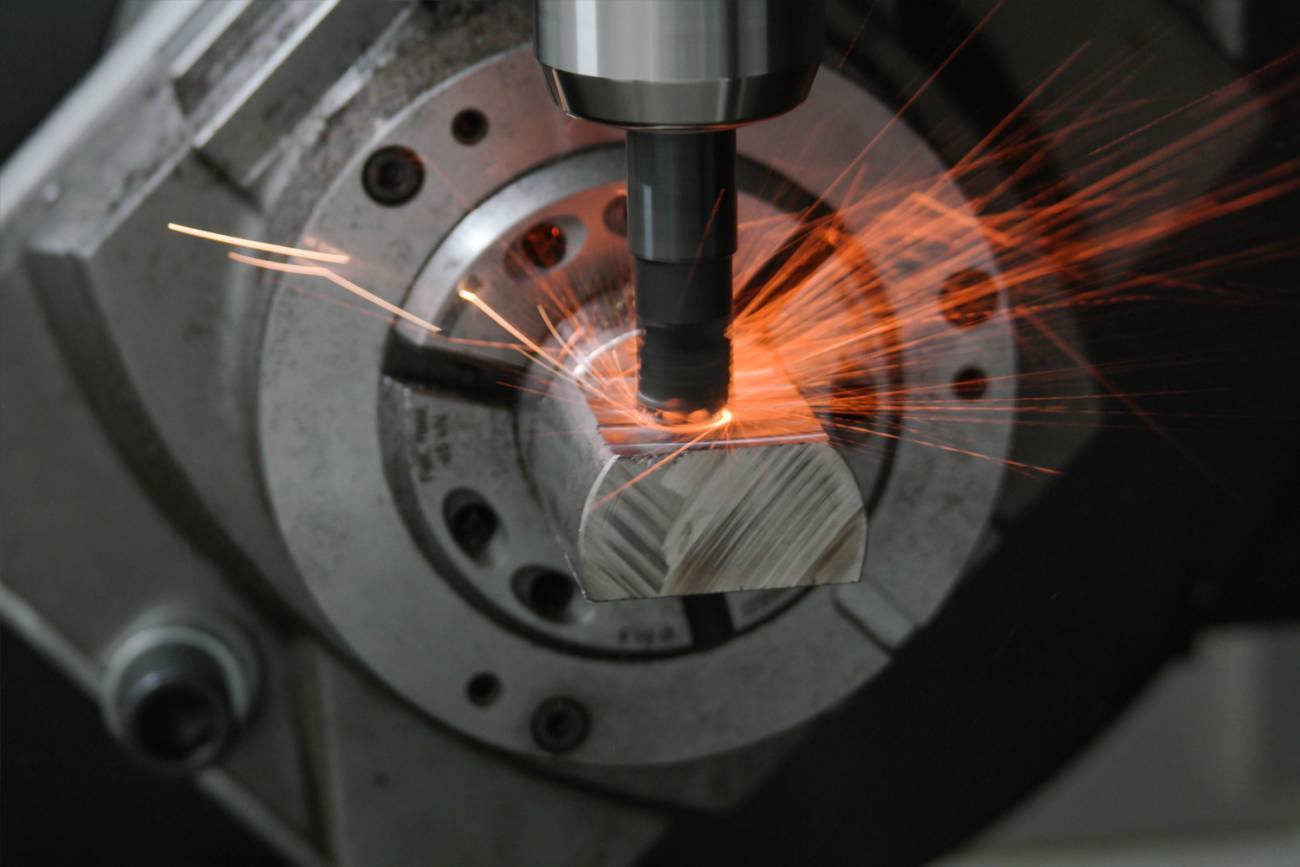

YASDA developed the 5-axis PX30i machine to supply customers with a top quality, highly reliable machine tool for the machine shop market and OEM users. The PX30i is outstanding in versatile 5-axis applications, precision in parts, drilling, face milling, boring, milling from and also excellent for hardened steel, tough materials like titanium and inconel. The PX30i has an excellent design for automation, usability and productivity.
Request Information
Or call 1-877-668-4262
Product Details
Features & Benefits
- 5 Axis High Precision Vertical Machining Center
- Large Work Envelope
- High Torque Spindle
- High Speed Direct Drive Rotary Axis

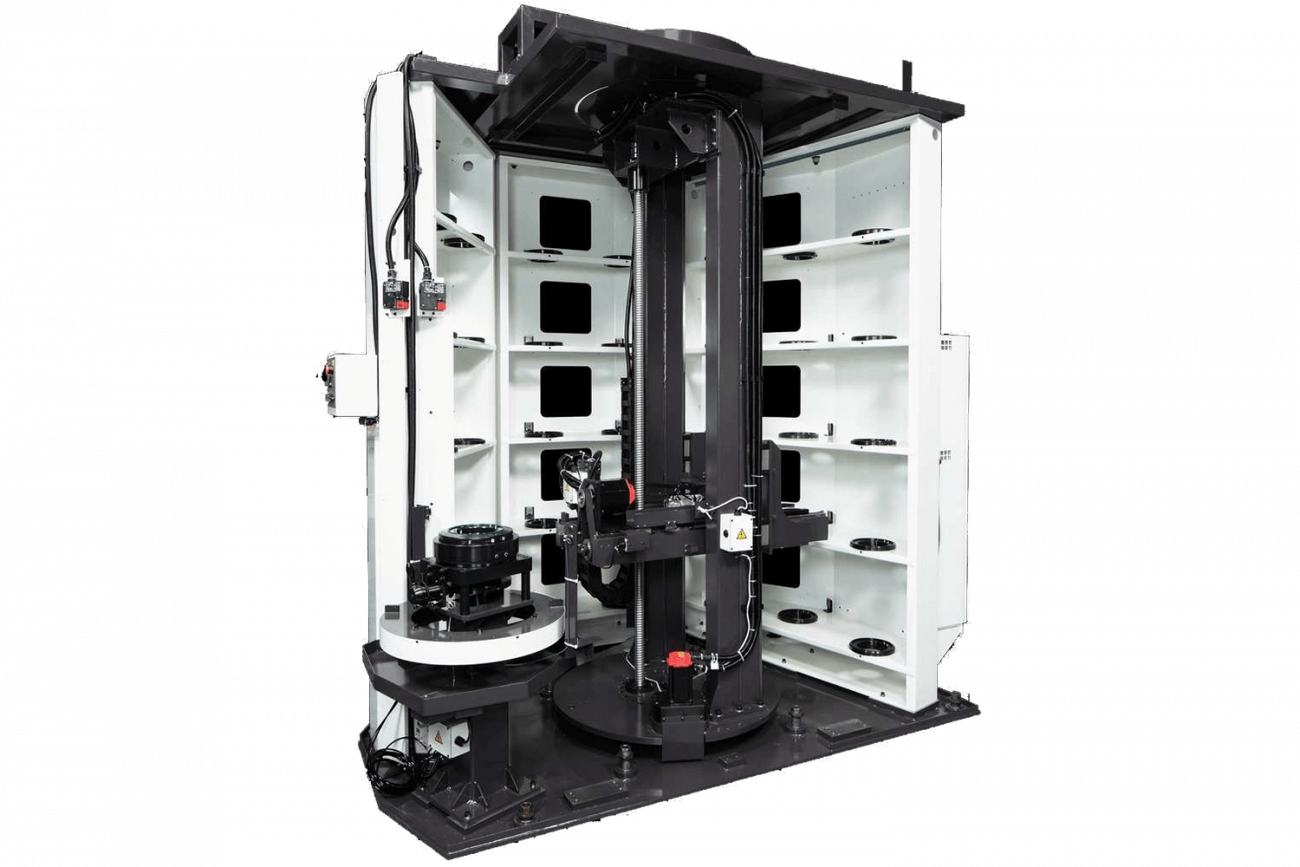

- Self-contained Multi Pallet Stacking System
- Methods Tool Management System with Balluf Read Write
- Methods Pallet Scheduling System
- Space Saving Footprint
- System 3R Coupling for Pallet Clamping

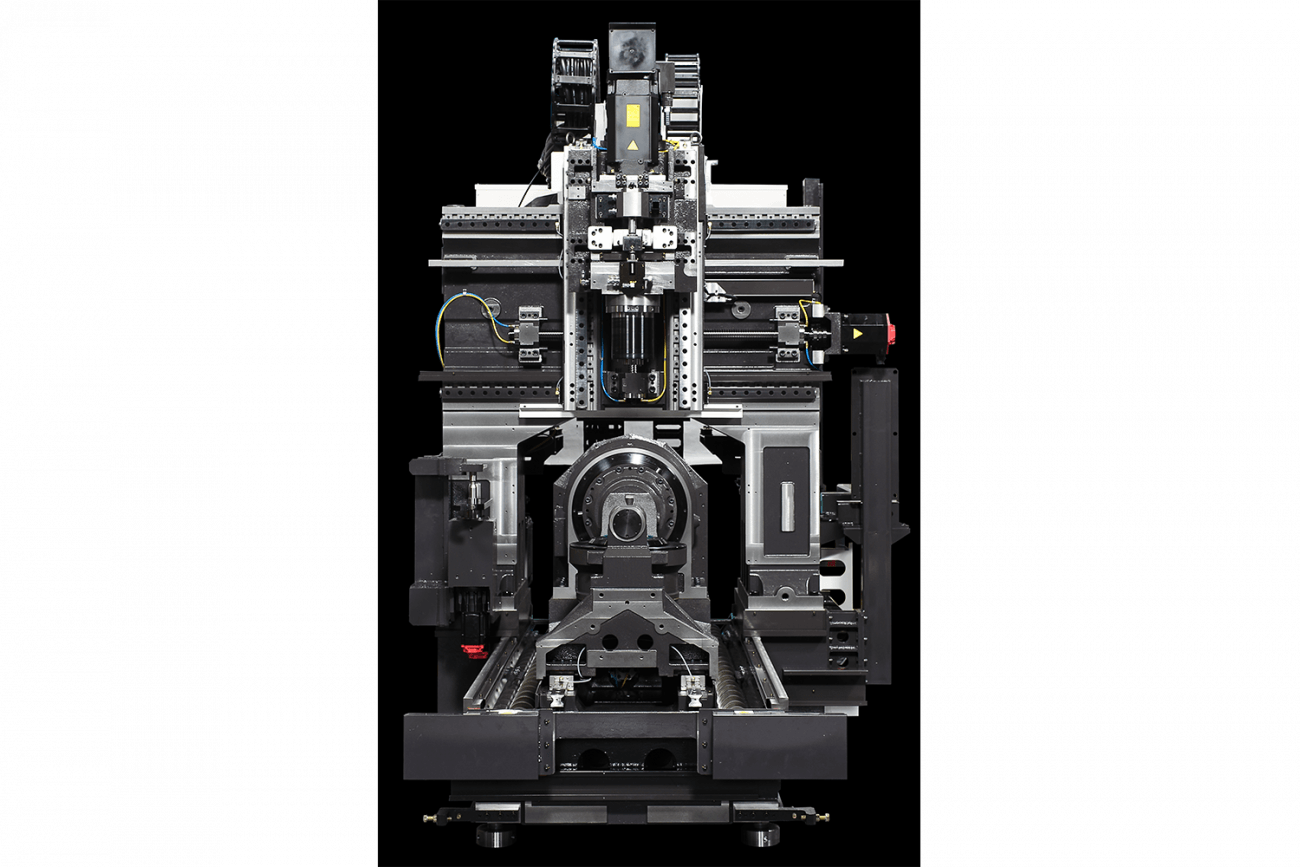

- Rigid Machine Structure for Machining Various Material Types
- Optical Scale Feedback for Precise Positioning
- Probing Systems
Technical Data
Travel
- X-Axis Travel
- 26.8 (680) in (mm)
- Y-Axis Travel
- 15.8 (400) in (mm)
- Z-Axis Travel
- 19.7 (500) in (mm)
- Distance from Table Surface to Spindle
- 19.7 (500) in (mm)
- Distance from Table Center to Spindle Nose Face
- 19.7 (500) in (mm)
- B-Axis (tilt table)
- +65 to -125 degrees
- C-Axis (rotary table)
- 360º (0.0001º)
Feed Rate
- X, Y, and Z Axes Rapid Traverse
- 2362 (60) in/min (m/min)
- B-Axis (tilt) Rapid Traverse
- 75 rpm with DD motors
- C-Axis (rotary) Rapid Traverse
- 125 rpm with DD motors
- Feed Rate
- 788 (20000) in/min (mm/min)
Table
- Table Working Surface
- 7.3x7.3 (185x185) in (mm)
- Table Loading Capacity
- 177 (80) lbs (kg)
- Max Diameter of Workpiece
- ø 15.8 (400) in (mm)
- Min. Table Indexing Angle
- -125 + 65 degree
Spindle
- Spindle Type
- Self adjusting pre-load -
- Spindle Speed Range
- 200-20000 rpm (opt)
- Spindle Taper
- 7/24 taper No. 40 (Big Plus) -
Tooling
- Number of Tools
- 314 std
- Maximum Tool Weight
- 22 (10) lbs (kg)
- Maximum Tool Length
- 12 (300) in (mm)
- Maximum Tool Diameter
- ø 3.2 (80) in (mm)
General
- Machine Weight
- 41227 (18700) lbs (kg)
- Machine Control
- FANUC 31i-B5-10.4" Color LCD
