Yasda

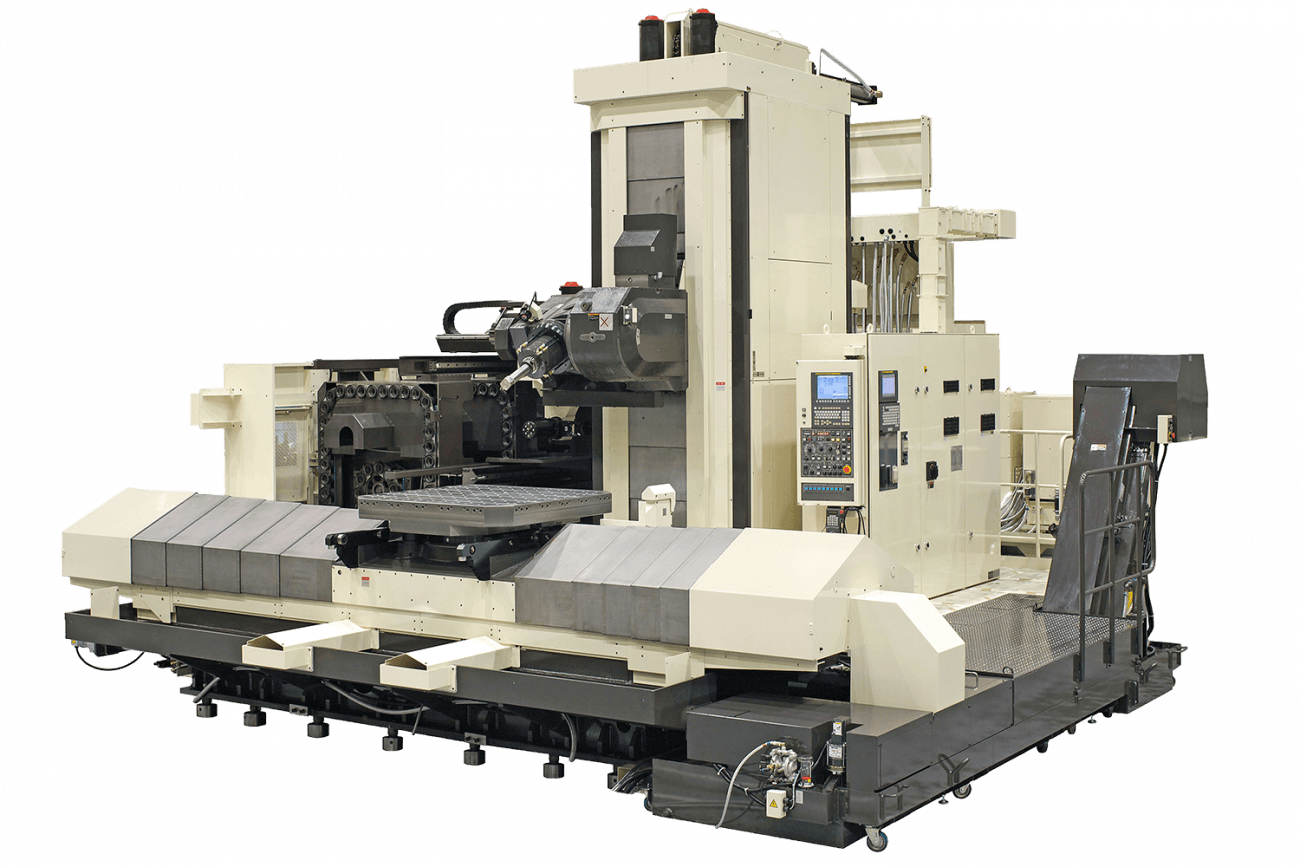

YBM 10T-TH

YBM 10T-TH is a heavy duty machine which provides high-speed and high-precision processing for the world’s heaviest work (5 tons). To adapt to industrial trends and changes in requests for parts processing and enable a wider variety of processing with a higher degree of efficiency, this YBM10T includes a newly developed, compact, and powerful built-in spindle. It is configured with a large simultaneous five-axis controller of the tilting head type, as YASDA’s new product lineup.

Request Information

Or call 1-877-668-4262

Download Brochure

Product Details

Features & Benefits

  • Preload Self-adjusting Spindle Mounted. Both heavy duty cutting at low spindle speed and highly accurate rotation with low-heat generation at high spindle speed are achieved
  • A Two-motor Torque Tandem Control Spindle (option) mounted for YBM10T-100TT
  • Thermal Distortion Stabilized System Equipped. This enables stable high-precision processing for an extended period of time by minimizing the machine-body thermal distortion caused by the factory environment
  • YASDA’s Unique Advanced Function “HAS-3” Equipped. This enables extremely high-precision processing at high speed by accurately reflecting NC data
  • High-precision Five-axis Processing Support Function “i-CAL” Equipped. This enables high-precision and high-grade five-axis processing by accurately searching for the central coordinates of the important “rotation axis” and “spindle” which exert influence on processing accuracy and automatically sets them
  • High Precision Pallet with High Rigidity
  • Torque Tandem Control Spindle
  • Self-adjusting Spindle Equipped with Innovative Functions
  • High Rigidity, High Precision Drive and Guide System

Technical Data

Travel

X-Axis Travel
59 (1500) in (mm)
Y-Axis Travel
59 (1500) in (mm)
Z-Axis Travel
71 (1800) in (mm)

Table

Table Working Surface
39.4x39.4 (1000x1000) in (mm)
Table Loading Capacity
11023 (5000) lbs (kg)
Max Diameter of Workpiece
ø 53.2 (1350) in (mm)

Spindle

Spindle Type
SA50-6000-30 -
Spindle Speed Range
50-6000 rpm (opt)
Spindle Taper
7/24 NT No. 50 -

Tooling

Number of Tools
60 std (opt)
Maximum Tool Weight
44 (20) lbs (kg)
Maximum Tool Length
17.3 (440) in (mm)
Maximum Tool Diameter
ø 11.8 (300) in (mm)

General

Machine Weight
104720 (47500) lbs (kg)
Machine Control
FANUC 31i-B5 -
