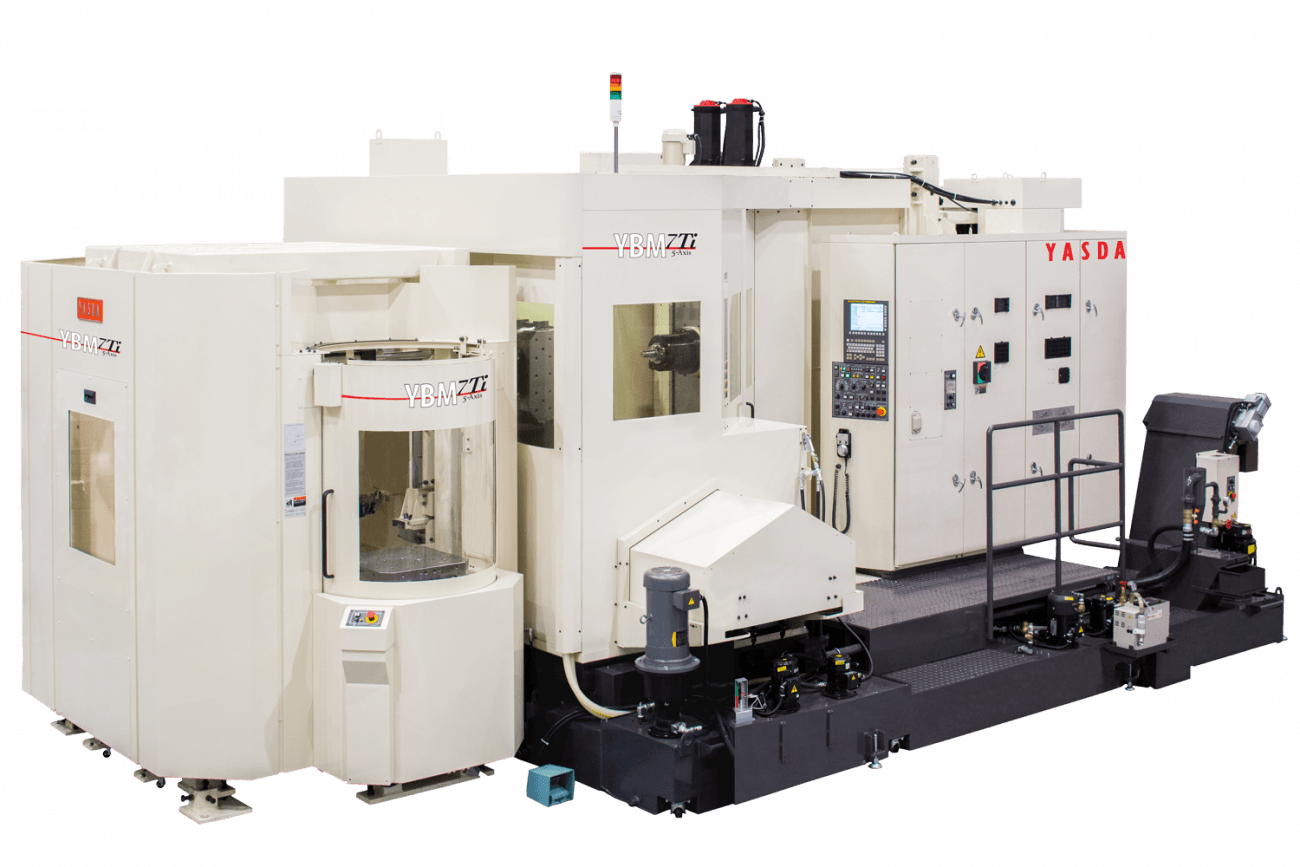

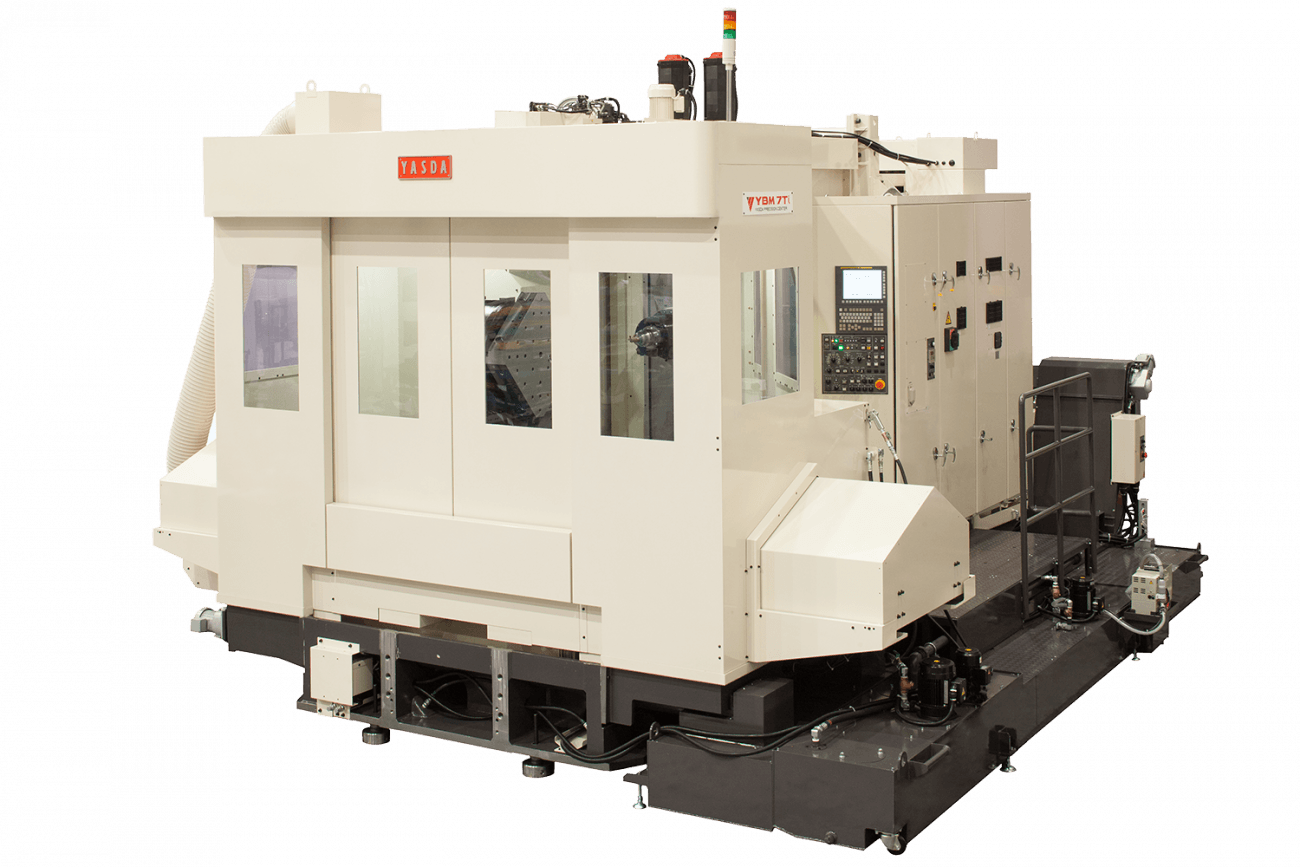

The YASDA YBM 7T and 8T precision centers are highly acclaimed by users all over the world for its high precision turn boring performance.

Request Information

Or call 1-877-668-4262

Download Brochure

Product Details

Features & Benefits

  • High Speed and High Precision Positioning with Hybrid Box Guide Ways
  • Thermal Distortion Stabilizing Systems: YASDA’s countermeasures reduce thermal influence and maintain high rigidity and high precision, for continuous high-speed machining
  • High Performance Spindle with Pre-load Self-adjusting System: YASDA’s unsurpassed spindle technology realizes high precision and high quality machining through the entire speed range
  • Highly Rigid Construction
  • Direct Drive Spindle with Preload Self-adjusting System
  • Centrally positioned Spindle Head for Higher Positioning Accuracy

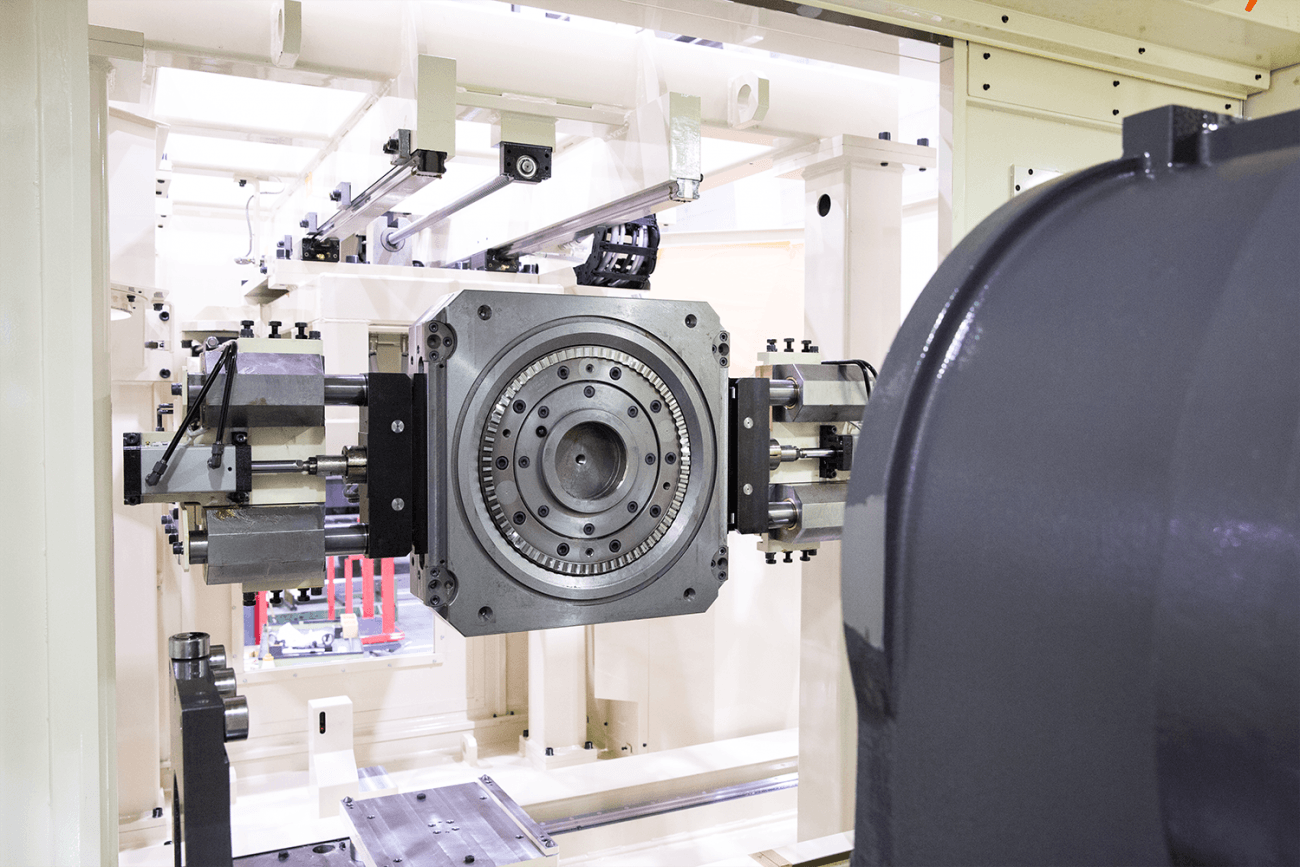

  • Table Indexing and Paller
  • Pallet Chucking Mechanism for Unsurpassed Repeatability and Rigidity
  • Automatic Tool Changer for Heavy Tools
  • Tool Holder Cleaning Device with Brush and Blower

Technical Data


X-Axis Travel
49.2 (1250) in (mm)
Y-Axis Travel
39.4 (1000) in (mm)
Z-Axis Travel
43.3 (1100) in (mm)

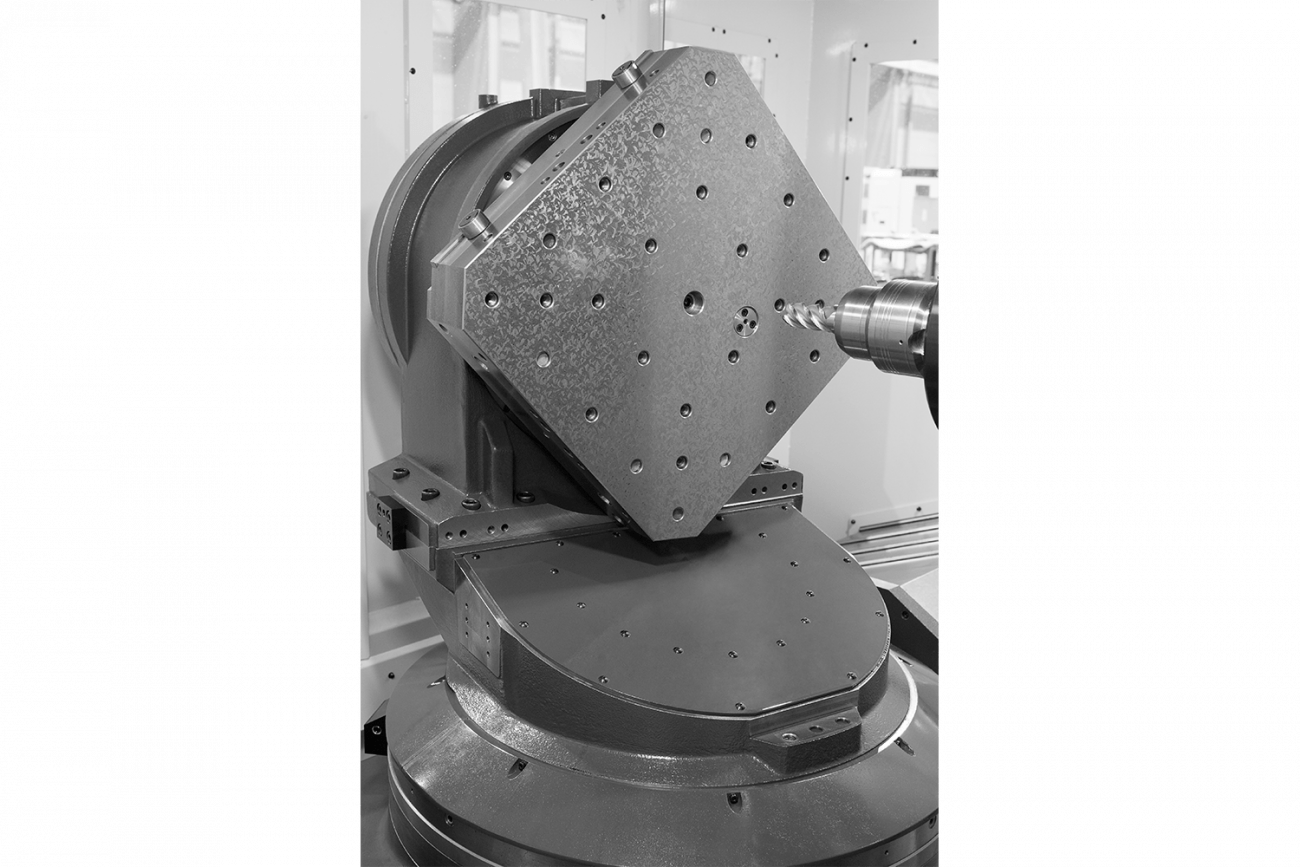

B-Axis Travel
+110 ~ -110 degrees
C-Axis Travel (rotary table)
360º (0.0001º)
Distance from Table Surface to Spindle
2.8-34.3 (70-870) in (mm)
Distance from Table Center to Spindle Nose Face
5.9-37.4 (150-950) in (mm)

Feed Rate

X-Axis Rapid Traverse
45,000 mm/min ( 1,771 ipm)
Y and Z Axes Rapid Traverse
48,000 mm/min (1,889 ipm)
B and C Axes Rapid Traverse
B: 70 / C: 100 rpm with DD motors
X, Y and Z Axes Cutting Feed Rate
Max. 15,000 mm/min ( 590ipm) with HAS
B and C Axes Cutting Feed Rate
B: 50 / C: 60 rpm with HAS


Table Working Surface
24.8x24.8 (630x630) in (mm)
Table Loading Capacity
2646 (1200) lbs (kg)


Spindle Type
SA50-10000-22 -
Spindle Speed Range
50-10000 rpm (opt)
Spindle Taper
7/24 taper No. 50 (BT50) -


Number of Tools
60 (90, 120,180,240,300) std (opt)
Maximum Tool Weight
44 (20) lbs (kg)
Maximum Tool Length
17.4 (440) in (mm)
Maximum Tool Diameter
ø 14.2 (360) in (mm)


Machine Weight
39684 (18000) lbs (kg)
Machine Control
FANUC 31i-B5-10.4" Color LCD -
