YMC430 RT10

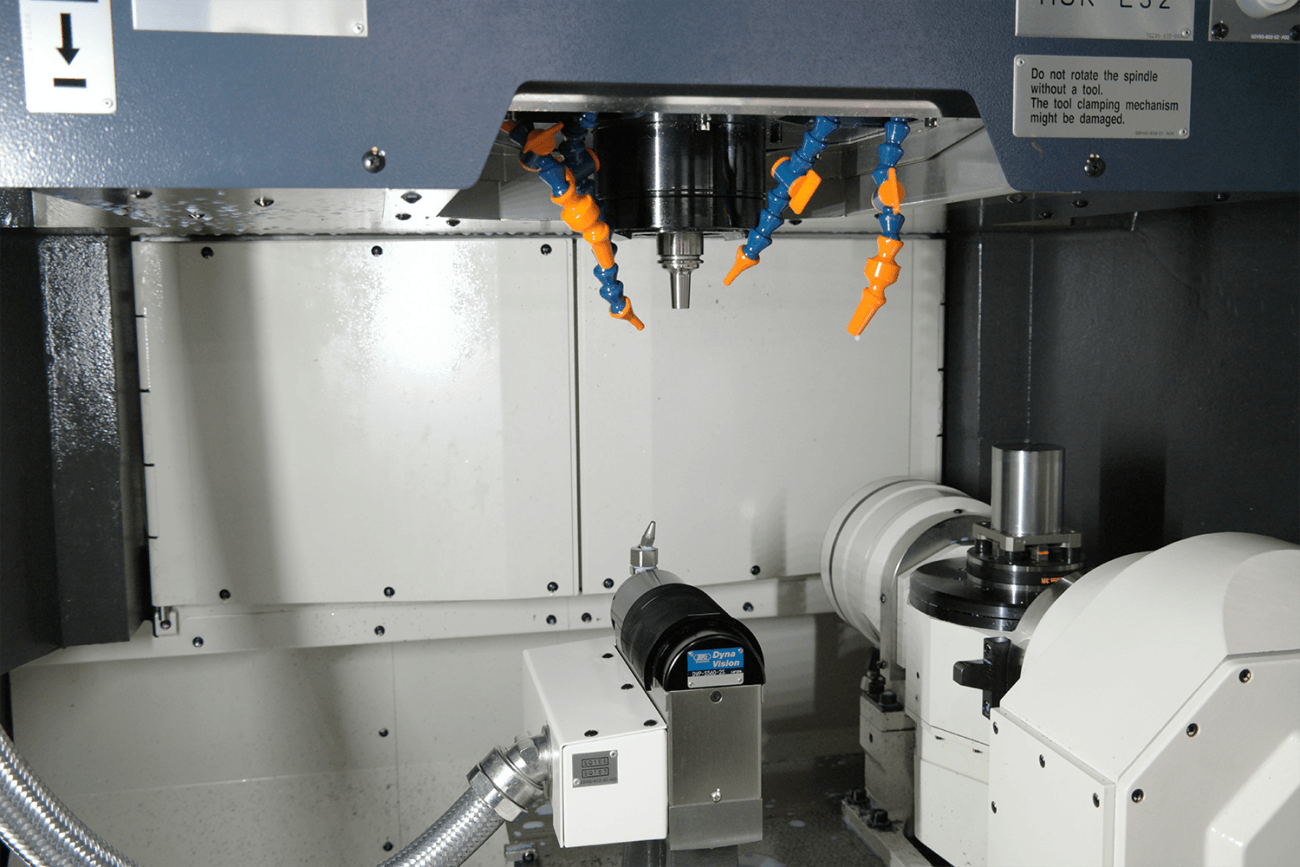

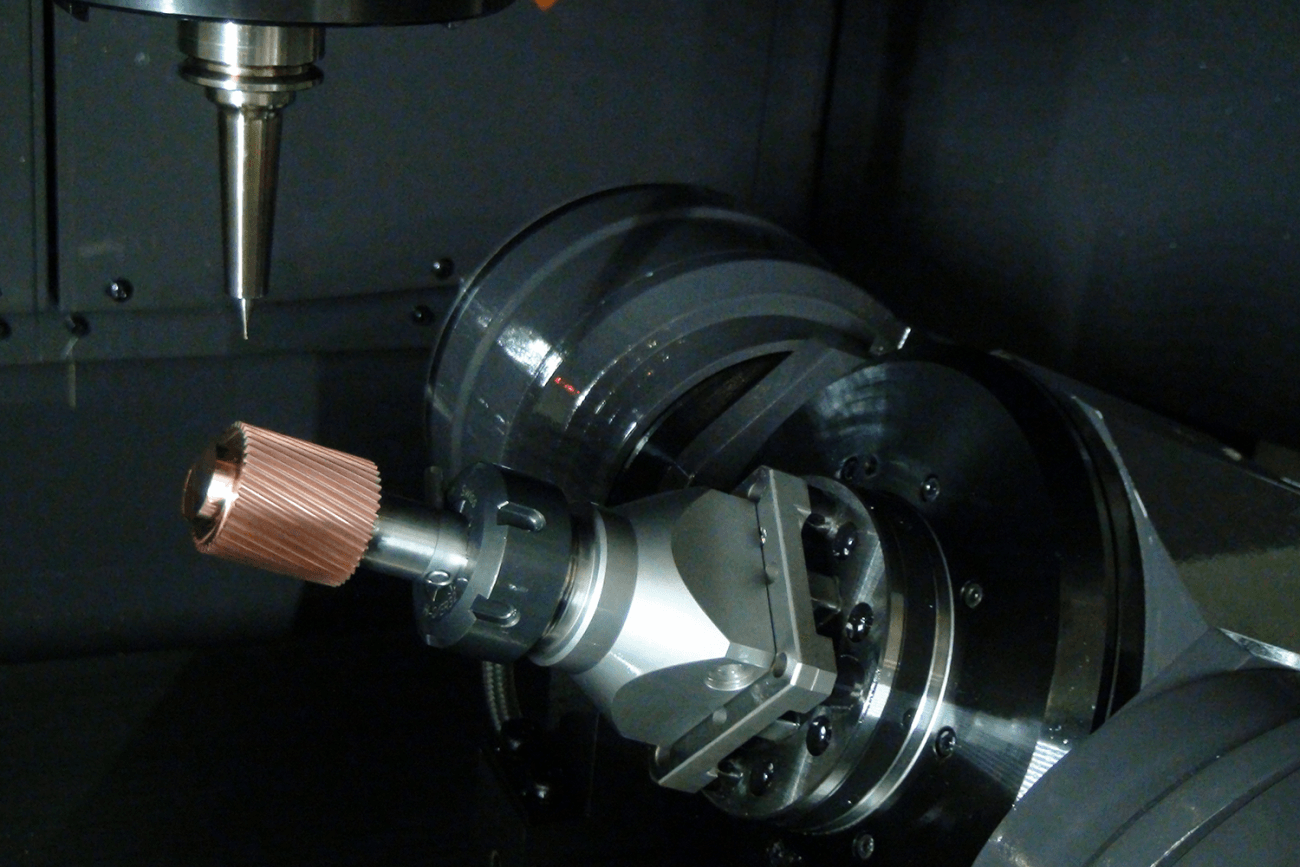

The Yasda YMC430, high precision machining center is integrated with a high precision rotary tilting table with direct drive motors. This combination allows the machining of precise multiple face indexing in one set up, and 5-axis simultaneous micro machining of complex parts.

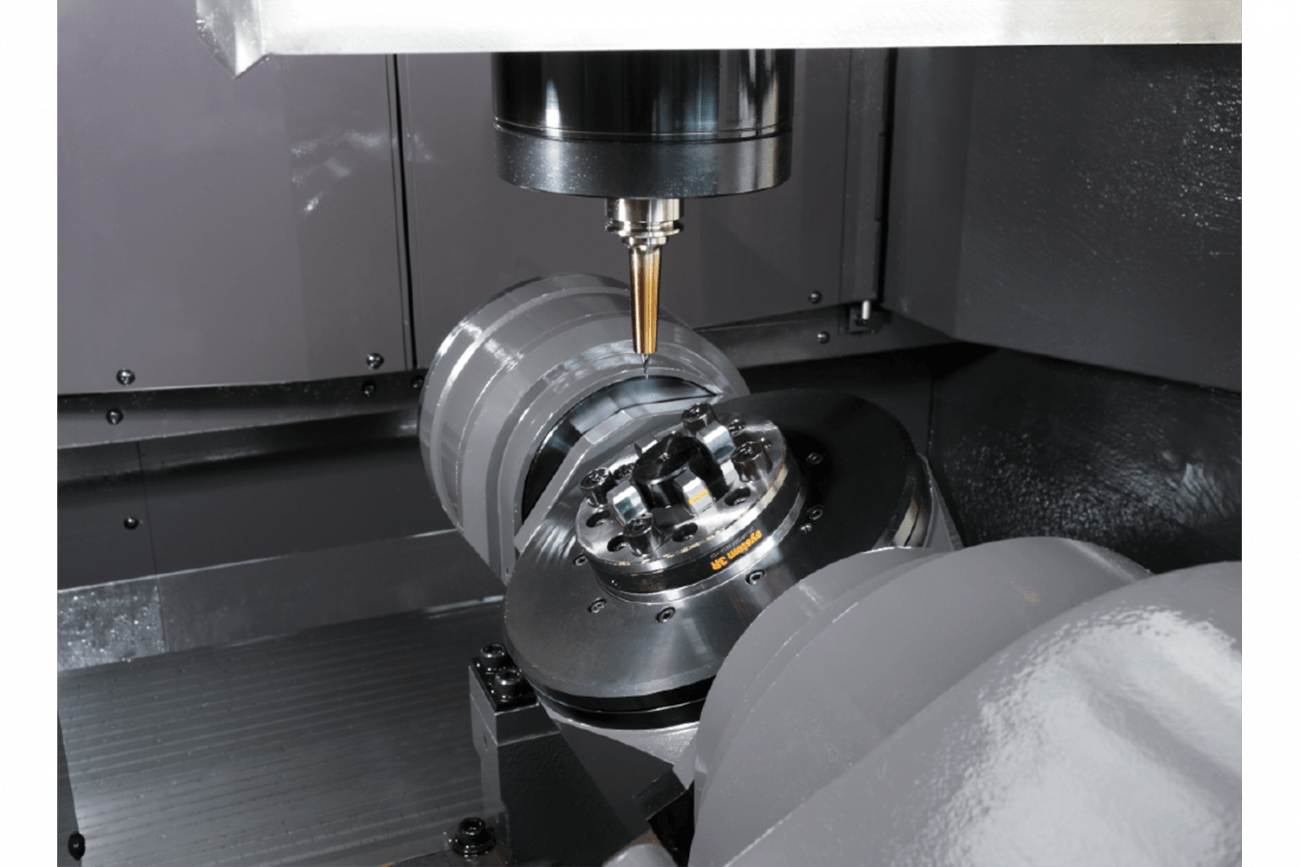

Close-up photo of a YMC-430 at work cutting a pattern in steel

Product Details

Features & Benefits

  • X/Y/Z Axis Controlled by High Speed Linear Motors
  • Symmetrical H-shaped Column
  • Spindle Head Symmetrical Longitudinally and Horizontally
  • Raised Bed Sides for Increased Rigidity
  • Low Centroid X/Y Table
  • Ultra Precision Linear Guides
  • High Precision Positioning
  • Large Capacity HSK-E32 Spindle Taper
  • Superior Part Surface Finishes
  • Positioning Accuracy +/- 1μm
  • Thermal Distortion Stabilizing System for Sustaining High-precision Machining
  • High Speed Positioning
  • Large Cutting Tool Capacity

Technical Data


X-Axis Travel
16.5 (420) in (mm)
Y-Axis Travel
11.8 (300) in (mm)
Z-Axis Travel
9.8 (250) in (mm)
B-Axis (tilt table)
+100 to -10 degrees
C-Axis (rotary table)
360º (0.0001º)

Feed Rate

X, Y, and Z Rapid Traverse
20,000 mm/min (787ipm)
B-Axis (tilt) Rapid Traverse
100 rpm with DD motors
C-Axis (rotary) Rapid Traverse
200 rpm with DD motors
X, Y and Z Axes Cutting Feed Rate
Max. 12,000 mm/min (472ipm) with HAS
B-Axis (tilt) Cutting Feed Rate
40 rpm with HAS
C-Axis (rotary) Cutting Feed Rate
40 rpm with HAS


Table Working Surface
23.6x13.8 (600x350) in (mm)
Table Loading Capacity
33 (15) lbs (kg)


Spindle Type
Self adjusting pre-load
Spindle Speed Range
200-40000 rpm (opt)
Spindle Taper
E-32 -


Maximum Tool Weight
1.1 lbs (500g)
Number of Tools
32 (90) std (opt)


Machine Control
FANUC 31i-B5 -
