Kiwa
KH-4100

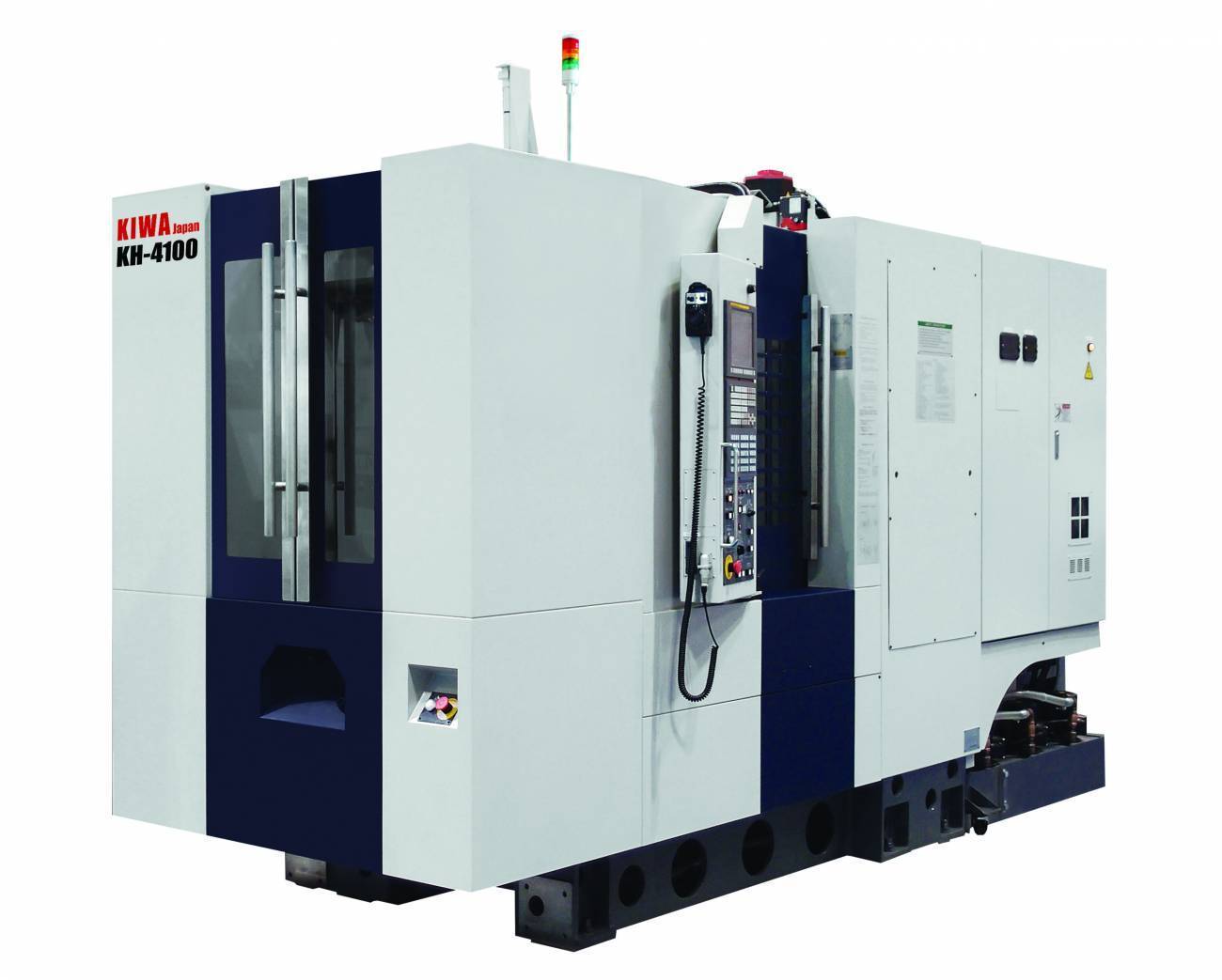

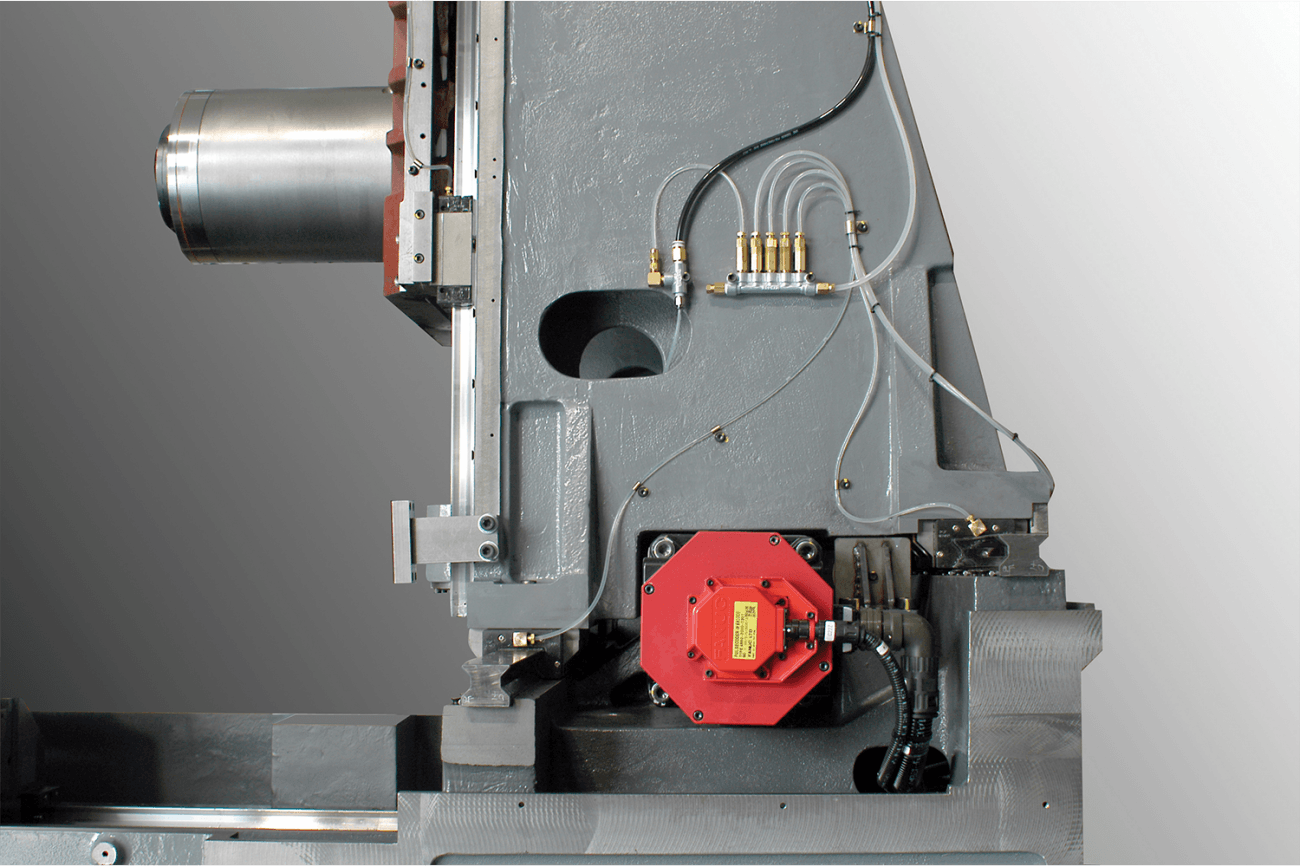

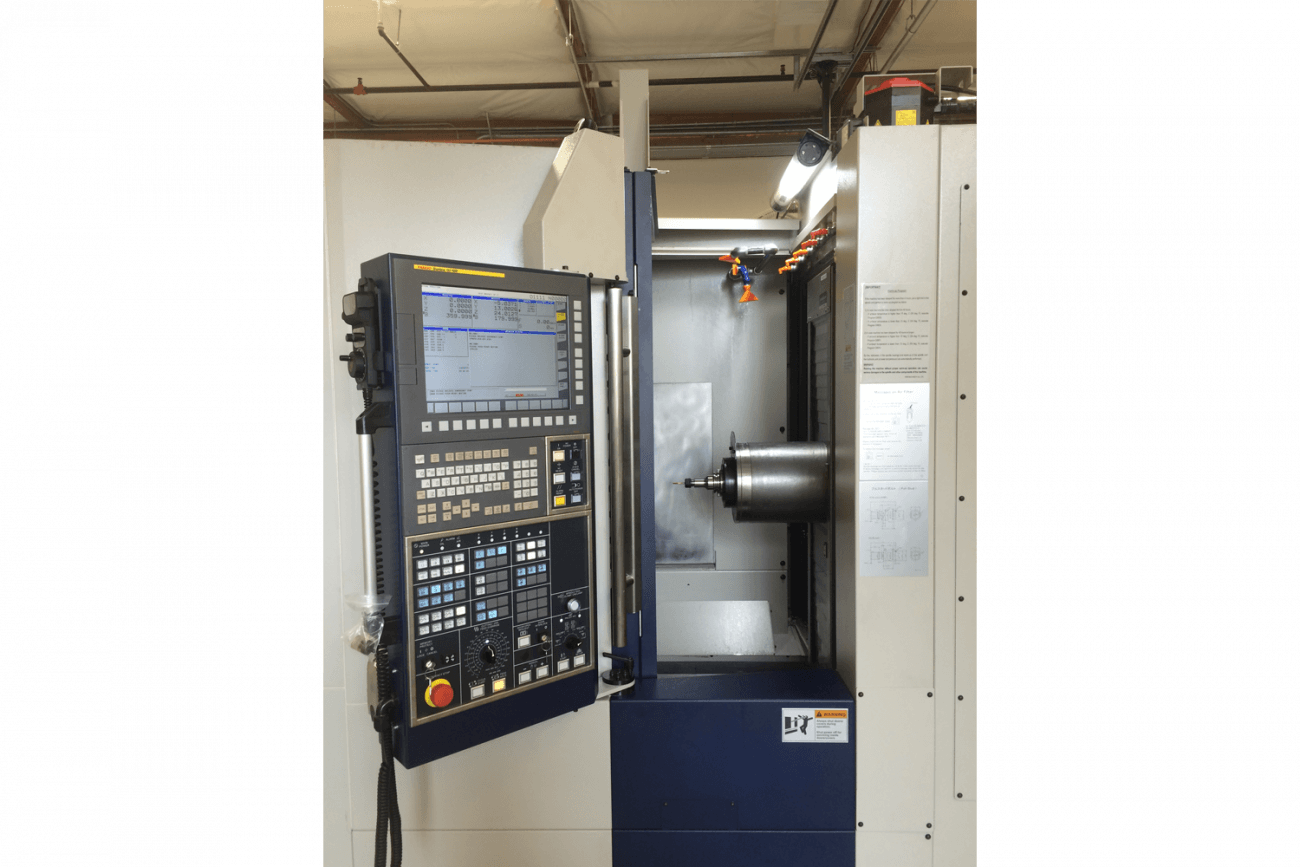

KIWA KH-4100 is a high-performance horizontal machining center with full rotary B-axis can be installed in a space for a vertical machining center. The KH-4100 is designed as slim as possible.

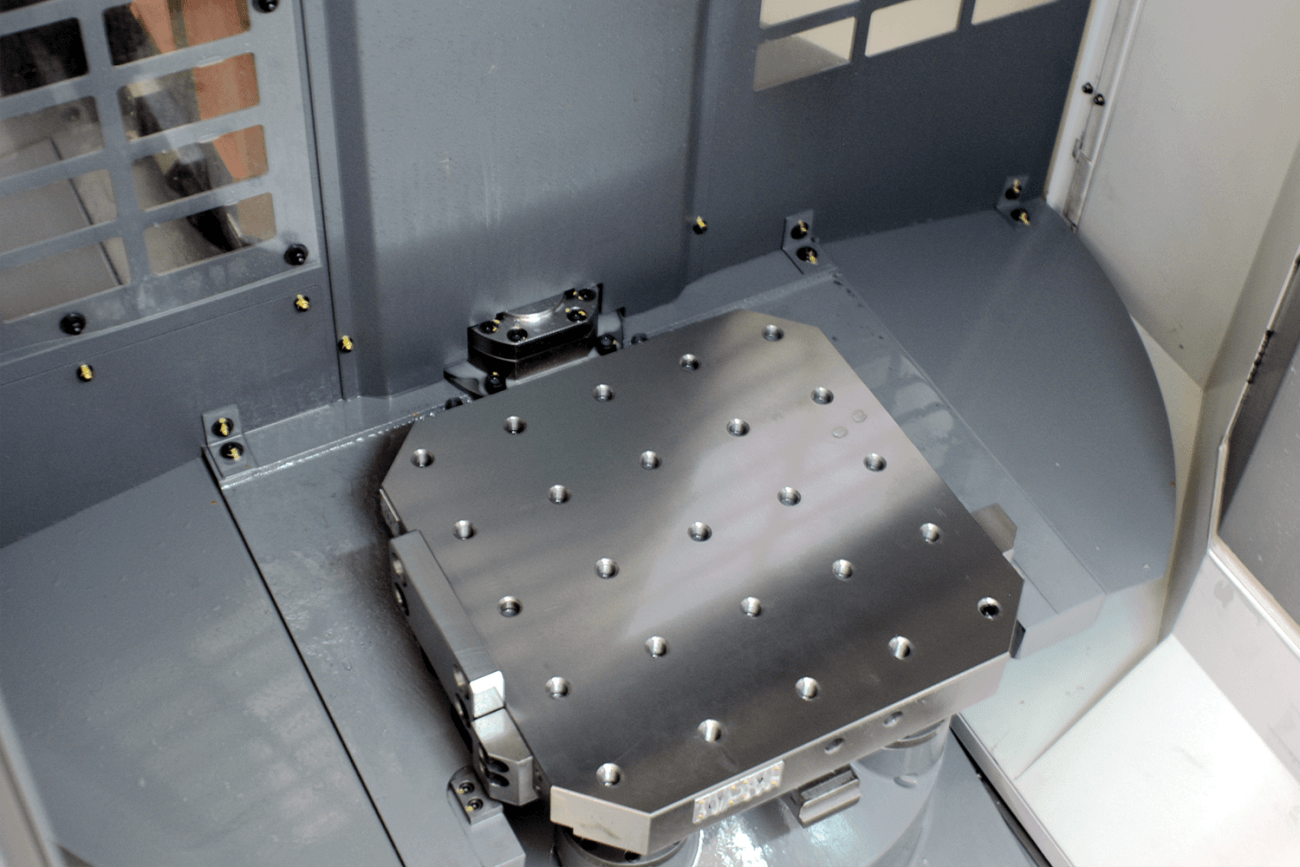

Compared to KIWA HMC model KH-4500kai, the KH-4100 saves floor space by 45%. In spite of the compact design, the KH-4100 is equipped with full specs for a variety of workpieces and factory automation equipment. The KH-4100 is equipped with a wide center trough in the machining area and a strong bed coolant wash. Chips will go directly down the center trough for disposal at the rear of the machine. Sheet metal covers on both sides are steeply slanted to guide chips to the trough.
Request Information
Or call 1-877-668-4262
Product Details
Features & Benefits
- (4) Simultaneously Controlled Axes
- Provision for Coolant Through Spindle
- Coolant Chip flow System
- Spindle Oil Cooler
- Pallet and Chip Wash
- Chip Conveyor – LNS-Turbo MH500
- Tool Life Management
- AICC2 400 block look ahead
- 1280 Meter / 512 kB Memory
- Helical Interpolation
- 200 Tool Off Sets
- Macro Programming
Technical Data
Travel
- X-Axis Travel
- 20.1 (510) in (mm)
- Y-Axis Travel
- 20.1 (510) in (mm)
- Z-Axis Travel
- 20.1 (510) in (mm)
- 4th Axis Travel (Rotary Table)
- 0 to 360 degrees

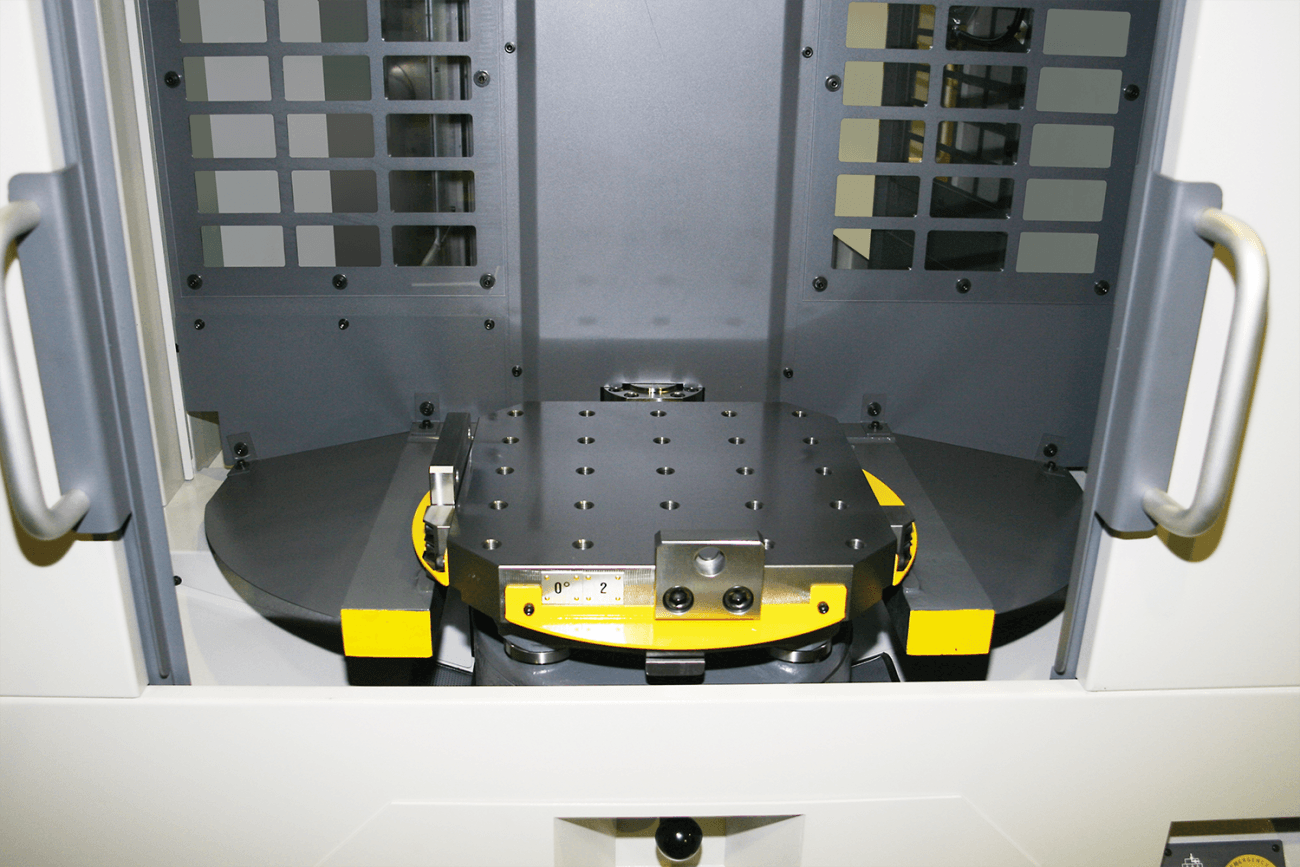

Pallet
- Pallet Surface to Spindle Center
- 2APC: 2.0-22.0 (50-560) (single pallet: 6.9-27.0 (175-685)) in (mm)
- Pallet Center to Spindle Nose
- 3.9-24 (100-610) in (mm)
- Pallet Size
- 15.7x15.7 (400x400) in (mm)
- Pallet Load Capacity
- 1100 (500) lbs (kg)
- Max. Workpiece Size
- 21.7x33.5 (550x850) in (mm)
- Pallet change Time
- 12.5 sec
Feed Rate
- X-Axis Rapid Traverse
- 3149 (80) in/min (m/min)
- Y-Axis Rapid Traverse
- 3149 (80) in/min (m/min)
- Z-Axis Rapid Traverse
- 3149 (80) in/min (m/min)
- 4Th Axis
- 37 rpm
- Cutting Feed (X/Y/Z)
- 1181 (30) in/min (m/min)
Spindle
- Spindle Power
- 20 (15) HP
- Spindle Speed
- 15000
- Spindle Taper
- Cat 40
Tools
- Standard Number of Tools
- 60
- Maximum Tool Weight
- 17.6 (8) lbs (kg)
- Maximum Tool Length
- 15.7 (400) in (mm)
- Maximum Tool Diameter
- 3.3/5.5 (85/140) in (mm)
- Tool Changing Time- Tool to Tool
- 0.9 sec
General
- Coolant Tank Capacity
- 79.3 (300) gal (L)
- Machine Weight
- 2APC+60ATC: 16940 (7700)
- Machine Control
- FANUC 0i-MF -
