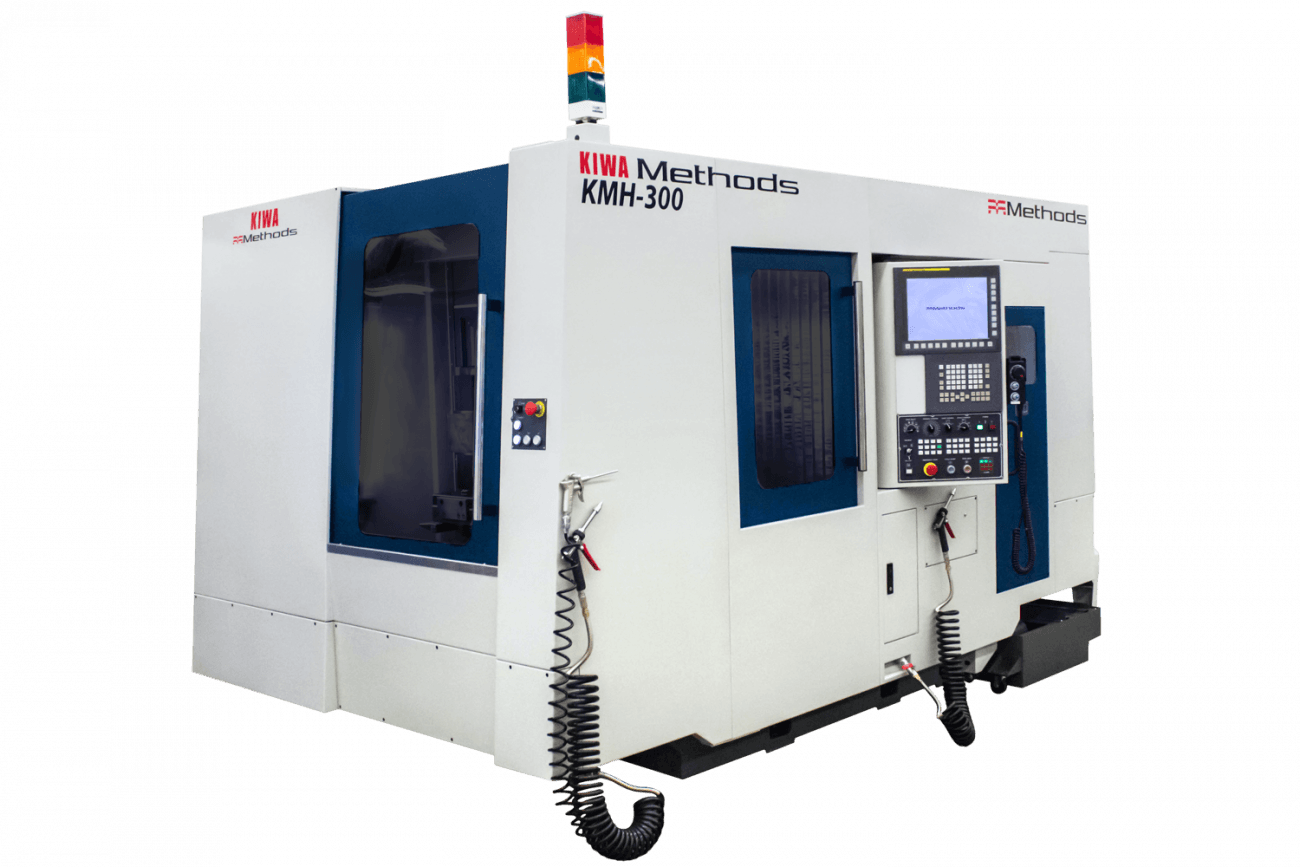

The KMH-300 Series offer an integrated full rotary B-Axis and a reliable FANUC Oi-MF control with a 15 in. LCD screen. The machine features excellent chip evacuation and easy access for set-up / maintenance. A spindle oil cooling system and coolant-through ball-screws are standard.

The KMH-300 has a compact footprint of 140 in. depth x 107 in. width including the chip conveyor.

Request Information

Or call 1-877-668-4262

Download Brochure

Product Details

Features & Benefits

  • Dual 320mm Pallets
  • Roller Guide Ways
  • 15HP/15,000rpm Direct Drive
  • Big Plus Spindle 30 Taper
  • 15” Fanuc LCD Screen
  • Coolant Through Ballscrews (CTB)

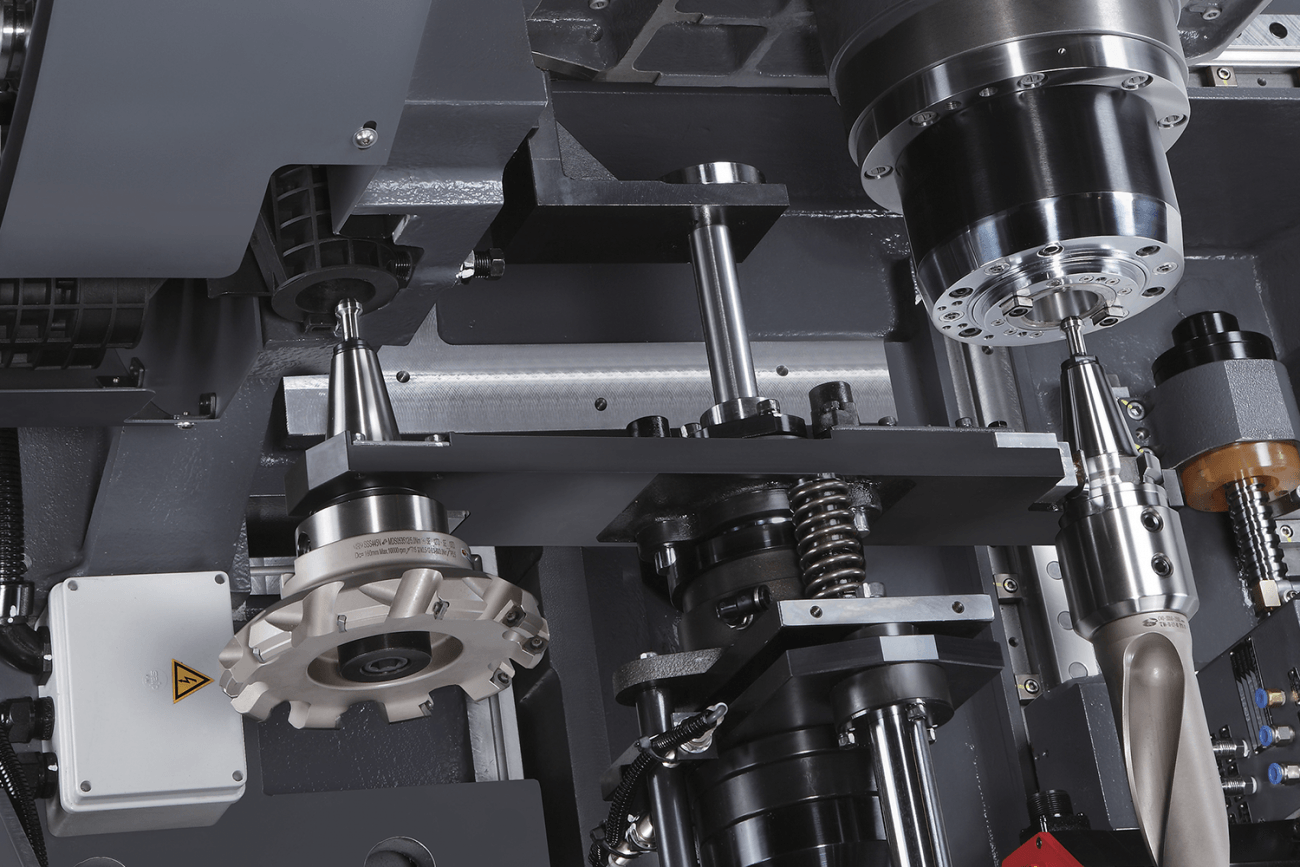

  • Integrated Full Rotary B-Axis
  • Excellent Chip Evacuation
  • Easy Access for Setup & Maintenance

Technical Data


X-Axis Travel
18.1 (460) in (mm)
Y-Axis Travel
18.1 (460) in (mm)
Z-Axis Travel
13.7 (350) in (mm)
4th Axis Travel (Rotary Table)
0-360 degrees


Pallet Surface to Spindle Center
2.36-20.4 (60-520) in (mm)
Pallet Center to Spindle Nose
2.36-16.1 (60-409) in (mm)
Pallet Size
12.9x12.9 (330x330) in (mm)
Pallet Load Capacity
550 (250) lbs (kg)
Max. Workpiece Size
16.9x18.7 (430x475) in (mm)
Pallet change Time
8 sec

Feed Rate

X-Axis Rapid Traverse
1968 (50) in/min (m/min)
Y-Axis Rapid Traverse
1968 (50) in/min (m/min)
Z-Axis Rapid Traverse
1968 (50) in/min (m/min)
4Th Axis
33 rpm
Cutting Feed (X/Y/Z)
787 (20) in/min (m/min)


Spindle Power
15 HP
Spindle Speed
15000 rpm (opt)
Spindle Taper
BT30 Taper -


Standard Number of Tools
30 std
Maximum Tool Weight
8.8 (4) lbs (kg)
Maximum Tool Length
7.9 (200) in (mm)
Maximum Tool Diameter
ø 2.36 (60) in (mm)
Maximum Tool Diameter- No Adjacent Tool
3.93 (100) in (mm)
Tool Changing Time- Tool to Tool
2.5 sec


Coolant Tank Capacity
80 (303) gal (L)
Machine Weight
13227 (6000) lbs (kg)

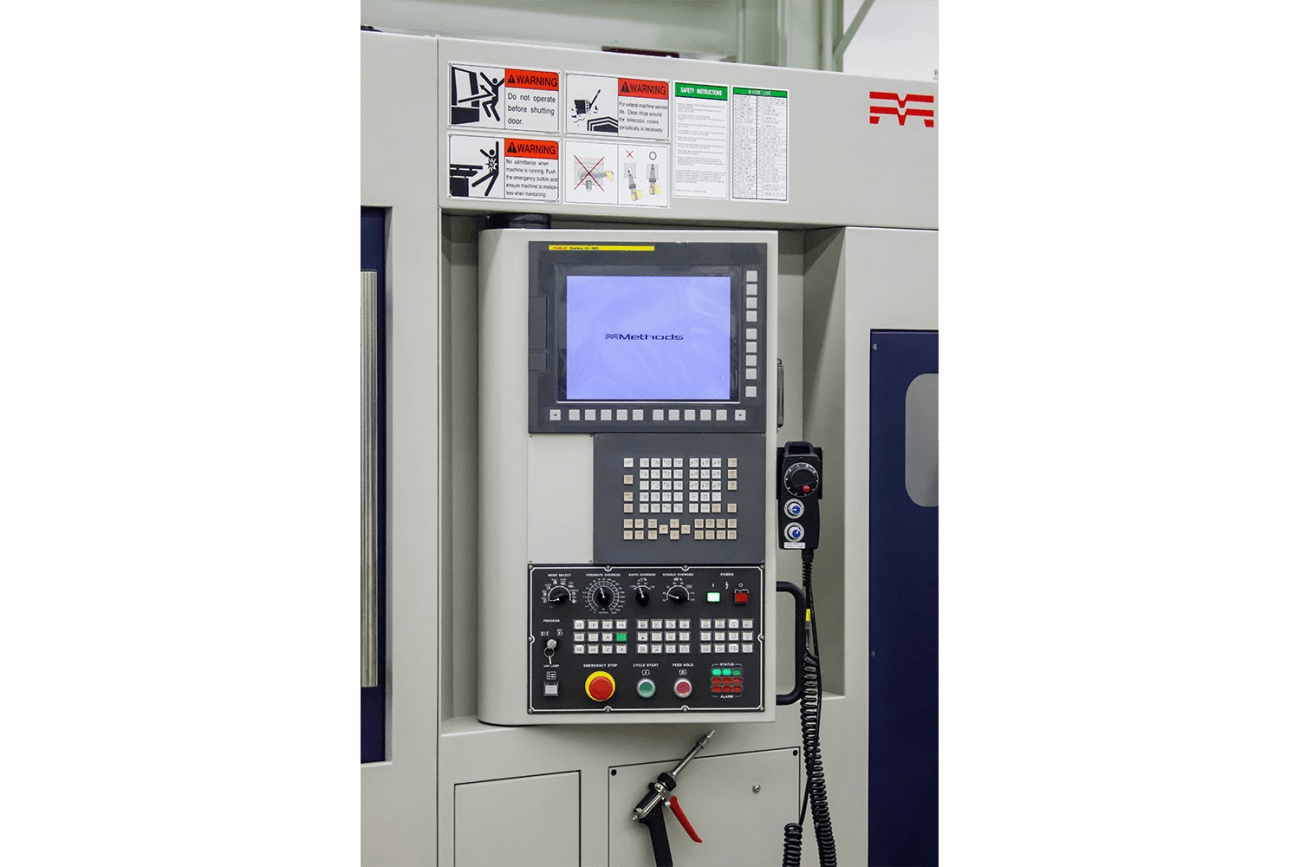

Machine Control


Click to watch video
Click to watch video
Click to watch video
Click to watch video


Manifold Block

Material: 6061 Aluminum
Cut Type: Milling, Drilling, Tapping
