The KMH-300A Series offer an integrated full rotary B-Axis and a reliable FANUC Oi-MF control with a 15 in. LCD screen. The machine features excellent chip evacuation and easy access for set-up / maintenance. A spindle oil cooling system and coolant-through ball-screws are standard.

The KMH-300A has a compact footprint of 140 in. depth x 107 in. width including the chip conveyor.

Request Information

Or call 1-877-668-4262

Download Brochure
kiwa methods kmha300a right angled new control

Product Details

Features & Benefits

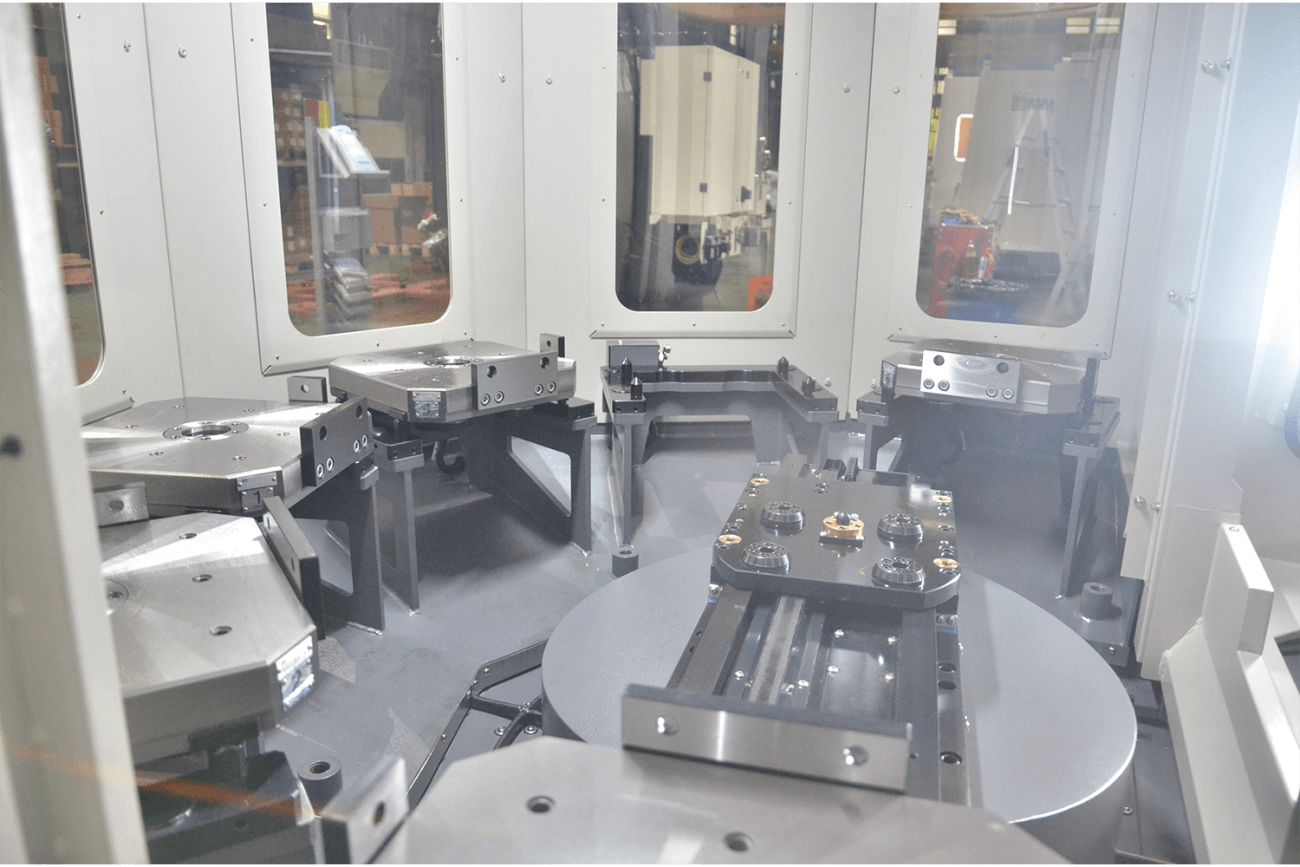

  • Dual 320mm Pallets
  • Roller Guide Ways
  • 20HP/12,000rpm Direct Drive
  • Dual Contact Spindle 40 Taper

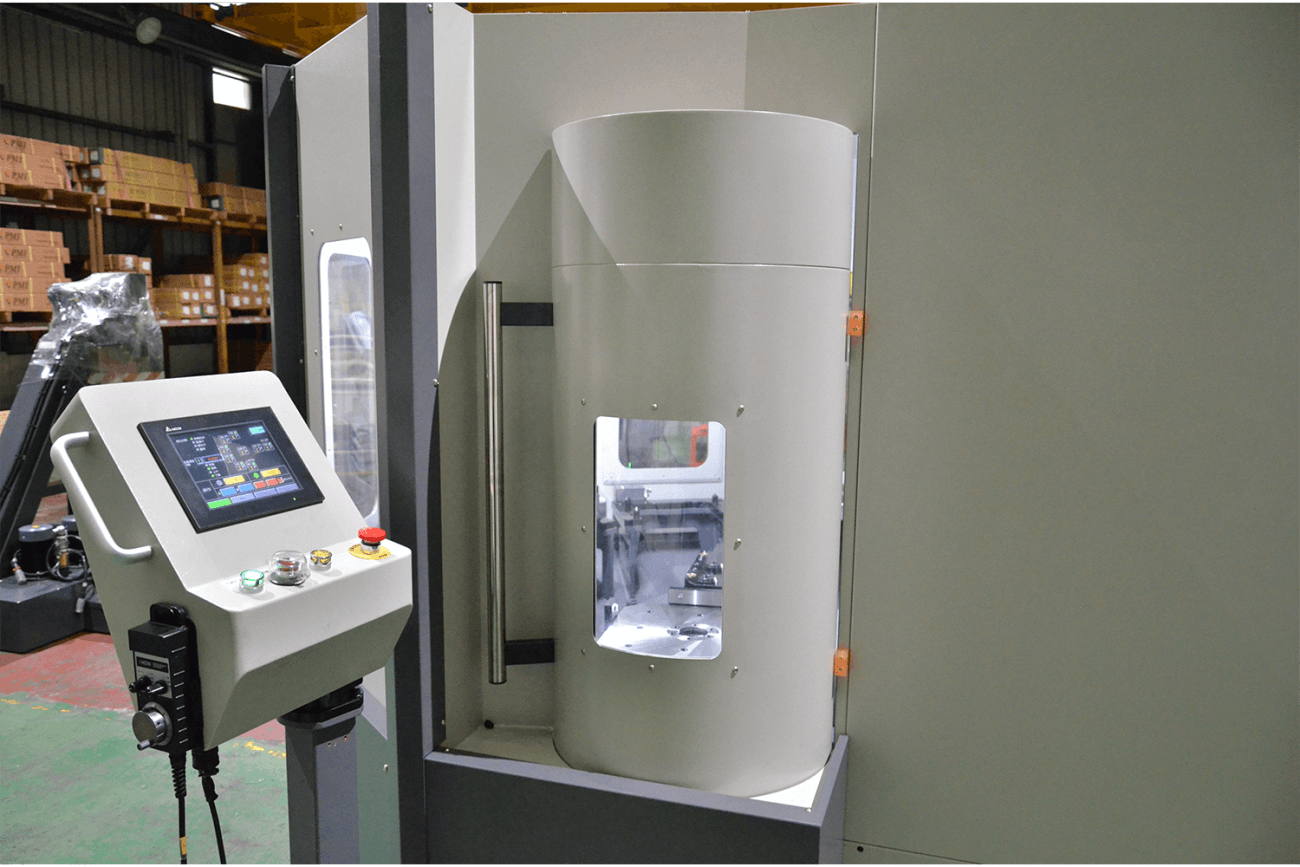

  • 15” Fanuc LCD Screen
  • Coolant Through Ballscrews (CTB)

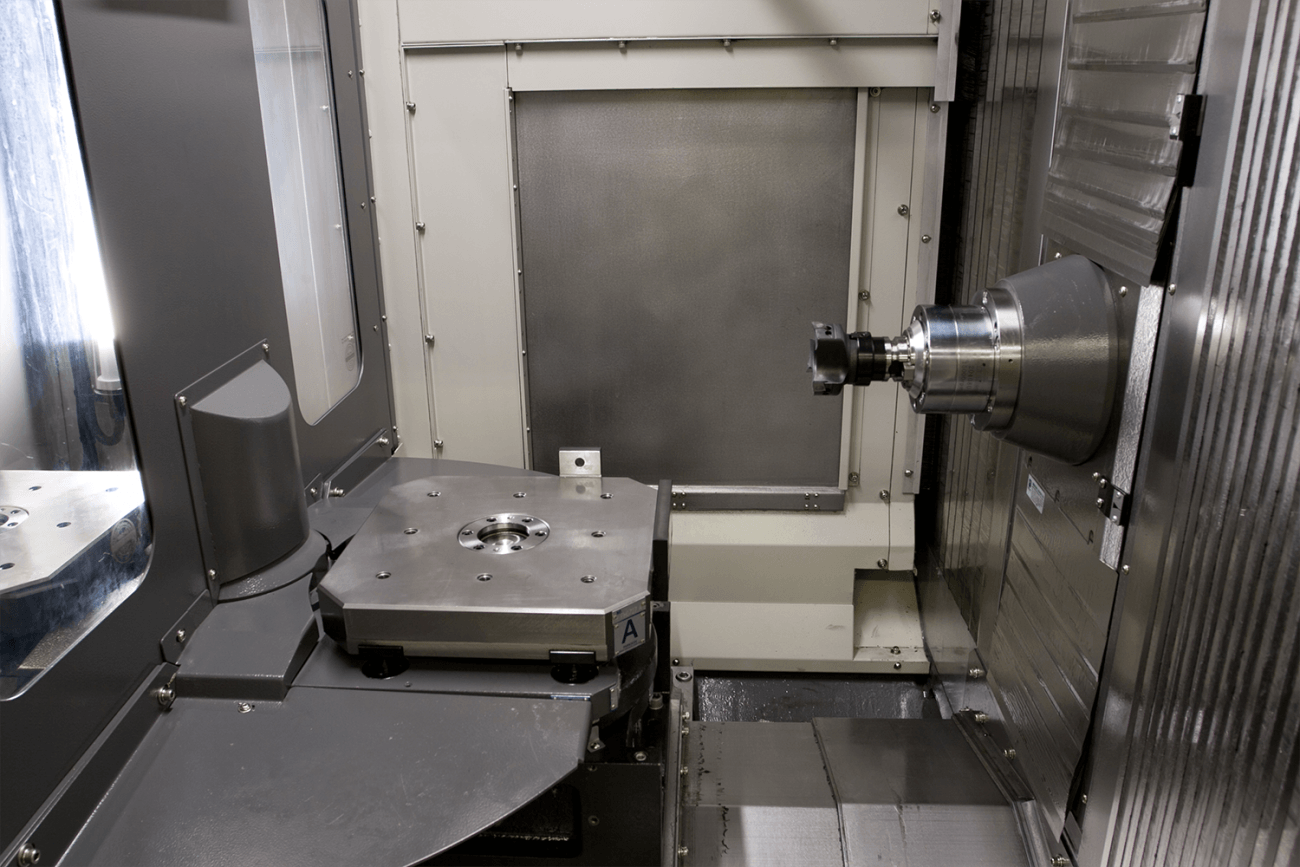

  • Integrated Full Rotary B-Axis
  • Excellent Chip Evacuation
  • Easy Access for Setup & Maintenance.

Technical Data


X-Axis Travel
18.1 (460) in (mm)
Y-Axis Travel
18.1 (460) in (mm)
Z-Axis Travel
13.7 (350) in (mm)
4th Axis Travel (Rotary Table)
0-360 degrees


Pallet Surface to Spindle Center
2.36-20.4 (60-520) in (mm)
Pallet Center to Spindle Nose
2.36-16.1 (60-409) in (mm)
Pallet Size
12.9x12.9 (330x330) in (mm)
Pallet Load Capacity
550 (250) lbs (kg)
Max. Workpiece Size
16.9x18.7 (430x475) in (mm)
Pallet change Time
8 sec

Feed Rate

X-Axis Rapid Traverse
1968 (50) in/min (m/min)
Y-Axis Rapid Traverse
1968 (50) in/min (m/min)
Z-Axis Rapid Traverse
1968 (50) in/min (m/min)
4Th Axis
41 rpm
Cutting Feed (X/Y/Z)
787 (20) in/min (m/min)


Spindle Power
20 HP
Spindle Speed
12000 rpm (opt)
Spindle Taper
Cat 40 Taper -


Standard Number of Tools
30 std
Maximum Tool Weight
17.6 (8) lbs (kg)
Maximum Tool Length
12.6 (320) in (mm)
Maximum Tool Diameter
ø 3.14 (80) in (mm)
Maximum Tool Diameter- No Adjacent Tool
6.29 (160) in (mm)
Tool Changing Time- Tool to Tool
2.5 sec


Coolant Tank Capacity
80 (303) gal (L)
Machine Weight
13889 (6300) lbs (kg)
Machine Control
